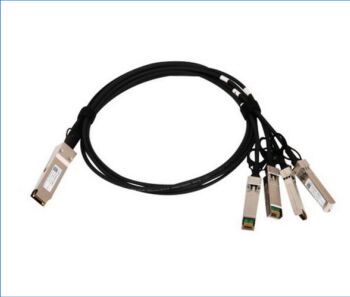

TKQ-DAC4A-3492Cx QSFP+ to 4 SFP+ Copper Cable Assembly
商品の詳細:
| 起源の場所: | 中国、深Shenzhen |
| ブランド名: | DF/OEM/Nuetral |
| 証明: | CE/ROHS/REACH/ISO9001/ISO14001 |
| モデル番号: | TKQ-DAC4A-3492Cx |
お支払配送条件:
| 最小注文数量: | 交渉可能 |
|---|---|
| 価格: | negotiable denpend on QTY |
| パッケージの詳細: | ブリスターボックス+カートン |
| 受渡し時間: | 5~9 営業日 QTY に依存する |
| 支払条件: | ウェスタンユニオン,T/T,MoneyGram/Paypal |
| 供給の能力: | 1000pcs/日 |
|
詳細情報 |
|||
| 製品名: | TKQ-DAC4A-3492Cx QSFP+ から 4 SFP+ 銅線ケーブル アセンブリ | 電源電圧: | -0.3 3.6 V |
|---|---|---|---|
| 電源電流: | 750 - ミリアンペア | 総電力消費量: | 2.0 W |
| 相対湿度 (結露なきこと): | 85% | 動作ケース温度: | -5～75℃ |
| 差動データ出力スイング: | -40〜125°C | 保証: | 1年間、永久保守 |
| ファイバーブランド: | コーニング,YOFC,OFS,ドラカ | ||
| ハイライト: | QSFP+ to SFP+ copper cable,QSFP+ SFP+ cable assembly,QSFP+ 4 SFP+ transceiver cable |
||
製品の説明
The TKQ-DAC4A-3492Cx QSFP+ to 4 SFP+ Copper Cable Assembly provides IT professionals with a cost-effective interconnect solution for merging 40G QSFP and 10G SFP+ enabled host adapters, switches, and servers.
This splitter cable connects an available QSFP port on a 40Gb/s rated switch to feed up to four upstream 10GbE-SFP+ enabled switches. Each cable features a single QSFP connector (SFF-8436) rated for 40Gb/s on one end and four SFP+ connectors (SFF-8431), each rated for 10Gb/s, on the other end.
QSFP+ copper direct-attach cables are ideal for short-distance connections and offer a highly cost-effective way to establish 40-Gigabit links between QSFP+ ports within racks and across adjacent racks. These cables support 40GbE and InfiniBand standards to maximize performance in data center and high-performance computing applications.
- InfiniBand SDR, DDR
- Ethernet 1G, 10G
- FibreChannel
- Rack-to-Rack, Shelf-to-Shelf Interconnect
- Networking
- Storage
- Hubs, switches, routers, servers
- Supports 9.95Gb/s to 10.3Gb/s data rates
- Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
- Single 3.3V Supply
- Up to 10km on 9/125um SMF
- A:1270nm DFB Laser transmitter, 1330nm receiver
- B:1330nm DFB Laser transmitter, 1270nm receiver
- Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW
- SFP+ MSA SFF-8431 Compliant
- Digital Diagnostic SFF-8472 Compliant
- RoHS compliant and Lead Free
- Operating case temperature: Standard: 0 ~ 70 °C
- Connector A: (1) QSFP 40.0 Gbps Rated Connector (SFF-8436 Compliant)
- Connector B: (4) SFP+ 10.0 Gbps Rated Connectors (SFF-8431 Compliant)
- Economically Links up a QSFP port with an Upstream 10GbE-SFP+ Switch
- Protocol agnostic support of 40GbE, QDR InfiniBand, SAS & Fiber Channel
- Up to 10.3125 Gbps transfer rate per SFP+ channel (40 Gbps aggregate)
- Robust Zinc die-cast SFP+ & QSFP connectors with pull-to-release latching
- Bridge the gap between your 10G and 40G capable switches/host adapters
- Low cross-talk and pair-to-pair skew maintains signal integrity
- Fully compliant to the latest SFP+ & QSFP MSA (Multi-Source-Agreement)
- Supports all current 10-Gigabit Ethernet and 40-Gigabit Ethernet standards
- Designated form factor and electrical compliance for QDR InfiniBand
- The perfect direct attached storage splitter cable for Fiber Channel & SAS
- Enjoy a reduced power budget and lower port cost compared to optical
- Fully RoHS compliant for environmental protection
Stress or conditions exceeding the specified range may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those listed in the operational sections of this specification is not applied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
- 25+ years of manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years of experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany-imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
