GYTS-48X 48 Core Outdoor Fiber Optic Cable, Loose Tube Stranded, Steel Central Strength Member, Double-Sided Coated Steel Tape Armored, PE Outer Sheath, Duct/Aerial/Direct Burial
商品の詳細:
| 起源の場所: | 深センと中山、中国 |
| ブランド名: | Takfly/OEM/Nuetral |
| 証明: | CE/ROHS/CPR EN50575/ISO9001 /ISO14001 |
| モデル番号: | GYTS-48X |
お支払配送条件:
| 最小注文数量: | 1 |
|---|---|
| 価格: | can be negotiated |
| パッケージの詳細: | リール上 + 外側のカートン |
| 受渡し時間: | 5〜9営業日は数量によって異なります |
| 支払条件: | T/T、ウェスタンユニオン、ペイパル |
| 供給の能力: | 500 - 1000KM/月 |
|
詳細情報 |
|||
| ハイライト: | 48 core outdoor fiber optic cable,steel armored fiber optic cable,duct aerial burial fiber cable |
||
|---|---|---|---|
製品の説明
GYTS-48X 48 Core Outdoor Fiber Optic Cable
Stranded loose tube light-armored optical cable suitable for outdoor duct, aerial (with supporting messenger wire), or direct burial installation.
Cable Construction & Design
Optical fibers are placed into high-modulus loose tubes filled with waterproof compound. A metal strength member with polyethylene copolymer coating provides excellent tensile strength and corrosion resistance. Tubes are stranded around the central strength member to form a compact, round cable core. The core is wrapped with double-sided plastic-coated steel tape (PSP) armor and extruded with UHMWPE outer sheath.

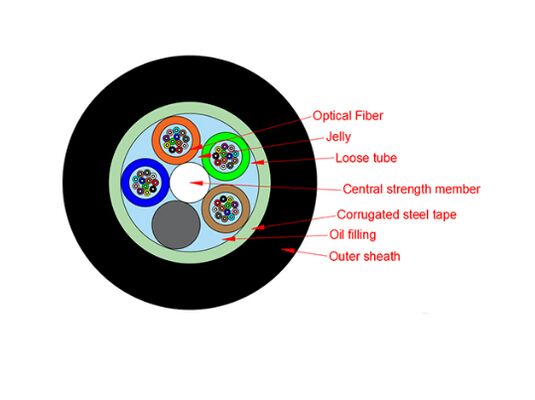

Cable Construction Diagram
Technical Specifications
Key Features
- High-modulus loose tubes - Excellent thermal performance and fiber protection
- Full-core water blocking - Dual protection from tube compound and core compound
- Metal central strength member - High tensile strength
- Polyethylene copolymer coating - Enhanced corrosion and aging resistance
- PSP steel tape armor - Excellent crush resistance, rodent protection, and impact resistance
- UHMWPE outer sheath - High abrasion resistance, aging resistance, and weather resistance
- Compact and round cable core - Easy installation and splicing
Applications
- Duct installation (primary application)
- Aerial installation (with supporting messenger wire - non-self-supporting)
- Direct burial (light armor, suitable for general soil conditions)
- Tunnel or cable trench installation
- Metropolitan area networks, access networks, base station interconnection
Why Choose TAKFLY?
26 Years of Manufacturing Experience in fiber optic products
- Experienced Assembly Team: More than 80 assembly workers with 6+ years of experience
- Strong R&D Capability: More than 10 R&D engineers
- Advanced Production Equipment: 16 sets of German imported injection machines and 16 production lines
- Comprehensive Testing Facilities: More than 30 sets of testing instruments including OTDR, ILD, VFL, RL, IL, tension strength testers, crush resistance testers, power meter testers, and light checkers
- OEM Branding Accepted: Custom logo/branding available
Quality Control Process
- Incoming inspection: Spot check of raw materials before production
- In-process inspection: Full inspection at every individual process completion
- Pre-packaging inspection: Full inspection of finished products before packing
- Pre-shipping inspection: Spot check before shipping
Industry Participation
Active participation in major industry events including OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, and Source Electronics Exhibition.
Delivery Information
Samples: 1-3 working days
Mass production orders: 3-7 working days
Packaging: Plastic bag, carton, and pallet options available according to your requirements
