2-144 Core Mini Optical Cable – 250μm Tight Buffer, Aramid Yarn, FRP Core (26-144C), PVC/LSZH Jacket, Indoor Multi-Fiber Distribution Cable
商品の詳細:
| 起源の場所: | 深センと中山、中国 |
| ブランド名: | Takfly/OEM/Nuetral |
| 証明: | CE, ROHS, CPR EN50575,ISO9001 &ISO14001 |
| モデル番号: | MINI光ケーブル |
お支払配送条件:
| 最小注文数量: | 1 |
|---|---|
| 価格: | can be negotiated |
| パッケージの詳細: | リール上 + 外側のカートン |
| 受渡し時間: | 5〜9営業日は数量によって異なります |
| 支払条件: | T/T、ウェスタンユニオン、ペイパル |
| 供給の能力: | 500 - 1000KM/月 |
|
詳細情報 |
|||
| ハイライト: | 2-144 core fiber optic cable,indoor multi-fiber distribution cable,tight buffer aramid yarn cable |
||
|---|---|---|---|
製品の説明
2-144 Core Mini Optical Cable
250μm Tight Buffer, Aramid Yarn, FRP Core (26-144C), PVC/LSZH Jacket, Indoor Multi-Fiber Distribution Cable
Product Description
2-24 core mini-optic cables utilize 250μm color fiber as the optical communication medium. The color fibers are wrapped in a layer of aramid yarn as a force strengthening unit, coated with either polyvinyl chloride (PVC) or low-smoke halogen-free material (LSZH) jacket.
26-144 core mini-optic cables feature a subunit design with 250μm color fiber and aramid yarn reinforcement, combined with a 3.0mm inner sheath. A fiber-reinforced plastic (FRP) positioned at the core center serves as non-metal strengthening, surrounded by subunits and protected by PVC or LSZH material sheath.
Product Applications
- Optical fiber active connection jumper or tail fiber
- Routing and patching for data center and indoor communication network locations
- Interconnection of instruments and communication equipment
Product Characteristics
- Coated fiber is easy to peel off
- Aramid yarn reinforced element provides excellent tensile resistance
- Multi-core number with small outer diameter and non-metal center strengthening structure
- Excellent flame-retardant performance with low induced attenuation within operating temperature range
Optical Parameters and Properties

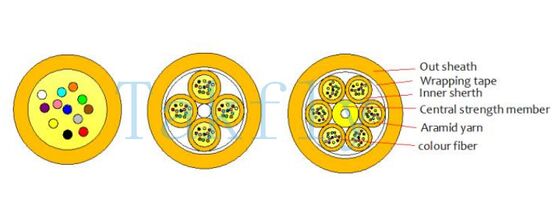

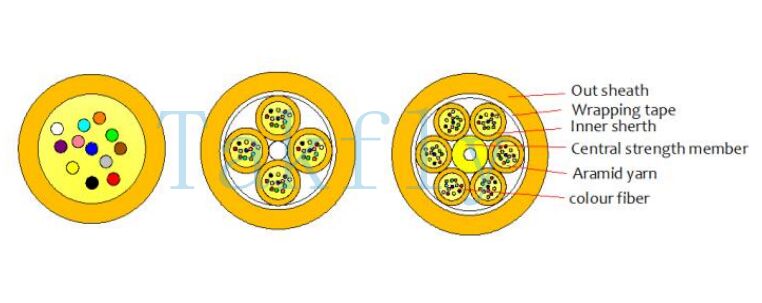

Product Structure
Why Choose TAKFLY?
26 Years of Manufacturing Experience in Fiber Optic Products
Experienced Assembly Team: More than 80 assembly workers with 6+ years of experience
Strong R&D Capability: More than 10 R&D engineers
Advanced Production Equipment: 16 sets of German imported injection machines and 16 production lines
Comprehensive Testing Facilities: More than 30 sets of testing instruments including OTDR, ILD, VFL, RL, IL, tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
OEM Branding Accepted: Custom logo/branding available
Quality Control Process
- Incoming inspection: Spot check of raw materials before production
- In-process inspection: Full inspection at every individual process completion
- Pre-packaging inspection: Full inspection of finished products before packing
- Pre-shipping inspection: Spot check before shipping
Exhibition Participation
Source Electronics Exhibition, etc.
Certifications & Industry Events
OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, China.
Delivery Information
Samples: 1-3 working days
Mass production orders: 3-7 working days
Packaging: Plastic bag, carton, and pallet options available according to your requirements.
