LC/UPC to SC/APC Fiber Optic Patch Cord with 3 Years Warranty 100N Lateral Pressure and >10000N Tensile Strength

LC/UPC to SC/APC Fiber Optic Patch Cord with 3 Years Warranty 100N Lateral Pressure and >10000N Tensile Strength

商品の詳細:

起源の場所: 中国深Shenzhen
ブランド名: OED/ODM
証明: RoHS, CE, Reach
ドキュメント: LC-FC Patchcord specificati...EN.pdf

お支払配送条件:

最小注文数量: 10
価格: 0.45
パッケージの詳細: 標準輸出用紙箱
受渡し時間: 3~7営業日(数量により異なります)
支払条件: T/T
供給の能力: 5000 PCS/日
ベストプライス 連絡先

詳細情報

型番: LC/UPCパッチコード 接続構造: MPO-MPO
材料の形状: 丸いワイヤー 横方向の圧力が許可されました: 100(n/100mm)<1000(n/100mm)
許可された引張強度: > 10000n コア: マルチコア
シース材料: LSZH、ポリ塩化ビニール ファイバーの種類: OS1、OS2、OM1、OM2、OM3、OM4
コネクタタイプ: SC、FC、ST、LC、ODC、IPLC、PDLC、MTRJ、MPO、MTP、MU、SMA ケーブルカラー: イエロー、ブルー、グリーン、アクア、レッド、ベージュ、パープル
挿入損失: ≤0.3dB 返品損失: 45 dB以上
動作波長: 1310、1510 nm 動作温度: -40〜75ºC
保管温度: -45〜85ºC
ハイライト:

3 Years Warranty Fiber Optic Patch Cord

,

100N Lateral Pressure Fiber Optic Jumper

,

>10000N Tensile Strength Fiber Optic Cable

製品の説明

LC/UPC to SC/APC Customized Optic Equipment Fiber Optic Patch Cord
A high-performance fiber optic patch cord designed for connecting devices in signal routing applications, available in both singlemode and multimode configurations.
Key Features
  • Low insertion loss and high return loss
  • MT based Multi-fiber Connector supporting up to 12 fibers
  • Exceptional reliability and stability
  • Excellent repeatability and exchangeability
Applications
  • Testing equipment
  • FTTX+LAN networks
  • Optical fiber CATV systems
  • Optical communication systems
  • Telecommunication infrastructure
Technical Specifications
Parameter Unit FC, SC, LC/ Armoured ST, MU MT-RJ, MPO E2000
Insertion loss (typical) dB ≤0.3 ≤0.3 ≤0.3 ≤0.3
Return loss dB ≥45 ≥45 ≥55 ≥75
Operating wavelength nm 1310, 1510
Exchangeability dB ≤0.2
Vibration dB ≤0.2
Operating temperature ºC -40~75
Storage temperature ºC -45~85
Cable diameter mm φ3.0, φ2.0, φ0.9

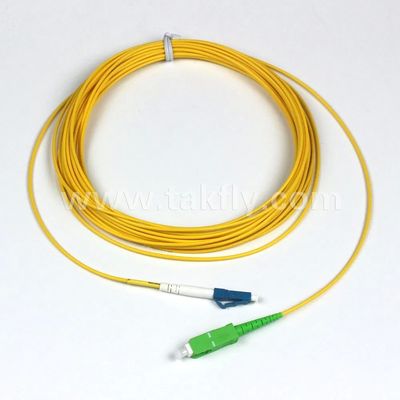

Product Images
LC/UPC to SC/APC Fiber Optic Patch Cord with 3 Years Warranty 100N Lateral Pressure and >10000N Tensile Strength 0 LC/UPC to SC/APC Fiber Optic Patch Cord with 3 Years Warranty 100N Lateral Pressure and >10000N Tensile Strength 1 LC/UPC to SC/APC Fiber Optic Patch Cord with 3 Years Warranty 100N Lateral Pressure and >10000N Tensile Strength 2
