詳細情報 |
|||
| 接続構造: | SC-SC | 材料の形状: | 丸いワイヤー |
|---|---|---|---|
| 横方向の圧力が許可されました: | 100（n/100mm）<1000（n/100mm） | 許可された引張強度: | 1000n <10000n |
| コア: | 二重中心 | シース材料: | PVCまたはLSZH |
| ファイバーコア: | 8,12,20,24 | ファイバータイプ: | OS1、OS2、OM1、OM2、OM3、OM4 |
| ケーブルジャケットの色: | 黄色、青、緑、アクア、赤、マゼンタ、ベージュ | 挿入損失: | ≤0.3db（典型） |
| 返品損失: | 45 dB以上 | 動作波長: | 1310、1510 nm |
| 交換可能性: | ≤0.2dB | 動作温度: | -40〜75ºC |
| ケーブルの直径: | φ3.0、φ2.0、φ0.9mm | ||
| ハイライト: | 1000N Tensile Strength Fiber Optical Patch Cord,-40~75 Operating Temperature Fiber Optic Patch Cable,SC/LC/ST/FC Optical Patch Cord |
||
製品の説明
SC/LC/ST/FC SM/MM Simplex/Duplex Fiber Optical Patch Cord
A high-performance fiber optic patch cord designed for reliable signal routing between devices. The MPO connector enables high-density interconnection using MT Ferrule with Fiber Ribbon technology.
Key Features
- Low insertion loss and high return loss for optimal signal integrity
- MT based multi-fiber connector supporting up to 12 fibers
- Exceptional reliability and stability in operation
- Excellent repeatability and exchangeability
Applications
- Testing equipment and measurement systems
- FTTX and LAN network infrastructure
- Optical fiber CATV distribution
- Optical communication systems
- Telecommunication networks
Technical Specifications
| Parameter | Unit | FC, SC, LC/ Armoured | ST, MU | MT-RJ, MPO | E2000 |
|---|---|---|---|---|---|
| Insertion loss (typical) | dB | ≤0.3 (PC), ≤0.2 (UPC), ≤0.3 (APC) | ≤0.2 (PC), ≤0.3 (UPC) | ≤0.2 (PC), ≤0.3 (APC) | ≤0.3 |
| Return loss | dB | ≥45 (PC), ≥50 (UPC), ≥60 (APC) | ≥30 (PC), ≥45 (UPC) | ≥50 (PC), ≥55 (UPC), ≥75 (APC) | ≥35 |
| Operating wavelength | nm | 1310, 1510 | |||
| Exchangeability | dB | ≤0.2 | |||
| Vibration | dB | ≤0.2 | |||
| Operating temperature | ºC | -40~75 | |||
| Storage temperature | ºC | -45~85 | |||
| Cable diameter | mm | φ3.0, φ2.0, φ0.9 | |||

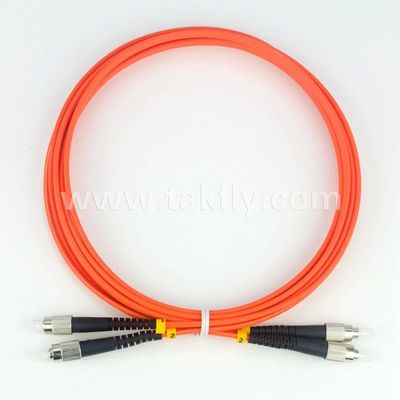

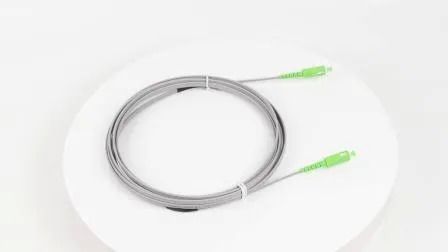

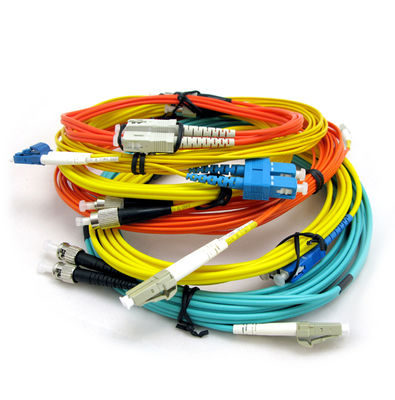

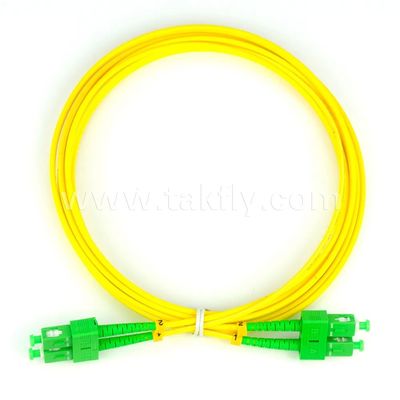

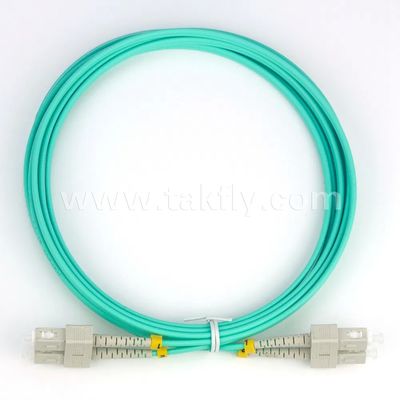

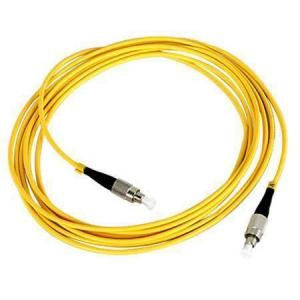

Product Images
