詳細情報 |
|||
| 接続構造: | FC-SC | 横方向の圧力が許可されました: | > 1000（n/100mm） |
|---|---|---|---|
| 許可された引張強度: | 1000n <10000n | コア: | シングルコア |
| シース材料: | PVC | ファイバータイプ: | 0.9mm 2.0mm 3.0mm |
| 繊維の長さ: | 1m 3m 5m 10mまたはカスタマイズ | コネクタ: | SCへのFC |
| 挿入損失: | <0> | 返品損失: | ≥50dB |
| 再現性: | ≤0.1 | 耐久性: | <0.1dBの典型的な変化、1000交配 |
| 交換可能性: | ≤0.2dB | 動作温度: | -20°C〜 +70°C |
| 保管温度: | -40°C | +80°C | ||
| ハイライト: | Simplex Fiber Optic Patch Cord,PVC Sheath Fiber Optic Cable,Customized Length Optical Patch Cord |
||
製品の説明

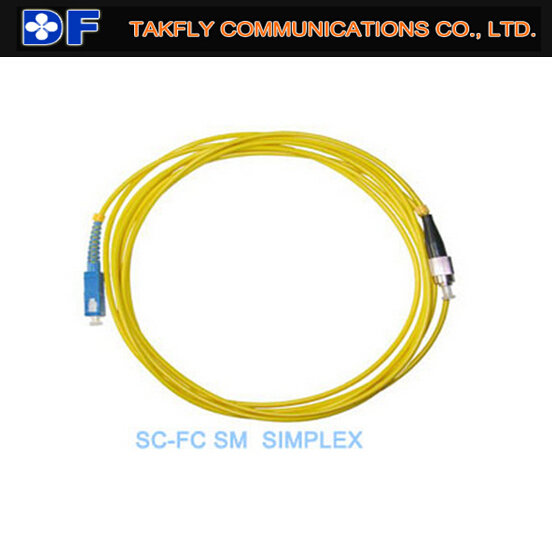

SC to FC SM Simplex Fiber Optic Patch Cord
High-performance SC to FC single mode simplex fiber optic patch cord designed for equipment jumper cables, cross connects, and work area connections. Manufactured using OFNR riser grade cable and 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards.
Available Specifications
- Length options: 1.1m, 3m, 5m, 10m
- Cable diameter: 2.0mm or 3.0mm loose tube
- End face options: UPC or APC polish
Key Features
- Excellent durability and exchangeability
- High temperature stability
- Low insertion loss and back reflection loss
- Superior quality standard PC/UPC/APC polishing
- Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standards
- RoHS compliant, green production
- High stability in various environments
- Custom orders available
Technical Specifications
| Parameter | SM(PC) | SM(UPC) | SM(APC) | MM(PC) |
|---|---|---|---|---|
| Insertion loss | <0.3dB | ≤0.2dB | <0.3dB | <0.3dB |
| Return loss | ≥50dB | ≥50dB | ≥65dB | ≥35dB |
| Repeatability | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 |
| Durability | <0.1dB typical change, 1000 mating | |||
| Interchangeability | ≤0.2dB | |||
| Vibration | ≤0.2dB | |||
| Operating Temperature | -20°C ~ +70°C | |||
| Storage Temperature | -40°C ~ +80°C | |||
| Cable Diameter | 3.0mm, 2.0mm, 0.9mm | |||
All patch cords are available in both multimode (62.5/125µ M and 50/125µ M) and single mode cable-types, in duplex and simplex versions.
