詳細情報 |
|||
| 接続構造: | SC | 材料の形状: | 丸いワイヤー |
|---|---|---|---|
| 側圧: | > 1000（n/100mm） | 抗張力: | > 10000n |
| コアカウント: | 12コア | シース材料: | PVC |
| コネクタタイプ: | Sc、LC、FC、St など | ジャケットOD: | 0.9/2.0/3.0mm |
| ポーランド型: | UPC/APC | フェルール材料: | ジルコニアセラミック |
| 挿入損失: | ≤0.3dB | 返品損失: | 45 dB以上 |
| 動作波長: | 1310、1510 nm | 動作温度: | -40~80 °C |
| 保管温度: | -45～85℃ | ||
| ハイライト: | 900um Tight Buffer Fiber Optic Pigtail,2 Years Warranty Optical Pigtail,1-5 Days Delivery Fiber Pigtail |
||
製品の説明

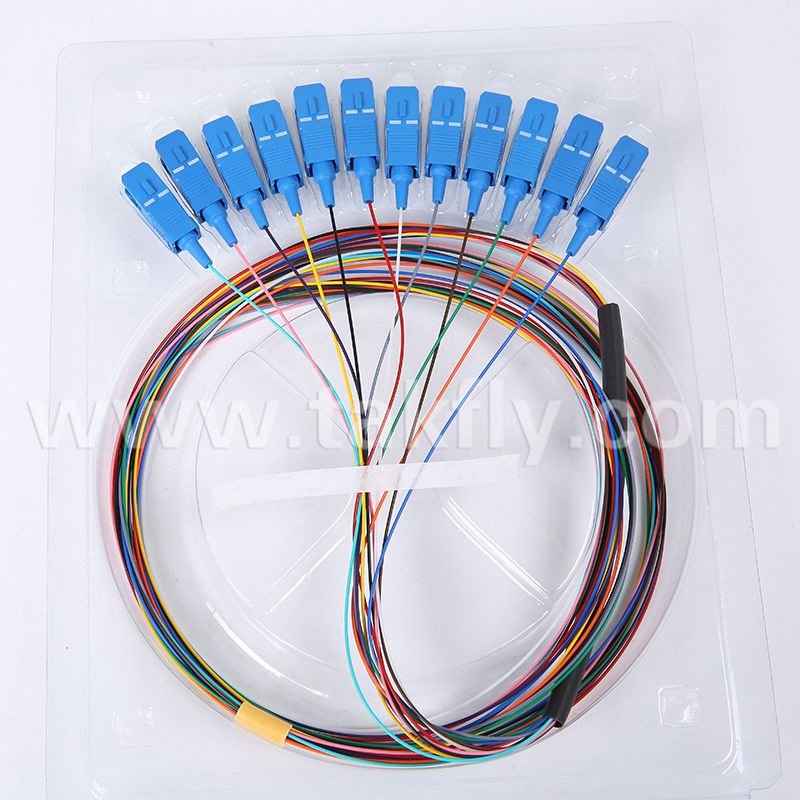

12 Core SC/UPC Single-Mode Color Fiber Optic Pigtail
Fiber Optic Pigtails provide an optimal solution for fusion splicing within fiber optic enclosures. Featuring low insertion loss and low backreflection, these color-coded 900um tight buffer pigtails are designed for high fiber count splicing applications. The industry-standard color coding simplifies enclosure layout and organization.
Specifications
| Parameter | Unit | FC, SC, LC | ST, MU | MT-RJ, MPO | E2000 |
|---|---|---|---|---|---|
| Insertion loss (typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Operating wavelength | nm | 1310, 1510 | |||
| Exchangeability | dB | ≤0.1 | ≤0.1 | ≤0.2 | ≤0.2 |
| Vibration | dB | ≤0.2 | |||
| Operating temperature | °C | -40~80 | |||
| Storage temperature | °C | -45~85 | |||
| Cable diameter | mm | φ3.0, φ2.0, φ0.9 | |||
Fiber Optic Pigtail Color Coding
1. Blue
2. Orange
3. Green
4. Brown
5. Grey
6. White
7. Red
8. Black
9. Yellow
10. Purple
11. Pink
12. Aqua
Key Features and Applications
- Color-coded fiber jacket for easy identification and management
- Low insertion loss and back reflection loss
- Clearly identifiable fiber buffer colors under all lighting conditions
- Reduces installation time and prevents incorrect patching
Applications
- Data centers and premise installations
- Telecommunication networks
- Ethernet, fiber channel, ATM, LAN, MAN and WAN
- Data communication systems
- Indoor applications
