詳細情報 |
|||
| 接続構造: | SC-SC | 材料の形状: | 丸いワイヤー |
|---|---|---|---|
| 横方向の圧力が許可されました: | 100（n/100mm） | 許可された引張強度: | 100N <1000N |
| コア: | シンプルな二重巻きQuard | シース材料: | PVC、LSZH |
| ファイバーモード: | シングルモード | ケーブルの直径: | 0.9mm、2.0mm、3.0mm |
| 動作波長: | 1310/1550nm | ケーブルの長さ: | 1m、3m、5m、またはカスタマイズ |
| 動作温度: | -40c〜+80c | 挿入損失: | ≤0.20dB |
| Changeability: | ≤0.20dB | 曲率半径: | 10≤r≥25nm |
| 周波数を挿入してプルします: | > 1000回 | ||
| ハイライト: | SC-SC single mode fiber optic cable,duplex fiber optic patch cable 0.9mm,single mode fiber optic cable 3.0mm |
||
製品の説明

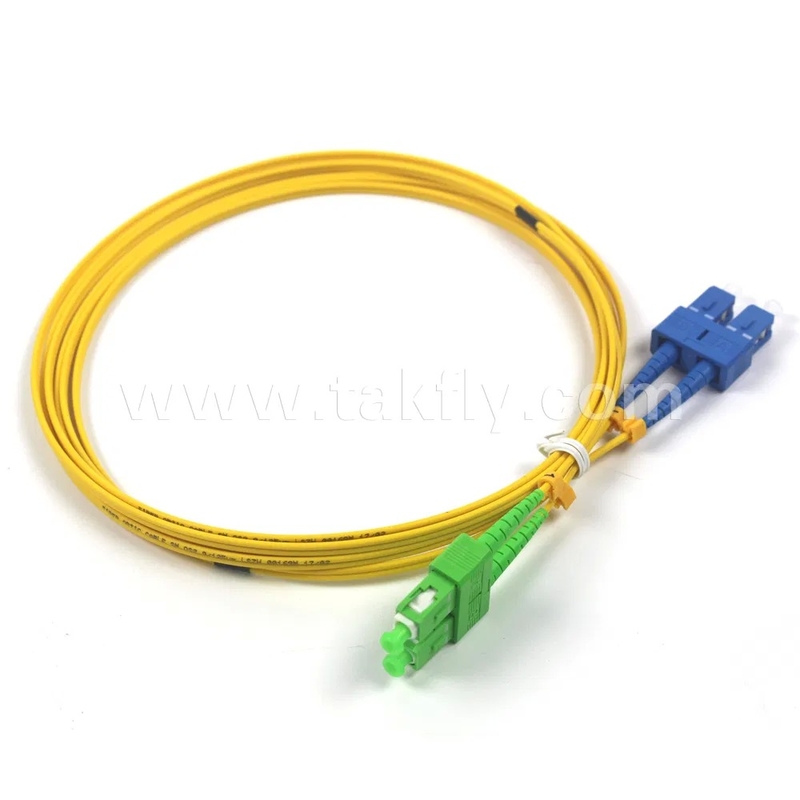

Sc/APC-Sc/Upc Single Mode Duplex Fiber Optic Patch Cable
The Sc/APC-Sc/Upc Single Mode Duplex Fiber Optic Patch Cable is a high-performance patch cord designed for connecting devices in fiber optic networks. These ISO/IEC 11801 compliant cables feature SC/APC connectors for reliable signal transmission.
Key Features
- Low insertion loss and high return loss
- Excellent exchangeability between connectors
- Supports 10 Gigabit data transmission rates
- Available with multiple connector types: FC, LC, SC, MU, ST, MTRJ, E2000, MPO
- Polishing options: PC, UPC and APC
- Compliant with IEC standards
Applications
- Telecommunication networks
- Fiber optic communication systems
- CATV, LAN, MAN, WAN networks
- Test & Measurement equipment
- Optical access networks
Technical Specifications
| Parameter | Unit | Standard & Requirement |
|---|---|---|
| Insertion loss | dB | ≤0.20 |
| Changeability | dB | ≤ 0.20dB |
| Radius of curvature | nm | 10 ≤ r ≥25 |
| Curvature eccentricity | um | <50 |
| Fiber core undercut | nm | <50 |
| Insertion loss change | dB | < 0.1 |
| Return loss change | dB | < 5 |
| Insert & pull out (Max.) | kg | 2 |
| Insert and pull frequency | Time | > 1000 |
| Operating temperature | °C | -40 ~ +85 |

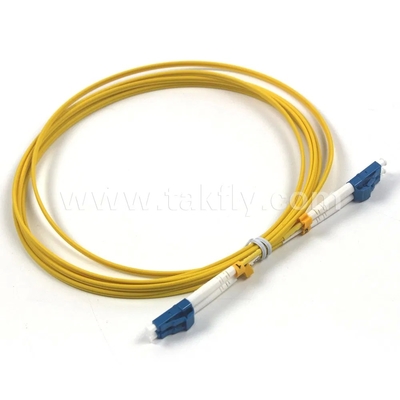

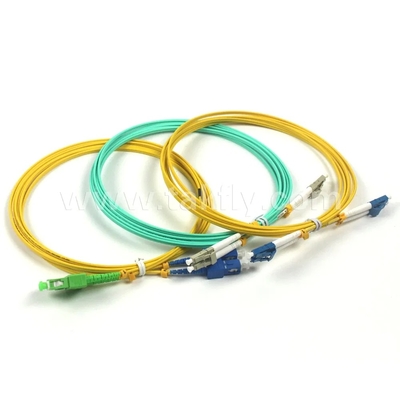

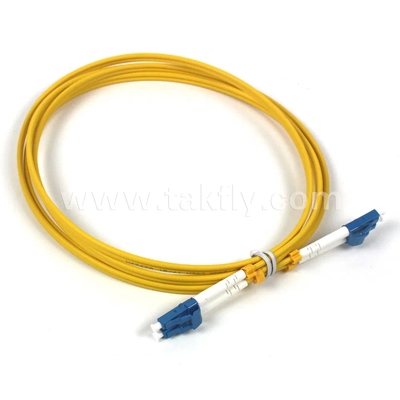

Product Images
