詳細情報 |
|||
| 接続構造: | SC | 材料の形状: | 丸いワイヤー |
|---|---|---|---|
| 側圧: | > 1000（n/100mm） | 抗張力: | > 10000n |
| コアタイプ: | シングルコア | シース材料: | PVCまたはLSZH |
| コネクタタイプ: | SC、FC、ST、LC、ODC、IPLC、PDLC、MTRJ、MPO、MTP、MU、SMA | 長さ: | 3m、5m、10、またはカスタマイズ |
| 材料: | LSZH、PVC、PE、PU | ファイバータイプ: | G652D、G655、G657A1、G657A2 |
| 繊維OD: | 125±0.2um | 挿入損失: | 0.2db（典型）、0.3db（max） |
| 返品損失: | PC：50dB、UPC：55dB、APC：65dB | 動作温度: | -40°C〜+85°C |
| 保管温度: | -40°C〜+85°C | ||
| ハイライト: | 3.0mm SC fiber optic patch cord,LSZH G652D single core cable,3m SC fiber optic cable |
||
製品の説明

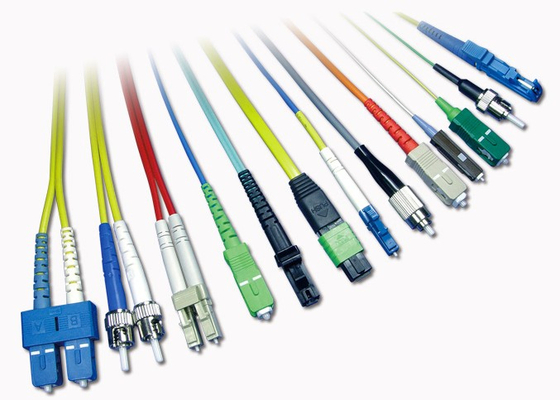

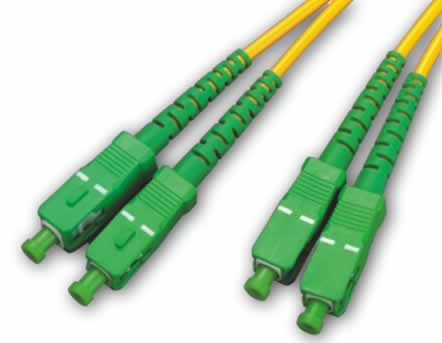

Shenzhen Factory SM MM Simplex Duplex LC/SC/ST/FC 0.9 2.0 3.0mm Fiber Optic Patch Cord

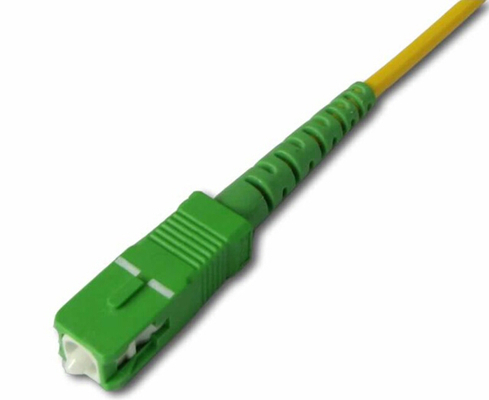

SC-SC fiber patch cord is used to attach one device to another for signal routing. The SC (Subscriber Connector) is a general purpose push/pull style connector featuring a square, snap-in design that latches with a simple push-pull motion and is keyed for proper alignment.
Key Features
- Low insertion loss and high return loss
- High density connection with easy operation
- Excellent reliability and stability
- Superior repeatability and exchangeability
Applications
- Testing equipment
- FTTX+LAN networks
- Optical fiber CATV systems
- Optical communication systems
- Telecommunication infrastructure
Performance Specifications
| Parameter | Unit | SM | MM |
|---|---|---|---|
| Normal Fiber OD | um | 125±0.2 | 125±0.2 |
| Connector Type | SC,FC,ST, E-2000, LC, MU, MTRJ | SC,FC,ST, E-2000, LC, MU, MTRJ | |
| Insertion loss (Typical) | dB | 0.2 | 0.4 |
| Insertion loss (Max) | dB | 0.3 | 0.5 |
| Return Loss (Typical) | dB | PC:50, UPC:55, APC:65 | 35 |
| Mating Durability (500 cycles) | dB | 0.2 | |
| Temperature Stability | dB | 0.3 | |
| Operation Temperature | °C | -40 to +85 | |
| Storage Temperature | °C | -40 to +85 | |
