詳細情報 |
|||
| 接続構造: | LC | 材料の形状: | 丸いワイヤー |
|---|---|---|---|
| 側圧: | > 1000（n/100mm） | 抗張力: | > 10000n |
| コアタイプ: | シングルコア | シース材料: | PVCまたはLSZH |
| 挿入損失: | 0.3dBよりより少し | 返品損失: | 45dB以上 |
| 動作波長: | 1310 1510nm | 動作温度: | -40~75 |
| 保管温度: | -45~85 | ファイバータイプ: | OS1、OS2、OM1、OM2、OM3、OM4 |
| 挿入損失の変化: | < 0.1dB | 損失の変化を返します: | <5db |
| 力を挿入して力を挿入します: | 2kg | ||
| ハイライト: | LC/PC simplex OS2 fiber patch cord,OS2 fiber optic cable 3m,9/125 duplex fiber optic patch cord |
||
製品の説明
LC/PC Simplex OD 2mm SM OS2 3m 9/125 Fiber Optic Patch Cord
A high-performance fiber optic patch cord designed for reliable signal routing between devices. Features LC (Lucent Connector) interface, which offers a compact form factor at half the size of ST connectors.
Key Features
- Low insertion loss and high return loss
- Compact, lightweight design for high-density connections
- Excellent exchangeability between components
- High reliability and stability
- Supports 10 Gigabit data transmission rates
- Multiple connector types available: FC, LC, SC, MU, ST, MTRJ, E2000, MPO
- Polishing options: PC, UPC, and APC
- Compliant with IEC standards
Applications
- Telecommunication networks
- Fiber optic communication systems
- CATV, LAN, MAN, and WAN infrastructure
- Test & Measurement equipment
- Optical access networks
Technical Specifications
| Parameter | Unit | Standard & Requirement |
|---|---|---|
| Insertion loss | dB | ≤0.20 |
| Changeability | dB | ≤ 0.20dB |
| Radius of curvature | nm | 10 ≤ r ≥25 |
| Curvature eccentricity | um | <50 |
| Fiber core undercut | nm | <50 |
| Insertion loss change | dB | < 0.1 |
| Return loss change | dB | < 5 |
| Insert & pull out (Max.) | kg | 2 |
| Insert and pull frequency | Time | > 1000 |
| Operating temperature | ºC | -40~+85 |

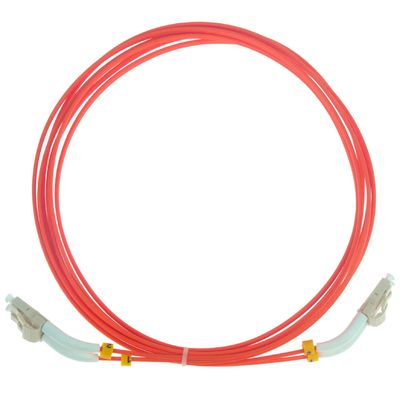

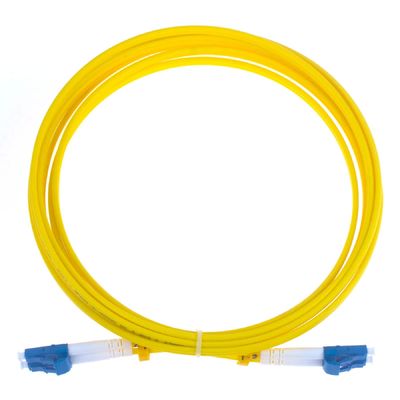

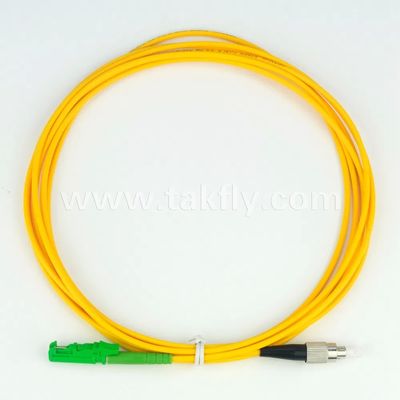

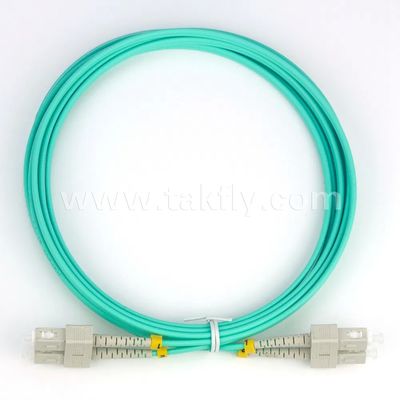

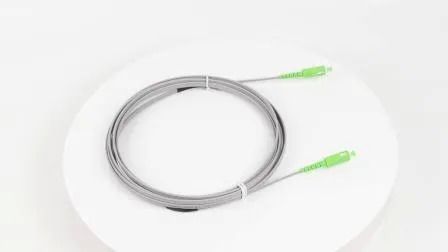

Product Images
