詳細情報 |
|||
| 接続構造: | FC-SC | 材料の形状: | 丸いワイヤー |
|---|---|---|---|
| 横方向の圧力が許可されました: | > 1000（n/100mm） | 許可された引張強度: | > 10000n |
| コア: | シングルコア | シース材料: | PVCまたはLSZH |
| コネクタタイプ: | SC、FC、ST、LC、ODC、IPLC、PDLC、MTRJ、MPO、MTP、MU、SMA | 長さ: | 3m、5m、10、またはカスタマイズ |
| 材料: | LSZH、PVC、PE、PU | ファイバ: | G652D、G655、G657A1、G657A2 |
| ファイバータイプ: | SM、MM | 通常の繊維OD: | 125±0.2um |
| 挿入損失: | 0.2db（典型）、0.3db（max） | 返品損失: | PC：50dB、UPC：55dB、APC：65dB |
| 動作温度: | -40°C〜+85°C | ||
| ハイライト: | SC to FC single mode fiber patch cord,9/125 fiber optic cable with warranty,custom length SC FC patch cable |
||
製品の説明

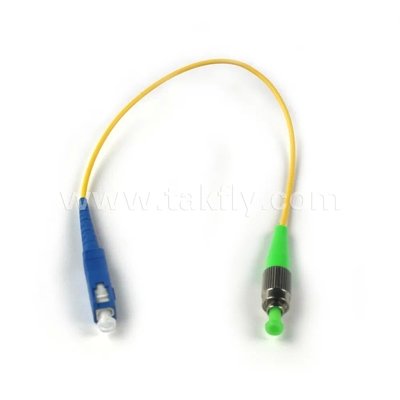

Hotselling SC/UPC to FC/APC Single Mode 9/125 Simplex Optical Fiber Patch Cord
A high-performance fiber optic patch cord designed for reliable signal routing between devices. Features SC to FC/APC connectors with single mode 9/125μm fiber for optimal signal transmission.
Product Details
- SC-SC fiber patch cord configuration
- Subscriber Connector (SC) - general purpose push/pull style connector with square, snap-in design
- Keyed connector latches with simple push-pull motion
Key Features
- Low insertion loss and high return loss
- High density connection with easy operation
- Excellent reliability and stability
- Superior repeatability and exchangeability
Applications
- Testing equipment
- FTTX+LAN networks
- Optical fiber CATV systems
- Optical communication systems
- Telecommunication infrastructure
Performance Specifications
| Parameter | Single Mode | Multimode |
|---|---|---|
| Normal Fiber OD | 125±0.2μm | 125±0.2μm |
| Connector Types | SC, FC, ST, E-2000, LC, MU | MTRJ, SC, FC, ST, E-2000, LC, MU |
| Insertion Loss (Typical) | 0.2dB | 0.4dB |
| Insertion Loss (Max) | 0.3dB | 0.5dB |
| Return Loss (Typical) | PC: 50dB UPC: 55dB APC: 65dB |
35dB |
| Mating Durability (500 cycles) | 0.2dB | |
| Temperature Stability | 0.3dB | |
| Operation Temperature | -40°C to +85°C | |
| Storage Temperature | -40°C to +85°C | |
