MPO/MTP OM4 Patch Cord – High-Density Multimode Connectivity for Next-Gen Data Centers
商品の詳細:
| 起源の場所: | 中国深センと中山 |
| ブランド名: | DF/OEM/Nuetral |
| 証明: | CE/ROHS/CPR EN50575/ISO9001 /ISO14001 |
| モデル番号: | MPO/MTP OM4 |
お支払配送条件:
| 最小注文数量: | 1 |
|---|---|
| 価格: | Can be negotiation |
| パッケージの詳細: | カートン |
| 受渡し時間: | 5-9 作品は数量に応じて異なります |
| 支払条件: | T/T、ペイパル |
| 供給の能力: | 3500個/週 |
|
詳細情報 |
|||
| ハイライト: | MPO OM4 patch cord,MTP high-density connectivity,multimode data center patch cord |
||
|---|---|---|---|
製品の説明

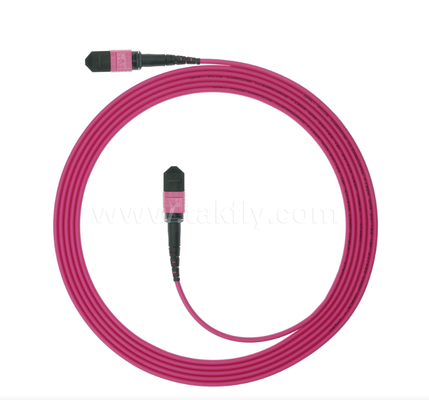

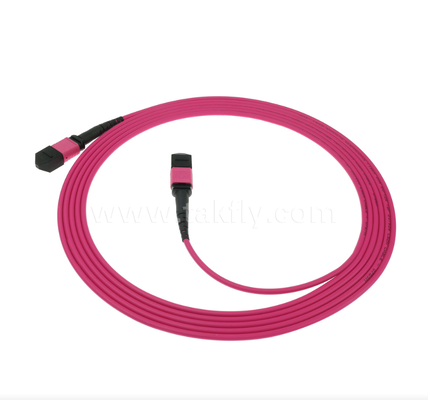

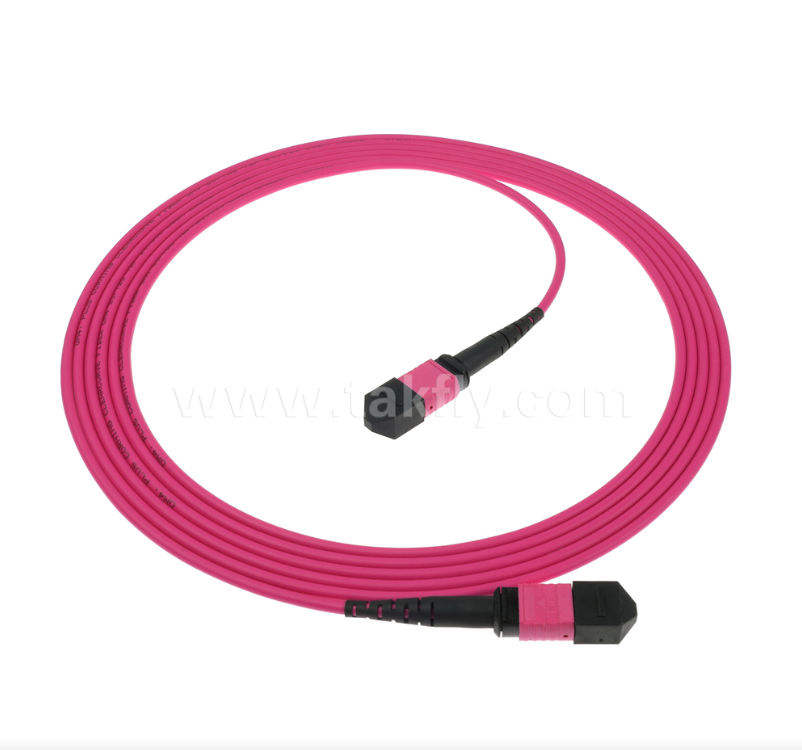

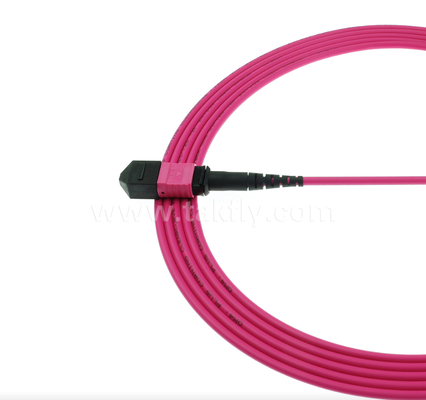

MPO/MTP OM4 Patch Cord – High-Density Multimode Connectivity
The MPO/MTP OM4 patch cord is a high-performance, multi-fiber interconnect solution designed to support high-speed optical transmission in data centers, enterprise networks, and high-density patching environments. This patch cord terminates both ends of a fiber optic cable with high-precision MPO/MTP connectors, enabling active connectivity between optical network equipment, fiber distribution frames, and cross-connect systems for simple, convenient, and fast deployment.

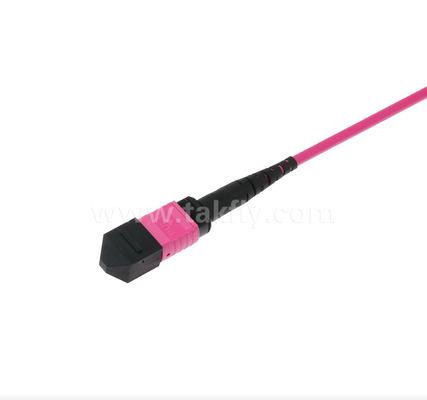

Selected High Quality Ferrule
Available with high quality ferrule and professional polishing technology for precise optical endface matching and stable transmission.
Available with high quality ferrule and professional polishing technology for precise optical endface matching and stable transmission.
High Quality, 100% Testing
TAKFLY MPO/MTP patch cords are fully tested and compliant with product standards to meet user demands.
TAKFLY MPO/MTP patch cords are fully tested and compliant with product standards to meet user demands.
Multiple Types Optional
TAKFLY provides a full range of MPO/MTP patch cords with customization options available.
TAKFLY provides a full range of MPO/MTP patch cords with customization options available.
Key Features
- OM4 laser-optimized 50/125μm multimode fiber - supports 10G up to 550m, 40G/100G SR4 up to 150m, 400G SR8 up to 100m
- Precision MT ferrule with high-precision guide pins for exact alignment
- High-density design: supports 4/8/12/16/24/48/72 fibers per connector
- Polarity options: Type A / Type B / Type C
- Configurations: MPO-MPO trunk or MPO-LC/SC breakout harness
- Fully compliant with IEC 61754-7 and EIA/TIA-604-5 (FOCIS-5)
- 100% factory tested (insertion loss, return loss, end-face inspection)
- Fully customizable: fiber count, length, jacket (LSZH/PVC/Plenum), connector type, polarity
Applications
- Data centers (40G/100G/400G architectures)
- Enterprise networks & campus backbones
- High-performance computing (AI/ML, big data)
- 40G/100G/400G SR4/SR8/SR16 optical transceivers (QSFP/QSFP-DD/OSFP)
- High-density patching areas
- Storage area networks (SAN)
- Premise installations
- Breakout cassettes and fan-out harnesses
- Test & measurement equipment
Why Choose TAKFLY?
26 Years of Manufacturing Experience in Fiber Optic Products
- Experienced Assembly Team: More than 80 assembly workers with 6+ years of experience
- Strong R&D Capability: More than 10 R&D engineers
- Advanced Production Equipment: 16 sets of German imported injection machines and 16 production lines
- Comprehensive Testing Facilities: More than 30 sets of testing instruments including OTDR, ILD, VFL, RL, IL, tension strength testers, crush resistance testers, power meter testers, and light checkers
- OEM Branding Accepted: Custom logo/branding available
Quality Control Process
- Incoming inspection: Spot check of raw materials before production
- In-process inspection: Full inspection at every individual process completion
- Pre-packaging inspection: Full inspection of finished products before packing
- Pre-shipping inspection: Spot check before shipping
Industry Participation
Source Electronics Exhibition, OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, China
Delivery Information
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging: Plastic bag, carton, and pallet options available according to your requirements
