MPO MTP High‑Density Multi‑Fiber Patch Cord – 8/12/24 Cores, Low Loss, 500 Mating Cycles, IEC & TIA Compliant
商品の詳細:
| 起源の場所: | 深セン、中国 |
| ブランド名: | Takfly/OEM |
| 証明: | CE, ISO, RoHS, GS |
| モデル番号: | MPO/MTPのパッチ・コード |
お支払配送条件:
| 最小注文数量: | 1個 |
|---|---|
| 価格: | US $9.88-US $19.88/ Pcs |
| パッケージの詳細: | PPはカートンでそれから袋に入れる |
| 受渡し時間: | 3-7working日 |
| 支払条件: | L/C、T/T、ウェスタンユニオン、ペイパル |
| 供給の能力: | 50000個/月 |
|
詳細情報 |
|||
| コア: | マルチコア | コネクタA: | SC |
|---|---|---|---|
| コネクタB: | MPO/MTP | ファイバーモード: | 50/125um |
| ケーブル径: | 0.9/2.0/3.0 | ポーランド型: | PC/APC |
| リターンロス: | MM/PC:20 dB/SM/APC:60 dB | 挿入損失: | 0.35dB マックス (0.15dB 典型的な) |
| アウターシース材料: | PVC/LSZH | 傾き半径 静的/動的: | 10D/20D |
| Hsコード: | 854470000 | 性別: | 男性/女性 |
| ハイライト: | MPO MTP patch cord 24 cores,MPO MTP fiber cable low loss,MPO MTP patch cord IEC compliant |
||
製品の説明

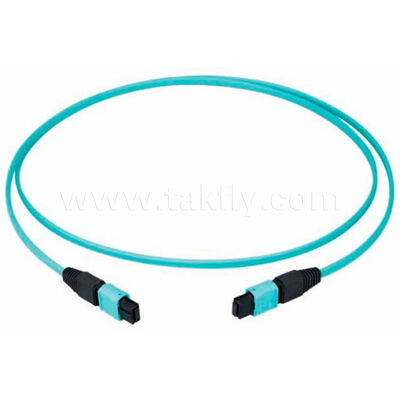

MPO MTP High-Density Multi-Fiber Patch Cord
8/12/24 Cores, Low Loss, 500 Mating Cycles, IEC & TIA Compliant
Product Overview

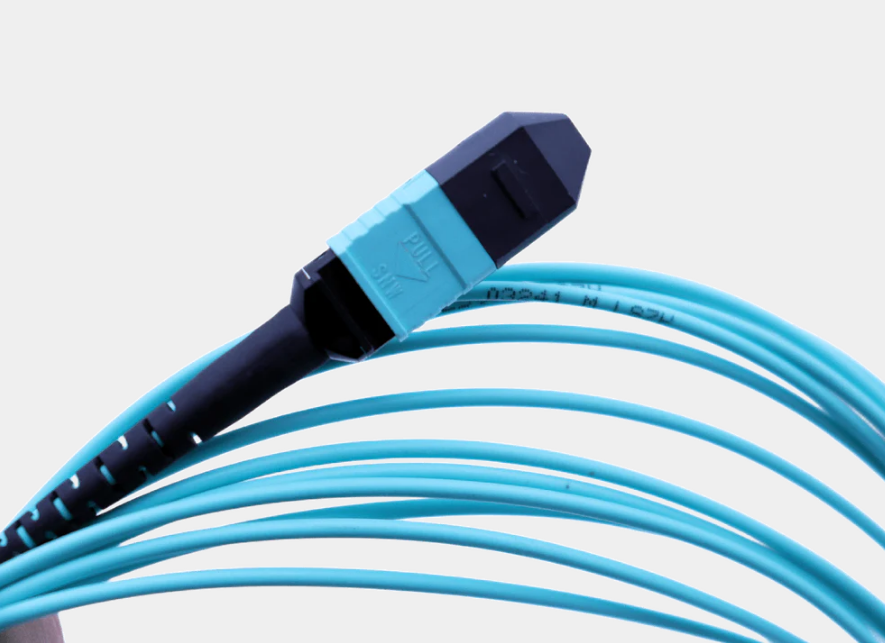

The MPO/MTP multi-fiber connector series is engineered for high-density optical interconnections in data centers, telecom central offices, CATV headends, and industrial environments. A precision-molded MT ferrule combined with high-accuracy guide pins ensures exact alignment of up to 24 fibers in a single interface. Two performance grades—standard and low-loss—are available to match diverse link budget requirements. All products meet IEC 61754-7 and EIA/TIA-604-5, with 100% factory testing.
Key Features
- Precision molded MT ferrule for consistent core geometry
- High-precision guide pins for reliable alignment after repeated mating
- Supports 4, 8, 12, or 24 fibers in a compact form factor
- Standard loss (≤0.35dB typ. / ≤0.70dB max) and low loss (≤0.20dB typ. / ≤0.35dB max)
- Compatible with single-mode (G652, G655, G657) and multi-mode (OM1-OM5) fibers
- Multiple cable types: mini round (≤4.5mm OD) or ribbon (≤3.0×5.0mm)
- Jacket options: PVC or LSZH (low smoke, halogen-free)
- Polarity management: Type A, B, C with color coding and labeling
Enhanced Performance Characteristics
Mechanical Durability
- Mating cycles: ≥500 (insertion loss variation ≤0.2dB)
- Tensile strength: ≥50N for 2.0mm cable (connector to cable)
- Vibration & shock: Meets GR-1435-CORE requirements for industrial use
Environmental Reliability
- Damp heat cycling: -10℃ to +65℃, 93% RH, 5 cycles → IL variation ≤0.3dB
- High-temperature aging: 85℃ for 168 hours → IL variation ≤0.3dB
- Low-temperature storage: -40℃ for 24 hours → IL variation ≤0.2dB
Polarity Management Support
- Type A (straight): Key position parallel to fiber position
- Type B (reversed): Key reversed, fiber position mirrored
- Type C (pairwise): Adjacent fiber pairs swapped
- Color-coded boots and labels available for easy identification
Compatibility
Fully compatible with all standard MTP/MPO adapters and equipment ports (QSFP-DD, OSFP, SFP-DD, etc.). Male (pins) and female (no pins) versions available.
Technical Specifications
| Parameter | LC, SC, ST, FC (Single-Fiber) | MPO/MTP (Multi-Fiber) |
|---|---|---|
| End face type | UPC / APC | PC / APC |
| Fiber type | SM (G652, G655, G657); MM (OM1-OM5) | Same |
| Core count | 8, 12, 24 | Same |
| Cable diameter | 0.9 / 2.0 / 3.0 mm | Mini round: ≤4.5 mm Ribbon: ≤3.0×5.0 mm |
| Insertion loss (standard grade) | ≤0.3 dB (single-fiber) | Typ. ≤0.35 dB / Max ≤0.70 dB |
| Insertion loss (low loss grade) | -- | Typ. ≤0.20 dB / Max ≤0.35 dB |
| Return loss (min.) | UPC SM: 40dB; APC SM: 60dB; UPC MM: 25dB | SM APC: 60dB; MM PC: 20dB |
| Test wavelength | SM: 1310/1550 nm; MM: 850/1300 nm | Same |
| Repeatability | ≤0.1 dB | Same |
| Durability | ≤0.2 dB | Same |
| Interchangeability | ≤0.2 dB | Same |
| Operating temperature | -20℃ ~ +70℃ | Same |
| Storage temperature | -40℃ ~ +80℃ | Same |
| Outer sheath material | PVC / LSZH | Same |
| Bending radius (static/dynamic) | 10D / 20D | Same |
| Length | Customized | Customized |
| Mating cycles | -- | ≥500 (ΔIL ≤0.2dB) |
| Tensile strength (2.0mm cable) | -- | ≥50N |
| Damp heat test | -- | ΔIL ≤0.3dB after 5 cycles |
| High-temp aging | -- | ΔIL ≤0.3dB after 168h @85℃ |
Application Scenarios
Data Center - 40G/100G/400G Links
Example: 12-fiber low-loss MPO patch cord connecting QSFP-40G-SR4 to the patching area.
Benefit: Replaces 4 duplex LC pairs, saves 75% of cable tray space.
Benefit: Replaces 4 duplex LC pairs, saves 75% of cable tray space.
Telecom Central Office - Backbone Upgrade
Example: 24-fiber MPO ribbon cable connecting ODF sub-racks with MPO-LC breakout modules.
Benefit: Rapid deployment, ready for 400G coherent optics.
Benefit: Rapid deployment, ready for 400G coherent optics.
Industrial - Ruggedized Interconnect
Example: Vibration-resistant MPO jumper, operating temp -40℃ to +85℃, passed shock & vibration testing.
Benefit: Salt spray and mold resistance for harsh environments.
Benefit: Salt spray and mold resistance for harsh environments.
CATV Headend - Multi-Channel Video Distribution
Example: 1×12 MPO splitter feeding 12 optical receivers.
Benefit: High density, reduces cable clutter.
Benefit: High density, reduces cable clutter.
Competitive Advantages
| Comparison | Standard MPO | This MPO/MTP Series |
|---|---|---|
| Typical insertion loss | 0.5 dB | 0.35 dB (std) / 0.20 dB (low loss) |
| Mating cycles | 200 | ≥500 |
| Max operating temp | 70℃ | 85℃ (short-term), 70℃ (long-term) |
| Polarity management | Optional | Full Type A/B/C with color coding |
| Environmental test data | Not specified | Damp heat, thermal cycle, vibration reports |
| Custom lengths | Limited | Any length from 0.5m to 200m |
Ordering & Customization
| Customization Option | Choices |
|---|---|
| Core count | 8, 12, 24 |
| Loss grade | Standard / Low loss |
| Cable type | Mini round / Ribbon |
| Outer sheath | PVC / LSZH |
| End face | PC / APC |
| Polarity | Type A / B / C |
| Connector gender | Male (with pins) / Female (without pins) |
| Length | 0.5 m ~ 200 m |

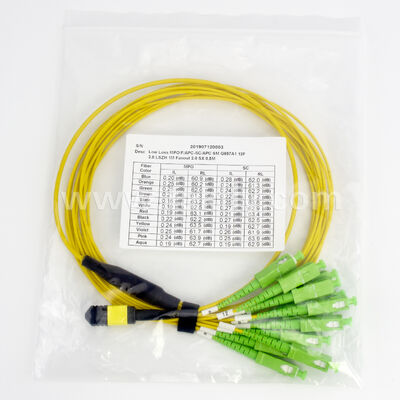

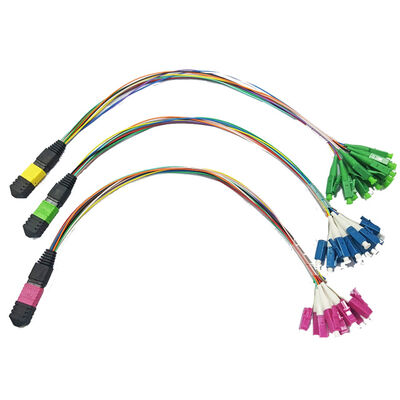

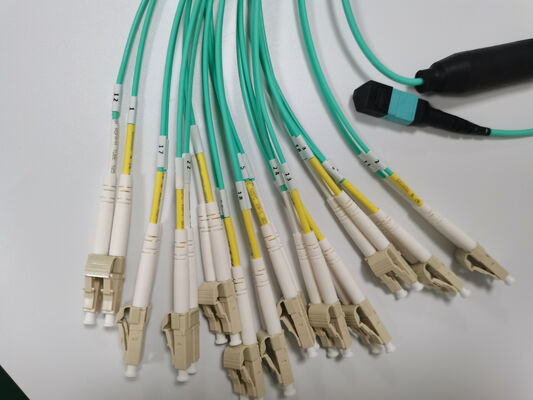

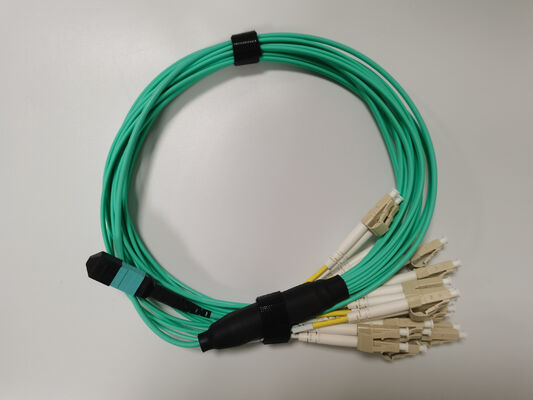

| Breakout fanout | MPO to LC/SC breakout cables available |
Ordering code example:
MPO-12-LL-ROUND-LSZH-3M-APC-TYPEA-MALEQuality Assurance & Certifications
- 100% IL & RL tested - Each patch cord comes with a test report
- 3D interferometer inspection - Radius of curvature, fiber height, offset per IEC standards
- RoHS & REACH compliant
- UL listed (for LSZH materials)
Product Summary
This MPO/MTP multi-fiber patch cord series offers standard and low-loss grades, enhanced mechanical durability (≥500 mating cycles), proven environmental stability (damp heat, high-temp aging), and full polarity management (Type A/B/C). It is ideal for high-density, high-reliability fiber interconnections in data centers, telecom, CATV, and industrial applications. All specifications are factory-tested, and custom configurations are available.
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are a manufacturer, FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive. More quantity, the price will be more competitive.
Q: Can you quote FOB price?
A: Yes. We can delivery by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver it by sea. We can quote price with freight and lead time for you, after you let us know detailed requirements with quantity. We have competitive shipping forwarders. For more solutions, you can feel free to contact us.
Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified. All the products are 100% test before delivery.
Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2-3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.
Q: What's your warranty?
A: Depends on different product, we have 1 years warranty for patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.
Q: What's your packing?
A: International export standard package. If you need to print your logo on the packing, please let us know before we quote.
Q: Can you offer OEM/ODM?
A: Yes, we can. All products accept OEM/ODM. We can sign the Confidentiality Agreement.
Q: Can I have a sample?
A: It depends on which products, Free sample provide under 10 USD. Freight will be paid by buyer before delivery.
Q: How can I order?
A:
- Send mail or inquiries with product name, specification, and quantity to us. Provide your receive address if you need FOB, CIF, CFR price.
- We will offer our quotation with lead time.
- After the quotation confirmed, we will send a PI with our bank account.
- Production will be arranged after the payment received.
- Confirm the consignee with you before we deliver it.
- The tracking number will be provided after the delivery.
Q: What is your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.
