MT to Mini MT Patch Cord – MT-MiniMT Hybrid Fiber Jumper, Low Insertion Loss (≤0.35dB), 4/8/12/24 Core Options, for High-Speed Optical Transceivers (400G/800G) & Compact Module Internal Connections

MT to Mini MT Patch Cord – MT-MiniMT Hybrid Fiber Jumper, Low Insertion Loss (≤0.35dB), 4/8/12/24 Core Options, for High-Speed Optical Transceivers (400G/800G) & Compact Module Internal Connections

商品の詳細:

起源の場所: 深センと中山、中国
ブランド名: DF/OEM/Nuetral
証明: CE/ROHS/CPR EN50575/ISO9001 /ISO14001
モデル番号: MT-ミニMT

お支払配送条件:

最小注文数量: 1
価格: can be negotiated
パッケージの詳細: カートン
受渡し時間: 5〜9営業日は数量によって異なります
支払条件: T/T、ウェスタンユニオン、ペイパル
供給の能力: 1000個/日
ベストプライス 連絡先

詳細情報
ハイライト:

MT-MiniMT hybrid fiber jumper

,

low insertion loss fiber patch cord

,

MTP patch cord for optical transceivers

製品の説明

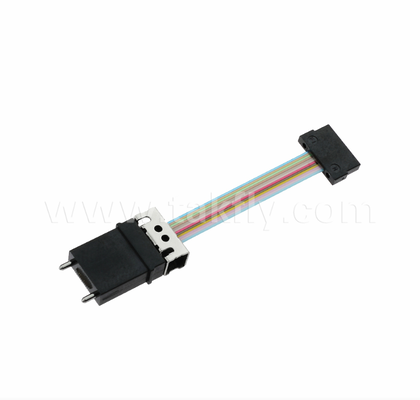

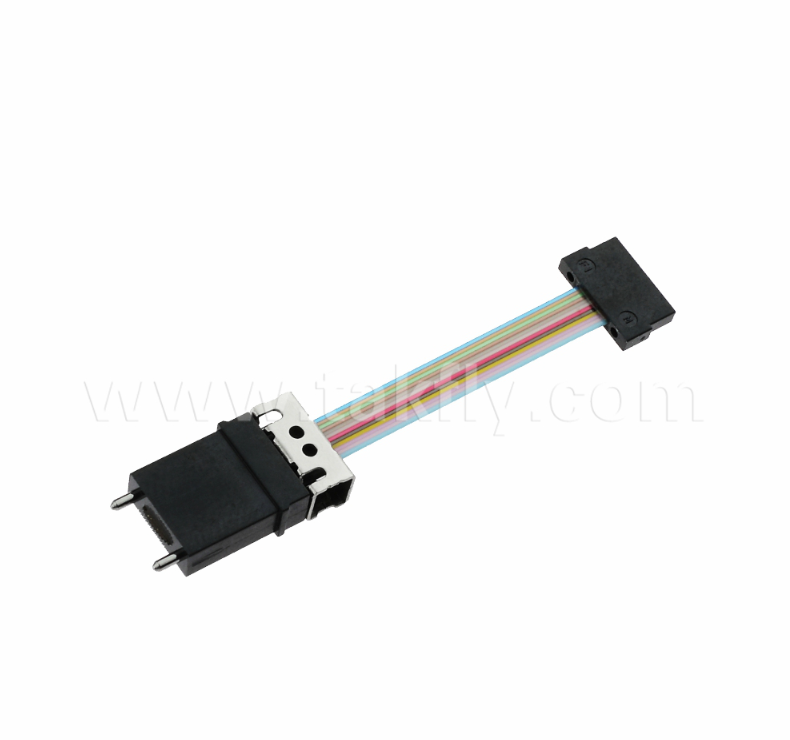

MT to Mini MT Patch Cord – Hybrid Fiber Jumper
The MT-MiniMT Hybrid Fiber Jumper is designed for internal cabling in high-speed optical transceivers (400G/800G). This assembly features a standard MT ferrule on one end and a compact Mini MT ferrule on the other, specifically engineered for space-constrained QSFP, QSFP-DD, and OSFP module packaging.
Key Specifications
  • Low Insertion Loss: ≤0.35dB
  • Available in 4/8/12/24 Core Options
  • Standard MT to Mini MT ferrule configuration
  • Compatible with 400G/800G Optical Transceivers
MT to Mini MT Patch Cord diagram showing standard and mini ferrule connection
Compact Design Advantage
The Mini MT ferrule measures less than half the size of a standard MT ferrule, enabling optimal fit within ultra-compact internal spaces of high-speed transceivers where space optimization is critical.
Features illustration of MT-MiniMT hybrid fiber jumper
Application & Operation
In high-speed optical transceivers, the Mini MT end directly couples to the lens array aligned with laser diodes, while the standard MT end terminates at the module's external optical interface. This integrated approach simplifies module assembly by providing a complete internal optical pathway in a single patch cord.
Internal connection diagram showing Mini MT to laser array coupling Transceiver module external interface connection illustration
TAKFLY Manufacturing Excellence
Company Capabilities
  • 26 Years of Fiber Optic Manufacturing Experience
  • Experienced Assembly Team: 80+ workers with 6+ years experience
  • Strong R&D Capability: 10+ dedicated engineers
  • Advanced Production Equipment: 16 German injection machines, 16 production lines
  • Comprehensive Testing Facilities: 30+ testing instruments including OTDR, ILD, VFL, RL, IL, and mechanical testers
  • OEM Branding Accepted - Custom logo/branding available
Quality Control Process
  • Incoming Inspection: Raw material spot checking
  • In-process Inspection: Full inspection at each production stage
  • Pre-packaging Inspection: Comprehensive finished product checking
  • Pre-shipping Inspection: Final spot check before dispatch
Industry Participation
Active participation in major industry events including OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, and Source Electronics Exhibition.
Delivery Information
Service Type Timeline
Samples 1-3 working days
Mass Production Orders 3-7 working days
Packaging Options Plastic bag, carton, and pallet options available
