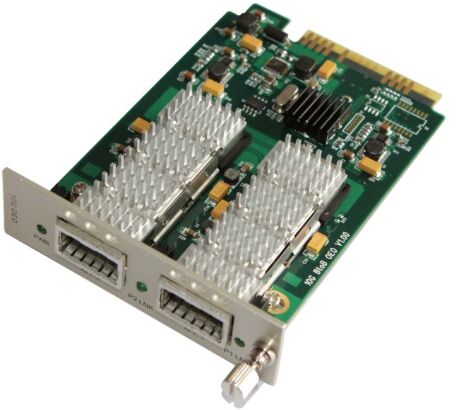

8.5G~11.35G OEO Fiber Media Converter AC220V Unmanaged Long-Haul Signal (2R Repeater)
商品の詳細:
| 起源の場所: | 中国、深Shenzhen |
| ブランド名: | DF/OEM/Nuetral |
| 証明: | CE/ROHS/REACH/ISO9001/ISO14001 |
| モデル番号: | 8.5G~11.35G OEO ファイバーメディアコンバータ AC220V アンマネージド長距離信号 (2R リピータ) |
お支払配送条件:
| 最小注文数量: | 交渉可能 |
|---|---|
| 価格: | negotiable denpend on QTY |
| パッケージの詳細: | ブリスターボックス+カートン |
| 受渡し時間: | 5~9 営業日 QTY に依存する |
| 支払条件: | ウェスタンユニオン,T/T,MoneyGram/Paypal |
| 供給の能力: | 2000 個/週 |
|
詳細情報 |
|||
| 製品名: | 8.5G~11.35G OEO ファイバーメディアコンバータ AC220V アンマネージド長距離信号 (2R リピータ) | 通信速度: | 8.5Gb/秒～11.35Gb/秒 |
|---|---|---|---|
| プロトコル: | 8.5G ファイバーチャネル；10G WAN (10Gbps)；10G LAN (10.31Gbps) | 伝送距離: | XFPモジュール：最大80Km |
| 電力要件: | ラックマウント可能 : AC 85 ～ 220V または DC -48V | 動作温度: | 0~50°C |
| 貯蔵温度:: | -10～+70℃ | 湿度: | 5％〜90％ |
| ハイライト: | 8.5G~11.35G fiber media converter,unmanaged fiber optic converter,long-haul OEO signal repeater |
||
製品の説明
8.5G~11.35G OEO Fiber Media Converter AC220V Unmanaged Long-Haul Signal (2R Repeater)
The 8.5G~11.35G OEO Converter (2R Repeater) is a high-performance, transparent fiber-to-fiber media converter designed to regenerate (re-amplify, re-shape, re-time) 10Gbps optical signals, including 10G Ethernet, SDH/SONET, and Fiber Channel. These devices enable long-distance transmission and wavelength conversion using SFP+ or XFP modules.
OEO Fiber Media Converter Overview
Standalone 10G OEO Converter Repeater with XFP Slot to XFP Slot utilizes optical-electricity-optical conversion principles to realize optical signal regeneration, enabling optical signal amplification, regeneration, and wavelength conversion. When combined with coarse/dense wavelength division multiplexing, it enables WDM transmission to quickly improve communication capacity and expand bandwidth on existing networks using cost-effective, easy-to-operate solutions.
OEO Fiber Media Converter Key Features
- Support Loopback functionality
- Support Jumbo Frame transmission
- Transparent transport with very low delay
- Support ITU-T prescribed DWDM/CWDM wavelengths
- Hot plugging capability
- Support 2U Rack (16 channel) and standalone use
- Full state LED display for monitoring
- Easy installation and operation
OEO Fiber Media Converter Technical Specifications
| Performance Data | Technical Indexes |
|---|---|
| Transmission Speed | 8.5Gb/s-11.35Gb/s |
| Protocols | 8.5G Fiber Channel SONET OC-192, SDH STM-64 (9.95Gbps), 10G WAN (10Gbps), 10G LAN (10.31Gbps), OTN OTU-2 (G.709) (10.70Gbps), 10G LAN with 255/237 FEC coding (11.09Gbps), 10G Fiber Channel (11.32Gbps), 10G POS |
| Interface Type | XFP to XFP |
| Transmission Distance | XFP module: Up to 80Km |
| Maximum Packet Forwarding Rate | 14,880,950/S |
| Power Requirement | Rack-mountable: AC 85～220V OR DC -48V Standalone: AC 110~220V OR -48V Power consumption: ≤4W |
| Work Environment | Operating Temp: 0~50℃ Storage Temp: -10~70℃ Humidity: 5%~90% (non-condensing) |
| Dimension | Card: 115mm (W) × 78mm (D) Standalone: 156mm (W) × 128mm (D) × 32mm (H) |
OEO Fiber Media Converter
Why Choose TAKFLY?
- 26+ years of fiber optic product manufacturing expertise
- 450+ experienced assembly workers with 3+ years of experience
- 10+ dedicated R&D Engineers driving continuous innovation
- 16 Germany-imported injection machines and advanced production lines
- 30+ testing equipment including OTDR, 3D, VFL, IL & RL test instruments
- Comprehensive quality testing with tension strength and crush resistance testers
- Power meter testers and light checkers for quality assurance
- OEM branding accepted
- Regular participation in major industry exhibitions worldwide
Quality Control Process
- Raw material spot checks during incoming inspection
- Full inspection after completion of every production process
- Comprehensive half-done production checks
- Thorough finished product inspection before packaging
- Final spot checks before shipping
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per customer requirements
