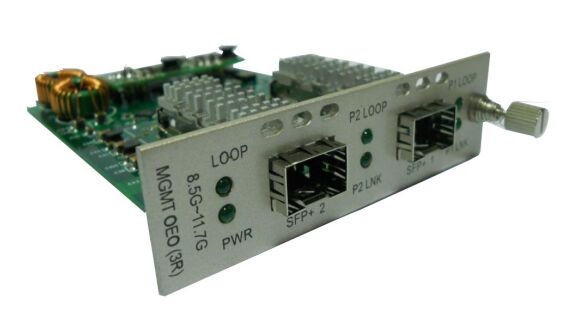

8.5G~11.7G OEO Fiber Media Converter AC220V Unmanaged Long-Haul Signal (3R Repeater)
商品の詳細:
| 起源の場所: | 中国、深Shenzhen |
| ブランド名: | DF/OEM/Nuetral |
| 証明: | CE/ROHS/REACH/ISO9001/ISO14001 |
| モデル番号: | 16 個のホットスワップ可能なスロットと集中管理可能なラックマウント シャーシ メディア コンバータ |
お支払配送条件:
| 最小注文数量: | 交渉可能 |
|---|---|
| 価格: | negotiable denpend on QTY |
| パッケージの詳細: | ブリスターボックス+カートン |
| 受渡し時間: | 5~9 営業日 QTY に依存する |
| 支払条件: | ウェスタンユニオン,T/T,MoneyGram/Paypal |
| 供給の能力: | 2000 個/週 |
|
詳細情報 |
|||
| 製品名: | 16 個のホットスワップ可能なスロットと集中管理可能なラックマウント シャーシ メディア コンバータ | 基準を満たします: | IEEE802.3z、IEEE802.3u、IEEE802.3x、IEEE802.3ah |
|---|---|---|---|
| データレート: | 10Mbps、100Mbps、1000M半二重/全二重自動検知 | コネクタ: | ST、SC、FC、LC |
| 動作温度: | 0~50°C | 貯蔵温度:: | -10～+70℃ |
| 湿度: | 5％〜90％ | ||
| ハイライト: | 8.5G-11.7G fiber media converter,unmanaged OEO signal repeater,long-haul fiber optic converter |
||
製品の説明
8.5G~11.7G OEO Fiber Media Converter AC220V Unmanaged Long-Haul Signal (3R Repeater)
The 8.5G~11.7G OEO Converter (3R Repeater) is a high-performance, transparent fiber-to-fiber media converter used to regenerate (re-amplify, re-shape, re-time) 10Gbps optical signals, including 10G Ethernet, SDH/SONET, and Fiber Channel. These devices enable long-distance transmission and wavelength conversion using SFP+ or XFP modules.
Product Overview
The 8.5G~11.7G OEO Converter (3R Repeater) functions as a fiber media converter or fiber repeater for long-distance transmission between fiber-to-fiber 10Gbps equipment. Designed for network backbone applications (SAN, LAN, MAN), it supports SDH/SONET STM-64/OC-192, 10G fiber channel, 10G Ethernet, and more. Suitable for telecommunication rooms, R&D laboratories, data centers, and similar environments. Features 1310nm/1550nm/CWDM/DWDM optical wavelength conversion and supports loopback functionality.
Key Features
- Support Loopback functionality
- Support Jumbo Frame transmission
- Transparent transport with very low delay
- Support ITUT prescribed DWDM/CWDM wavelength
- Hot plugging capability
- Support 2U Rack (16 channel) and standalone use
- Full state LED display
- Easy installation and setup
Technical Specifications
| Performance Data | Technical Indexes |
|---|---|
| Equipment function | 3R Repeater |
| Transmission Speed | 8.5Gb/s-11.7Gb/s |
| Protocols | 8.5G Fiber Channel SONET OC-192, SDH STM-64 (9.95Gbps) 10G WAN (10Gbps) 10G LAN (10.31Gbps) OTN OTU-2 (G.709) (10.70Gbps) 10G LAN with 255/237 FEC coding (11.09Gbps) 10G Fiber Channel (11.32Gbps) 10G POS |
| Interface Type | Type A: XFP to XFP Type B: XFP to SFP+ Type C: SFP+ to XFP |
| Transmission Distance | XFP module: Up to 80Km SFP+ module: up to 80km |
| Maximum Packet/Forwarding Rate | 14,880,950/S |
| Power requirement | Rack-mountable: AC 85～220V OR DC -48V Standalone: AC 110~220V OR -48V Power consumption: ≤4W |
| Work Environment | Operating Temp: 0~50℃ Storage Temp: -10~70℃ Humidity: 5%~90% (non-condensing) |
| Dimension | Card: 115mm (W) × 78mm(D) Standalone: 156mm (W) × 128mm(D) × 32mm(H) |
16 Slots Rackmount Chassis Media Converters
Why Choose TAKFLY
- 26+ years of fiber optic product manufacturing expertise
- 450+ experienced assembly workers with 3+ years of experience
- 10+ dedicated R&D Engineers driving continuous innovation
- 16 Germany-imported injection machines and advanced production lines
- 30+ testing equipment including OTDR, 3D, VFL, IL & RL test instruments
- Comprehensive quality testing with tension strength and crush resistance testers
- Power meter testers and light checkers for quality assurance
- OEM branding accepted
- Regular participation in major industry exhibitions worldwide
Quality Control Process
- Raw material spot checks during incoming inspection
- Full inspection after completion of every production process
- Comprehensive half-done production checks
- Thorough finished product inspection before packaging
- Final spot checks before shipping
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per customer requirements
Frequently Asked Questions
How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Please provide your email or contact information through our website to receive our catalogue and price list.
Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
Yes, we may consider discounts for multiple container loads of mixed goods.
How much will the shipping charges be?
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
What if there is a quality problem when we receive the goods?
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we will implement improvements for future production.
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we will implement improvements for future production.
What are your packing terms?
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests.
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests.
What are your payment terms?
T/T 30% deposit, with 70% balance due before delivery. We provide photos of products and packaging before final payment.
T/T 30% deposit, with 70% balance due before delivery. We provide photos of products and packaging before final payment.
What are your delivery terms?
EXW, FOB, CFR, CIF, DDU
EXW, FOB, CFR, CIF, DDU
What is your delivery time?
Generally 5-7 working days after receiving advance payment. Specific timing depends on product items and order quantity.
Generally 5-7 working days after receiving advance payment. Specific timing depends on product items and order quantity.
Can you produce according to samples?
Yes, we can manufacture products based on your samples or technical drawings.
Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
