Flat band Optical Cable 2-24F for Data Centers

製品概要

Flat Band Optical Cable 2-24F for Data Centers Product Overview Flat band optical cable 4-24 core featuring φ250μm color fiber as optical communication medium. The color fibers are wrapped in a layer of aramid yarn as a force strengthening unit, which is coated with polyvinyl chloride (PVC) or low...

Product Custom Attributes

製品名:
データセンター向けフラットバンド光ケーブル 2-24F
SM 減衰:
標準 0.36/0.22
クラッド径(μm):
125±1.0
MM減衰:
通常 3.0/1.0
光ファイバーのファイバー数:
4-24C
光ファイバーの色:
1. ホワイト 2. ブルー 3. オレンジ 4. グリーン 5. ブラウン 6. グレー7.レッド 8. ブラック 9. イエロー 10. バイオレット 11. ピンク 12. アクア
コア強化:
アラミド糸
シース材質:
PVC、LSZH
シース直径:
3.0±0.1mm
温度範囲:
-20℃~+70℃
保証:
5年間、永久保守
ファイバーブランド:
コーニング,YOFC,OFS,ドラカ
ハイライト:

flat band fiber optic cable

,

optical cable for data centers

,

24F flat band cable

基本的な特性

起源の場所:
中国、深Shenzhen
ブランド名:
DF/OEM/Nuetral
証明:
CE/ROHS/REACH/ISO9001/ISO14001
モデル番号:
データセンター向けフラットバンド光ケーブル 2-24F

取引物件

最小注文数量:
交渉可能
価格:
negotiable denpend on QTY
パッケージの詳細:
ブリスターボックス+カートン
受渡し時間:
5~9 営業日 QTY に依存する
支払条件:
ウェスタンユニオン,T/T,MoneyGram/Paypal
供給の能力:
1000pcs/日

製品の説明

Flat Band Optical Cable 2-24F for Data Centers
Product Overview

Flat band optical cable 4-24 core featuring φ250μm color fiber as optical communication medium. The color fibers are wrapped in a layer of aramid yarn as a force strengthening unit, which is coated with polyvinyl chloride (PVC) or low-smoke halogen-free material (LSZH) jacket.

Applications
  • Optical fiber active connection jumper or tail fiber
  • Indoor shaft stage and forced ventilation level wiring
  • Interconnection of instruments and communication equipment
Characteristics
  • Coated fiber is easy to peel off
  • Aramid yarn reinforced element provides excellent tensile resistance
  • Good flame-retardant performance with low induced attenuation within operating temperature range
Optical Parameters and Properties
Flat band Optical Cable 2-24F for Data Centers 0

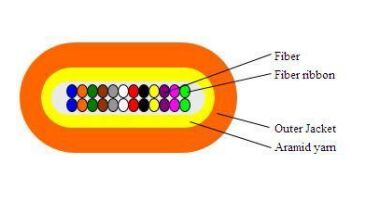

Cable Structure
Flat band Optical Cable 2-24F for Data Centers 1
Specifications

Length of production optical cable: 2000M

Optical cable outer sheath printing specifications, such as: OPTICAL FIBER CABLE 24C 2.7X5.3 SM G652D-9/125um - LSZH - MM/YY 00000MI

Packaging & Delivery
  • Packaging: Wooden Drums Protection. According to customer or our company request.
  • Delivery Length: Standard Reel Length: 0.5-2.0 km or according to customer request.
Cable Marking
  • Cable Marker every Meter by inkjet printing
  • Year of manufacture
  • Type of Cable
  • Number of fiber
  • Cable length
  • Etc.
  • According to customer or our company request
