10/100/1000Base-TX to 1000Base-FX Fiber Optic Media Converter with LFP
商品の詳細:
| 起源の場所: | 中国、深Shenzhen |
| ブランド名: | DF/OEM/Nuetral |
| 証明: | CE/ROHS/REACH/ISO9001/ISO14001 |
| モデル番号: | TK-PC-48F-SC-OS2-50M |
お支払配送条件:
| 最小注文数量: | 交渉可能 |
|---|---|
| 価格: | negotiable denpend on QTY |
| パッケージの詳細: | ブリスターボックス+カートン |
| 受渡し時間: | 5~9 営業日 QTY に依存する |
| 支払条件: | ウェスタンユニオン,T/T,MoneyGram/Paypal |
| 供給の能力: | 2000 個/週 |
|
詳細情報 |
|||
| 製品名: | 10/100/1000Base-TX から 1000Base-FX 光ファイバーメディアコンバーター (LFP 付き) | 標準: | IEEE802.3 10Base-T イーサネット、IEEE802.3u 100Base-TX/FX ファスト イーサネット |
|---|---|---|---|
| データレート: | 銅: 10/100/1000M;ファイバー: 10/100/1000Mbps | フロー制御: | フルデュプレックス：フロー制御;半分デュプレックス：背圧 |
| フルデュプレックス：フロー制御;半分デュプレックス：背圧: | 銅線ポートの数: 1 コネクタ: RJ45 コネクタ距離: 100m | ファイバーブランド: | コーニング,YOFC,OFS,ドラカ |
| ファイバーポート: | ファイバーポートの数: 1 コネクタ: SFP (デフォルト)、FC/ST /SC オプション 波長: TX 1550 nm/RX 1310 nm 距離: MMF 2Km、SMF 20/40/80/1 | 電源: | 動作電源: DC5V 1A AC電源: 100V〜AC240V〜5V1AまたはDC電源: -36〜-72V〜5V1A 外部/内部電源オプション |
| 消費電力: | <2W | 環境: | 動作温度 : -10 ～ 55 ℃ 保管温度 : -40 ～ 85 ℃ 相対湿度 : 5% ～ 95% 結露なきこと |
| 寸法: | 外形: 94mmx70mmx26mm | 総重量: | 外装：0.4kg |
| ハイライト: | Gigabit Ethernet fiber optic converter,10/100/1000Base-TX media converter with LFP,1000Base-FX fiber optic media converter |
||
製品の説明

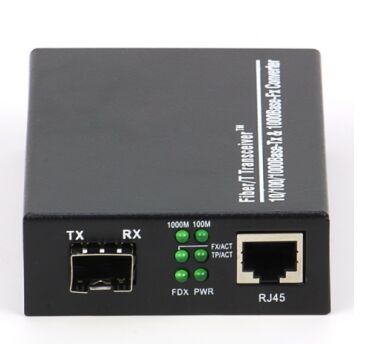

10/100/1000Base-TX to 1000Base-FX Fiber Optic Media Converter with LFP
10/100/1000Base-TX to 1000Base-FX Fiber Optic Media Converter with LFP
DF-MC12 Serial Fiber Media Converter translates the signal from a twist-pair 10/100/1000MBase-TX cable to 1000Base-FX fiber optic cable, extends data transmission distance from 100m via copper cables to 120km by fiber optic cable, which supports LFP (Link Fault Pass-through) function.
DF-MC12 Serial Fiber Media Converter translates the signal from a twist-pair 10/100/1000MBase-TX cable to 1000Base-FX fiber optic cable, extends data transmission distance from 100m via copper cables to 120km by fiber optic cable, which supports LFP (Link Fault Pass-through) function.
Product Features
- 1000Mbps cut-through transmission
- 10/100/1000Mbps store-and-forward
- Packet size up to 1518 bytes
- Supporting VLAN / VoIP / QoS packets
- Support flow control and reduce broadcast packets
- Supporting STP to form a redundant network
- Extremely low power consumption, low heat, stable performance
- Providing Desktop, Wall-mounted, Chassis, DIN-rail installation
- LFP (Link Fault Pass-through) Function
- External Power Adapter or USB power source
- DIP Switch to set configurations
- Supporting extra-long packets up to 1600 bytes
Product Specifications
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet |
|---|---|
| Data Rate | Copper: 10/100/1000M; Fiber: 10/100/1000Mbps |
| Flow control | Full duplex: flow control; Half duplex: back pressure |
| Copper Port | No.s of Copper Port: 1 Connector: RJ45 Connector Distance: 100m |
| Fiber Port | No.s of Fiber Port: 1 Connector: SFP as default, FC/ST/SC optional Wavelength: TX 1550 nm/RX 1310 nm Distance: MMF 2Km, SMF 20/40/80/100/120Km, Bi-di 20/40/80/100Km |
| LED indicators | PWR (power supply); FL/A (optical link/action) FDX (FX full duplex), TL/A (twisted pairs link/action) 100 (100M transmission rate of twisted pairs), FX (100M transmission rate of optical fiber) |
| Power supply | Working power: DC5V 1A AC Power Supply: 100V~ AC240V to 5V1A Or DC Power Supply: -36~-72V to 5V1A External / Internal Power Supply Optional |
| Power consumption | <2W |
| Environment | Operating temperature: -10~55ºC Storage Temperature: -40~85ºC Relative Humidity: 5% to 95% non-condensing |
| Dimensions | External: 94mm x 70mm x 26mm |
| Gross Weight | External: 0.4kg |
Product Pictures
Why Choose TAKFLY
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
FAQ
Q1: How can I get your catalogue and price list?
A1: Please let us know your email or contacts from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quality problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Furthermore we will also take action to improve the quality in future
Q6: What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
Q7: What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10: Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
