Outdoor Waterproof Optical Cable PE/AT 2-12F
商品の詳細:
| 起源の場所: | 中国、深Shenzhen |
| ブランド名: | DF/OEM/Nuetral |
| 証明: | CE/ROHS/REACH/ISO9001/ISO14001 |
| モデル番号: | TK-PC-48F-SC-OS2-50M |
お支払配送条件:
| 最小注文数量: | 交渉可能 |
|---|---|
| 価格: | negotiable denpend on QTY |
| パッケージの詳細: | ブリスターボックス+カートン |
| 受渡し時間: | 5~9 営業日 QTY に依存する |
| 支払条件: | ウェスタンユニオン,T/T,MoneyGram/Paypal |
| 供給の能力: | 1000pcs/日 |
|
詳細情報 |
|||
| 製品名: | 屋外用防水光ケーブル | 繊維数: | 2〜12 |
|---|---|---|---|
| 光ファイバー径(±1μm): | 125μm | 光ファイバー被覆径(±5μm): | 250μm |
| サブユニット直径 (mm): | 2-3mm | コア強化: | アラミッド糸 |
| 保護材: | APL | シース シース材質: | 泥炭 |
| 色: | 黒 | スパン(M): | 50m |
| 動作温度: | -20℃〜70℃ | ファイバーブランド: | コーニング,YOFC,OFS,ドラカ |
| ハイライト: | Outdoor waterproof fiber optic cable,PE/AT fiber optic cable,2-12F fiber optic cable |
||
製品の説明
Outdoor Waterproof Optical Cable PE/AT 2-12F
GJA waterproof optical cable uses simplex cable (Φ900µm tight buffer fibre, aramid yarn as strength member) as subunit. A fibre reinforced plastic (FRP) or Steel wire locates in the center of core as a non-metallic strength member. The subunits are stranded around the cable core. An aluminum polyethylene laminate is applied around the cable core. The cable is completed with a PE jacket.
Product Applications
- Optical fiber active connection jumper or tail fiber
- Indoor any purpose cable distribution
- Interconnect from outdoor to indoor for optical cable distribution equipment
Product Features
- Adopt a tight sleeve optical fiber for easy stripping
- Stranded strength member structure ensure the cable endure larger tensile strength
- The outer jacket material have many advantages such as anti-corrosion, anti-water and anti-ultraviolet radiation etc
- APL moisture barrier
- Meet various requirements of market and clients
Optical Parameter and Properties

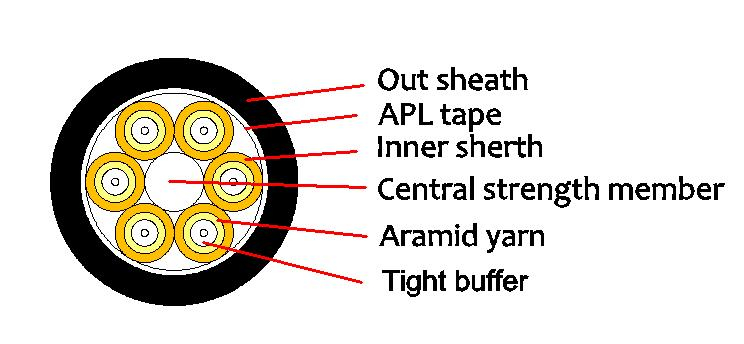

Product Structure
Other Requirements
- Length of production optical cable: 2000M
- Optical cable outer sheath printing specifications, such as:
OPTICAL FIBER CABLE GJA 12C 14.8 SM G652D MM/YY 00000M
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
