Indoor Breakout Optical Cable 2000M LSZH/PVC/PU
商品の詳細:
| 起源の場所: | 中国、深Shenzhen |
| ブランド名: | DF/OEM/Nuetral |
| 証明: | CE/ROHS/REACH/ISO9001/ISO14001 |
| モデル番号: | TK-PC-48F-SC-OS2-50M |
お支払配送条件:
| 最小注文数量: | 交渉可能 |
|---|---|
| 価格: | negotiable denpend on QTY |
| パッケージの詳細: | ブリスターボックス+カートン |
| 受渡し時間: | 5~9 営業日 QTY に依存する |
| 支払条件: | ウェスタンユニオン,T/T,MoneyGram/Paypal |
| 供給の能力: | 1000pcs/日 |
|
詳細情報 |
|||
| 製品名: | 屋内ブレークアウト光ケーブル | 外径（mm）: | 3.0～12.5mm |
|---|---|---|---|
| 繊維数: | 4-48 | コア強化: | アラミッド糸 |
| 材料: | ステンレス鋼 | ジャケット素材: | LSZH/PVC |
| 色: | 白またはカスタマイズ | 波長: | 1310nm、1550nm |
| 直径(±1μm): | 125μm | コーティング径(±5μm): | 250μm |
| 動作温度: | -20℃〜70℃ | 長さ: | 2000m またはカスタマイズ |
| ファイバーブランド: | コーニング,YOFC,OFS,ドラカ | ||
| ハイライト: | Indoor Breakout Optical Cable 2000M,LSZH Fiber Optic Cable,PVC Indoor Optical Cable |
||
製品の説明
Indoor Breakout Optical Cable 2000M LSZH/PVC/PU
Product Description
4-48 core branch optical cables (900ym compact buffer fiber, aramid yam is a reinforcement element, 2.0mm innelsheath) are used as a subunit. A fiber-reinforced plastic (FRP) is positioned at the center of the core as a non-metallic strengthening element. The subunit is surrounded by FRP, with a PVC or LSZH material sheath, and the final outer layer is polyvinyl chloride (PVC) or low-smoke halogen-free material (LSZH, low smoke, halogen-free, flame retardant jacket).
Product Applications
- Optical fiber active connection jumper or tail fiber
- Indoor shaft stage and forced ventilation level wiring
- Interconnection of instruments and communication equipment
Product Features
- Adopt a tight sleeve optical fiber for easy stripping
- Aramid yarn reinforced element makes the optical cable have excellent tensile resistance
- Good performance of flame-retardant, low induced attenuation within the operating temperature range
- Meet various requirements of market and clients
Optical Parameter and Properties
| Optical fiber type | Test wavelength | Decay | Full injection bandwidth (MHZ.km) | Effective modal bandwidth (MHZ.km) | Minimum bending radius(mm) |
|---|---|---|---|---|---|
| G652D | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 16 |
| G657A1 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 10 |
| G657A2 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 7.5 |
| 62.5/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥200/500 | 30 |
| 50/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥500/500 | 30 |
| OM3 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | 7.5 |
| OM4 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | 7.5 |
| OM5 | 850/953nm/1300nm | 3.0/.../1.0 | 3.5/.../1.5 | ≥3500/1850/500 | 7.5 |

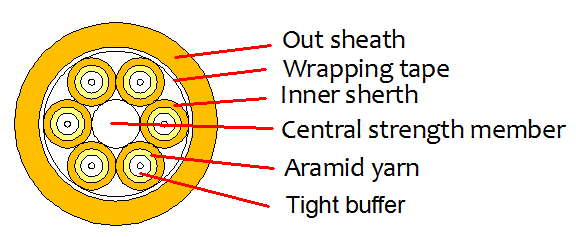

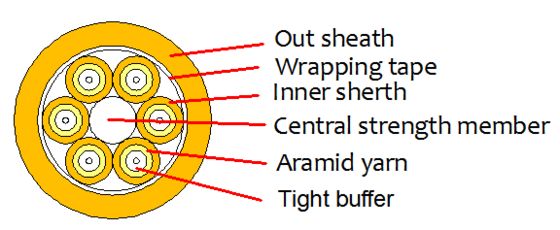

Product Structure
Product Picture
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control:
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery:
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
