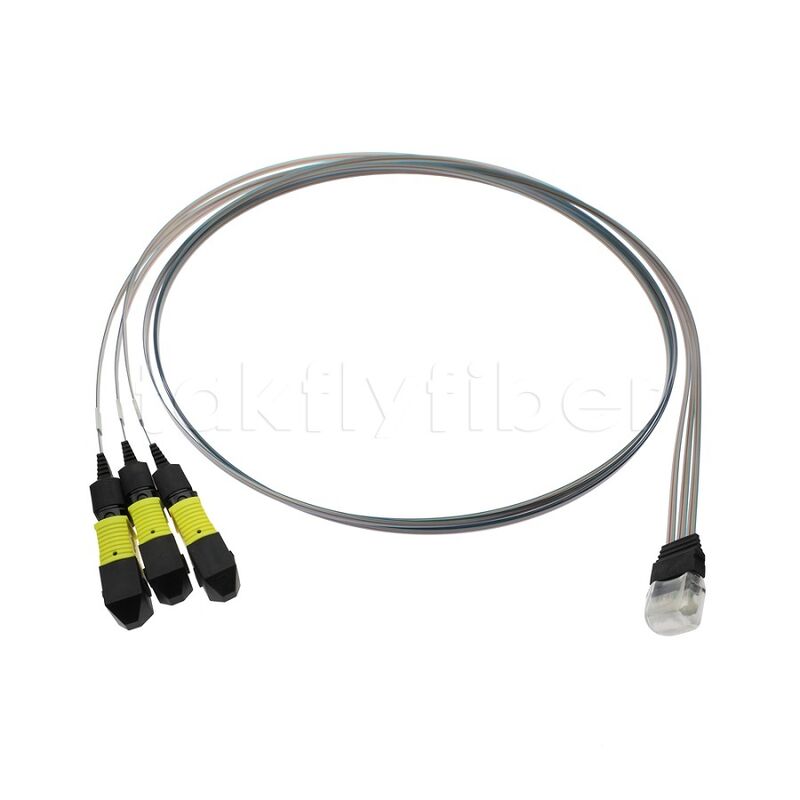

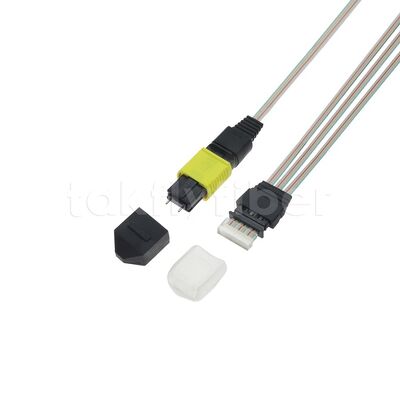

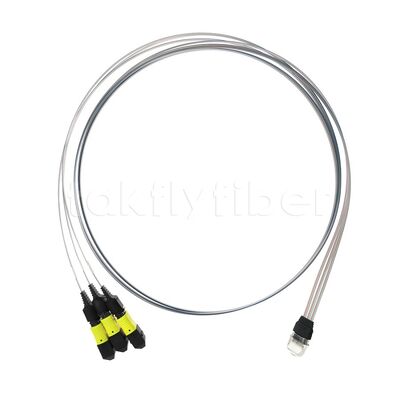

3x12F MTP - 36CH Fiber Array FA Assembly with High Transmission Rate Low Consumption and High Stability and Reliability
商品の詳細:
| 起源の場所: | 深セン、中国 |
| ブランド名: | OEM/Takfly |
| 証明: | CE, ROSH REACH |
| モデル番号: | DF-MT-2FA |
お支払配送条件:
| 最小注文数量: | 1個 |
|---|---|
| 価格: | Can be negotiated |
| パッケージの詳細: | PP袋+カートンボックス/プラスチックボックス+カートンボックス |
| 受渡し時間: | 数量と要件に応じて3〜15営業日 |
| 支払条件: | L/C、T/T、ウェスタンユニオン、マネーグラム、ペイパル |
| 供給の能力: | 20000個/月 |
|
詳細情報 |
|||
| 製品名: | 高伝送速度、低消費電力、高い安定性と信頼性を備えた 3x12F MTP x 36CH ファイバー アレイ FA アセンブリ | ファイバーの種類: | OM3、OM4; OM1、OM2; OS1、OS2;午後。 OM5 |
|---|---|---|---|
| 外観: | 36 繊維 | FAアングル: | 0/42.5° |
| 繊維長: | 20~100mm、カスタマイズされた長さが利用可能 | ||
| ハイライト: | High Transmission Rate Fiber Array FA Assembly,Low Consumption MT-FA Patch Cord,High Stability and Reliability 36CH Fiber Array |
||
製品の説明
3x12F MTP - 36CH Fiber Array FA Assembly
High-performance 36-channel fiber array assembly featuring high transmission rate, low consumption, and exceptional stability and reliability for demanding optical applications.
Product Overview
Takfly's MT-FA patch cords are specifically engineered for high-speed optical module applications, connecting internal optics to external ports to ensure seamless signal transmission. These fiber optic arrays utilize V-groove substrates to precisely position fiber bundles or ribbons at specified spacing, delivering stable transmission performance with high reliability and customization options.
Applications
- Active Optical Modules
- Communication, high-speed, high-capacity fiber optic transmission
- Internal connector applications in fiber equipment
- Parallel optical transceiver modules, supercomputers, testing equipment, and military applications
Key Features
- Stable optical characteristics
- High-precision MT ferrule with small bending radius fiber for low loss
- Typical core pitch tolerance <±0.5μm
- High accuracy and customization capabilities
- Optical characteristics comply with IEC TIA/EIA standards
- RoHS 2.0 Compliant
Technical Specifications
| Parameter | Unit | Value |
|---|---|---|
| Fiber Count | - | Optional |
| Fiber Mode | - | SM: G652, G657 | MM: OM1, OM2, OM3, OM4, OM5 |
| Wavelength | nm | 1310/1550 | 850/1300 |
| MT Endface Polishing | - | PC | APC | PC | APC |
| Insertion Loss (IL) | dB | ≤0.35 | ≤0.35 |
| Return Loss (RL) | dB | ≥50 | ≥60 | ≥20 | ≥40 |
| Durability | Time | 50 |
| FA Lid Dimensions (L x W x T) | mm | 2.5 x 2 x 0.2 (Optional) |
| V-Groove Dimensions (L x W x T) | mm | 5 x 2 x 0.5 |
| Core Pitch | μm | 175, 250 |
| Bare Fiber Degree | ° | 8, 42.5, 45 |
| FA Insertion Loss (IL) | dB | ≤0.8 |
| Operating Temperature | ℃ | -20 ~ +80 |
| Storage Temperature | ℃ | -15 ~ +60 |
Frequently Asked Questions
Could you customize the MT to FA for customers?
Yes, we can. OEM is available. Welcome to send us your drawing requirements.
What's your production capacity for MT-FA?
Our production capacity is 20K ~40K pieces per month, depending on different channel configurations.
Can I visit your facility?
Sure, our factories are located in Shenzhen and Zhongshan, Guangdong, China. Please contact us to schedule an appointment.
What if there is a quality problem when we receive the goods?
If quality issues arise upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we'll implement improvements for future production.
What are your packing terms?
Generally, we pack goods in blister boxes and cartons, but we can also accommodate custom packaging requests.
What are your payment terms?
We accept T/T, Paypal, Western Union, Alipay, and other payment methods.
What are your delivery terms?
We offer EXW, FOB, CFR, CIF, and DDU delivery terms.
How about your delivery time?
Generally, 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
