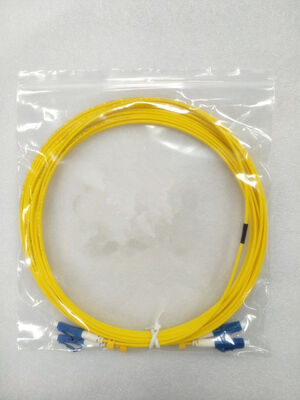

24F LC‑LC Patch Cord – Low Loss, High Return Loss, Telcordia GR‑326 Compliant
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | DF/OEM/Nuetral |
| 証明: | CE/ROHS/REACH/ISO9001/ISO14001 |
| モデル番号: | TK-CS-3.0-1M |
お支払配送条件:
| 最小注文数量: | 100個 |
|---|---|
| 価格: | US$0.01~2.79/PC |
| パッケージの詳細: | 輸出標準梱包 |
| 受渡し時間: | 5~9 営業日 QTY に依存する |
| 支払条件: | ウェスタンユニオン,T/T,MoneyGram/Paypal |
| 供給の能力: | 10000個/日 |
|
詳細情報 |
|||
| 製品名: | ST から LC OM1 OM2 光ファイバーデュプレックスパッチコード | インタークション損失: | ≤0.3dB |
|---|---|---|---|
| リターンロス: | PC MM ≥ 35 dB | ファイバーの種類: | OM1/OM2 |
| 直径: | 3.0mm | コネクタの種類: | PC/UPC |
| ジャケット素材: | LSZH/PVC/PU | 色: | オレンジまたはカスタマイズされた |
| 波長: | 1310nm,850nm | 長さ: | 1Mまたはカスタマイズ |
| 納期: | -40℃〜80℃ | 繊維径: | 50/125 |
| 学年: | テレコムグレード | 証明書: | CE/ROHS/REACH |
| 生産能力: | 10000個/日 | ||
| ハイライト: | 24F LC-LC fiber optic patch cord,low loss LC-LC patch cable,Telcordia GR-326 compliant patch cord |
||
製品の説明
Product Overview

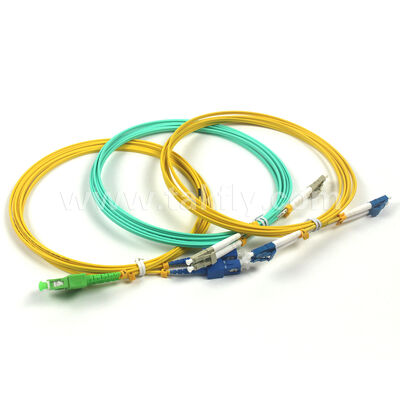

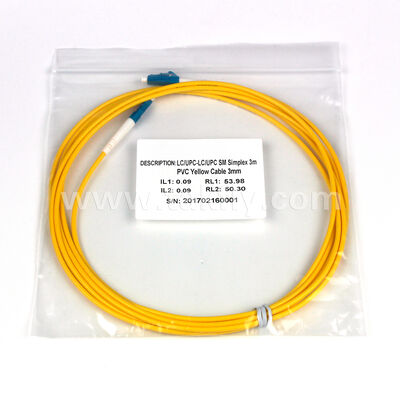

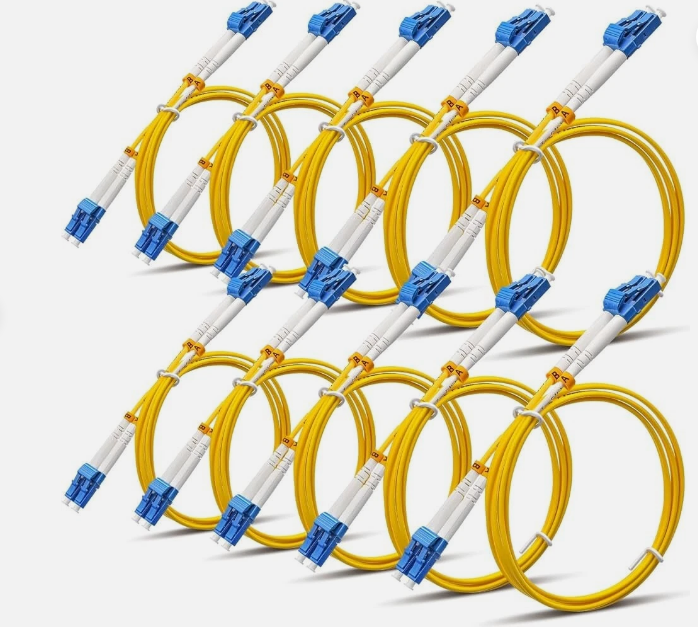

This 24-core LC-LC patch cord is engineered for high-density fiber patching in data centers and communication networks. Featuring LC connectors on both ends, it's available in single-mode (G652, G655, G657) or multi-mode (OM1-OM5) fiber types. The cable has a 3.0mm outer diameter with sheath options including PVC, LSZH, or TPU. Custom lengths available.
Applications
- CATV networks
- Telecommunication networks
- Active device termination
- Local area networks (LANs)
- Data processing networks
- Test equipment
- Wide area networks (WANs)
Key Features
- Low insertion loss and high return loss
- Excellent exchangeability
- Superior durability
- High temperature stability
- Compliant with Telcordia GR-326-CORE standards
Technical Specifications
| End face type | PC, UPC and APC |
| Fiber type | SM (G652, G655, G657); MM (OM1-OM5) |
| Cable Diameter | 3.0mm |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM ≥ 50 dB, APC SM ≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2 dB |
| Interchangeability | ≤ 0.2 dB |
| Tensile strength | > 70 N |
| Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -40℃ ~ 80℃ |
| Outer Sheath Material | PVC, LSZH, TPU |
| Bending radius (Static/Dynamic) | 10D / 20D |
| Length | Customized |
Why Choose TAKFLY
Our products are installed in major worldwide projects and trusted by leading operators. We maintain long-term partnerships with industry leaders including Lapp, Amper, Telefonica, Orange, Corning, Amphenol, SENKO, and Ericsson.
We welcome all inquiries and promise high quality, competitive pricing, and fast delivery service regardless of order size.
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a manufacturer and FTTH solution/data center total solution provider in Shenzhen, China, established in 2000.
What's your MOQ?
MOQ can be 1 piece, but pricing becomes more competitive with larger quantities.
Can you quote FOB price?
Yes. We deliver by air, DHL, TNT, UPC, FEDEX, etc. Large quantities are shipped by sea. We provide quotes with freight and lead times based on your requirements.
How is your quality?
Our production follows IEC and European standards with CE, ISO, RoHS, CPR, and ANATEL certifications. All products are 100% tested before delivery.
What's your lead time?
For fiber optic patch cords: 2-3 working days for up to 5,000 pieces. We maintain regular product stock and can accommodate urgent orders.
What's your warranty?
1-year warranty for patch cords (non-artificial damage). For artificial damage, we provide free repair with freight paid by customer.
What's your packing?
International export standard packaging. Custom logo printing available upon request.
Can you offer OEM/ODM?
Yes, all products accept OEM/ODM. We can sign Confidentiality Agreements.
Can I have a sample?
Free samples available for products under $10. Buyer pays freight.
How can I order?
1. Send inquiry with product details and quantity
2. We provide quotation with lead time
3. Confirm PI with bank account
4. Production begins after payment
5. Confirm consignee details
6. Receive tracking number after delivery
2. We provide quotation with lead time
3. Confirm PI with bank account
4. Production begins after payment
5. Confirm consignee details
6. Receive tracking number after delivery
What is your payment term?
T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.
Price Match Guarantee
With the same quality standard, if you find better pricing elsewhere, TAKFLY will match it.
Our team brings 3+ years of optical fiber industry experience and is honored to serve as your professional product assistant.
