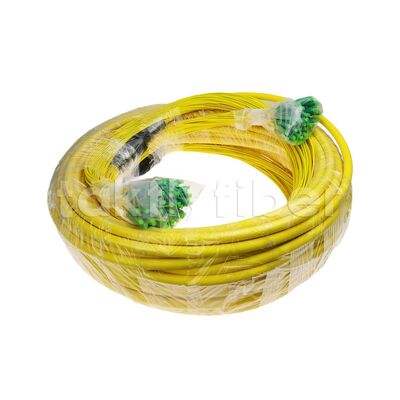

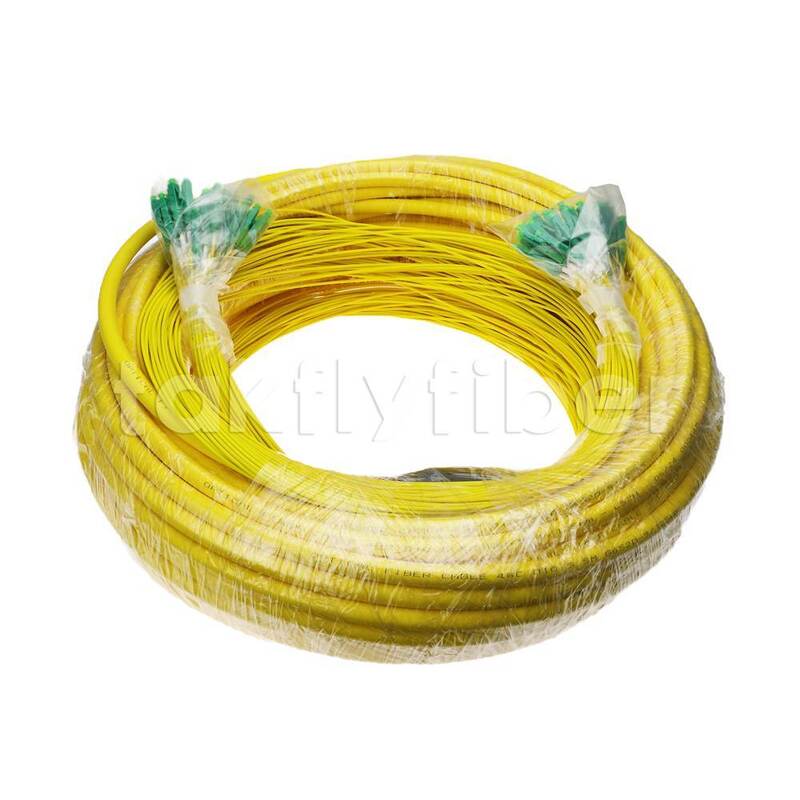

CPR Dca Rated 48 Cores LC Single Mode G657A1 Fiber Optic Fanout Cable Patchcord
商品の詳細:
| ブランド名: | TK/DF/Neutral |
| 証明: | CE, ROHS, REACH, CPR EN50575 |
| モデル番号: | TK-48F-PC-LA-LA-XXXM |
お支払配送条件:
| 最小注文数量: | 1 |
|---|---|
| 価格: | US$0.01~US$49.99 |
| パッケージの詳細: | 標準輸出梱包 |
| 受渡し時間: | 7-9営業日 |
| 支払条件: | T/T、Western Union、PayPal、L/C |
| 供給の能力: | 1週間あたり10000個 |
|
詳細情報 |
|||
| 製品名: | コーニング、YOFC、OFS、ドラカ、HT | 長さ: | 20mまたはカスタマイズ |
|---|---|---|---|
| 製品名: | 光ファイバーパッチコード | 繊維径: | 9/125μm |
| ケーブルタイプ: | シングルモードまたはマルチモード | 振動: | ≤0.2dB |
| コネクタの種類: | LC/APC,LC/UPC | シース: | LSZH |
| 納期: | -20 ~ +65 °C | ケーブルの材質: | LSZH/PVC |
| コネクタの色: | グリーン/ブルー/ベージュ/アクア/マゼンタ | 応用: | 通信、データセンター、CATV、LAN |
| 挿入損失: | <= 0.3dB | 輸送パッケージ: | リール |
| 規格準拠: | CE,ROHS,REACH,ISO9001,ISO14001 | ||
| ハイライト: | CPR Dca rated fiber optic patchcord,LC single mode G657A1 cable,48 cores fiber optic fanout |
||
製品の説明
Fiber Optic Patch Cords are manufactured using multi-core Breakout Tight Buffer Optical Cable. These cables are ideal for various applications including data center main, horizontal, zone and equipment distribution area trunk cables for Storage Area Network (SAN) and other critical applications, as well as for fixed lengths in interbuilding or intrabuilding backbones.
Our Fiber Optic Patch Cord features individual 900μm fibers with kevlar reinforcement and an outer jacket (up to 2.0 mm) along with a strength member, all bundled within a protective outer jacket. These high-density cables support fiber counts up to 144 fibers. For easy identification, 0.9mm cables are color-coded, while 2mm cables utilize numbered labels.
- CATV Systems
- Telecommunication Networks
- Active Device Termination
- Local Area Networks (LANs)
- Data Processing Networks
- Test Equipment
- Wide Area Networks (WANs)
- Low insertion loss and high reflection loss
- Excellent exchange ability
- Superior durability
- High temperature stability
- Compliant with Telcordia GR-326-CORE standard
| Parameter | Specification |
|---|---|
| Connector Type | LC |
| End Face Type | APC |
| Fiber Type | SM G652D, SM G657A1, SM G657A2 |
| Cable Diameter | 10.5mm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | UPC SM≥50dB, APC SM ≥60dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile Strength | >70N |
| Operating Temperature | -20℃ to 70℃ |
| Storage Temperature | -40℃ to 80℃ |
| Outer Sheath Material | LSZH |
| Bending Radius (Static/Dynamic) | 10D/20D |
| Length | 10M, 20M, 50M, 100M or customized |
| Fanout Length | 0.5M, 1M or customized |
| Fanout Diameter | 2.0mm |
To place a custom order, please specify the following parameters:
- Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
- Mode type: Single mode (UPC and APC) / Multi mode (PC)
- Cable diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
- Coating material: PVC / LSZH
- Fiber count: Simple / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core and more
- Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
- Patch cord length: Customized to your requirements
- For MPO/MTP connectors: Specify method (A type / B type / C type), gender (male/female), and fiber count (4/8/12/16/24/32/48/72/96/144/288 fiber)
With over 10 years of experience in this field, we provide exceptional service and professional technical support.
If you're interested in our products or have any questions, please contact us for immediate assistance.
