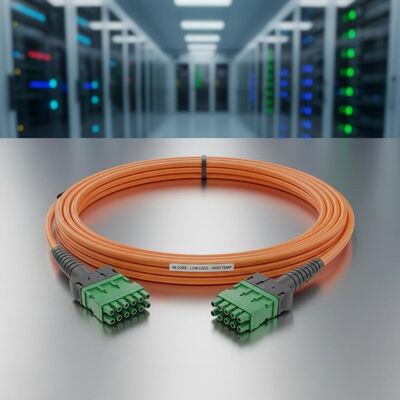

48 Core Fiber Optic Patch Cord with Low Insertion Loss and High Temperature Stability for Data Centers
商品の詳細:
| ブランド名: | TK/DF/Neutral |
| 証明: | CE, ROHS, REACH, CPR EN50575 |
| モデル番号: | TK-48F-PC-LA-LA-XXXM |
お支払配送条件:
| 最小注文数量: | 1 |
|---|---|
| 価格: | US$0.01~US$49.99 |
| パッケージの詳細: | 標準輸出梱包 |
| 受渡し時間: | 7-9営業日 |
| 支払条件: | T/T、Western Union、PayPal、L/C |
| 供給の能力: | 1週間あたり10000個 |
|
詳細情報 |
|||
| 製品名: | コーニング、YOFC、OFS、ドラカ、HT | 長さ: | 20mまたはカスタマイズ |
|---|---|---|---|
| 製品名: | 光ファイバーパッチコード | 繊維径: | 9/125μm |
| ケーブルタイプ: | シングルモードまたはマルチモード | 振動: | ≤0.2dB |
| コネクタの種類: | LC/APC,LC/UPC | シース: | LSZH |
| 納期: | -20 ~ +65 °C | ケーブルの材質: | LSZH/PVC |
| コネクタの色: | グリーン/ブルー/ベージュ/アクア/マゼンタ | 応用: | 通信、データセンター、CATV、LAN |
| 挿入損失: | <= 0.3dB | 輸送パッケージ: | リール |
| 規格準拠: | CE,ROHS,REACH,ISO9001,ISO14001 | ||
| ハイライト: | 48 core fiber optic patch cord,low insertion loss fiber patchcord,high temperature stable fiber optic cable |
||
製品の説明

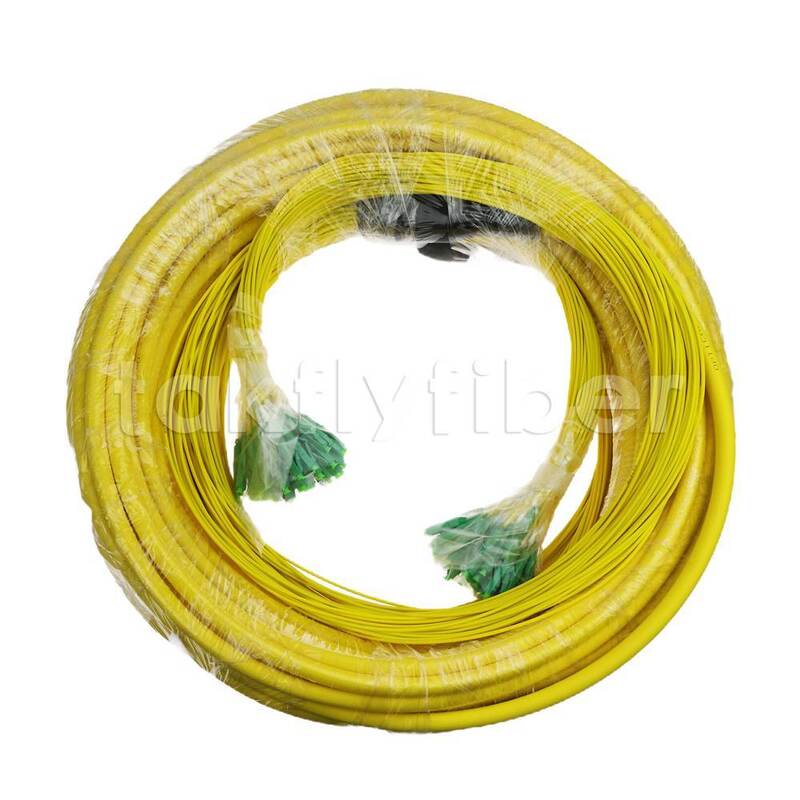

48 Core Fiber Optic Distribution Breakout Patch Cord
Product Description
48 Core Fiber Optic Distribution Breakout Patch Cord designed for high-performance fiber optic connectivity applications.
Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Type | LC |
| End face type | APC |
| Fiber Type | SM G652D, SM G657A1, SM G657A2 |
| Cable Diameter | 10.5mm |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM ≥60dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >70N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | LSZH |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | 10M, 20M, 50M, 100M or customized |
| Fanout Length | 0.5M, 1M or customized |
| Fanout Diameter | 2.0mm |
How to Order
Specify the following parameters when ordering:
- Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
- Mode type: single mode (UPC and APC) / multi mode (PC)
- Cable diameter: 0.9 / 2.0 / 3.0 mm (can customize other diameters)
- Coating material: PVC / LSZH
- Fiber count: simple / duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core and more
- Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
- Patch cord length: according to your requirement
- For MPO/MTP connectors: specify method (A type / B type / C type), male or female, fiber count (4/8/12/16/24/32/48/72/96/144/288 fiber)
With over 10 years of experience in this field, we provide professional service and technical expertise.
If you're interested in our products or have any questions, please contact us for more information.
