CPR Eca Certified 3.0mm TPU Round Drop Cable Fiber Optic Patch Cord SCAPC-SCAPC
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | DF/OEM/Nuetral |
| 証明: | CE/ROHS/REACH/ISO9001/ISO14001 |
| モデル番号: | TK-PC-3.0-TPU-SA-SA-20M |
お支払配送条件:
| 最小注文数量: | 100個 |
|---|---|
| 価格: | US$0.01~4.99/PC |
| パッケージの詳細: | 輸出標準梱包 |
| 受渡し時間: | 5~9 営業日 QTY に依存する |
| 支払条件: | ウェスタンユニオン,T/T,MoneyGram/Paypal |
| 供給の能力: | 10000pcs/日 |
|
詳細情報 |
|||
| 製品名: | CPR Eca 認定 3.0mm TPU ラウンド ドロップ ケーブル光ファイバ パッチ コード SCAPC-SCAPC | インタークション損失: | ≤0.3dB |
|---|---|---|---|
| リターンロス: | APC SM ≥ 60dB | ファイバーの種類: | OS2,G652D,G657A1,G657A2,G657B3 |
| 直径: | 3.0mm | コネクタの種類: | APC |
| ジャケット素材: | tpu | 色: | 黒 |
| 波長: | 1310nm、1550nm | 長さ: | 20mまたはカスタマイズ |
| 動作温度: | -20℃～70℃ | 繊維径: | 9/125 |
| 学年: | テレコムグレード | 証明書: | CE/ROHS/REACH |
| 生産能力: | 10000pcs/日 | ||
| ハイライト: | 3.0mm TPU fiber optic patch cord,SCAPC-SCAPC fiber optic cable,CPR Eca certified drop cable |
||
製品の説明

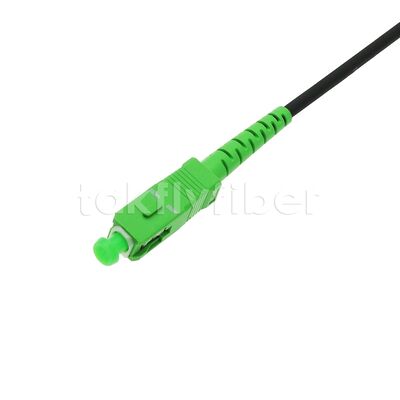

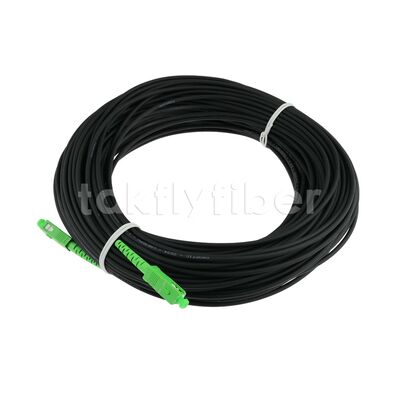

CPR Eca Certified 3.0mm TPU Round Drop Cable Fiber Optic Patch Cord SCAPC-SCAPC
CPR Eca Certified 3.0mm TPU Round Drop Cable Fiber Optic Patch Cord SCAPC-SCAPC
Takfly's 3.0mm TPU Round Drop Cable Fiber Optic Patch Cord SCAPC-SCAPC is designed for both indoor and outdoor applications. It is typically manufactured with SM G657A2 or SM G657B3 fiber, offering superior bending performance.
Takfly's 3.0mm TPU Round Drop Cable Fiber Optic Patch Cord SCAPC-SCAPC is designed for both indoor and outdoor applications. It is typically manufactured with SM G657A2 or SM G657B3 fiber, offering superior bending performance.
How to Order Optical Fiber Patch Cord
- Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
- Mode type: single mode (UPC and APC) / multi mode (PC)
- Cable diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
- Coating material: PVC / LSZH
- Fiber count: simplex / duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core and more
- Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
- Patch cord length: customized to your requirements
- MPO/MTP connector specifications: method (A type / B type / C type), male or female, fiber count (4/8/12/16/24/32 fiber)
3.0mm TPU Fiber Optic Patch Cord Specifications
| End face type | SC/APC-SC/APC |
|---|---|
| Fiber type | SM G657A2 colored with red color |
| Cable Diameter | 3.0±0.2mm |
| Insertion loss | ≤0.25dB for ≥97% of the connections |
| Return loss | APC≥60dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >70N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | Black |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | 3M, 7M, 50M, 100M, or customized |
Fiber Optic Patchcord Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
Fiber Optic Patchcord Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
Fiber Optic Patchcord Images
Why Choose TAKFLY - Our Advantages
Professional Manufacturer
- Over 25 years of manufacturing experience in fiber optic products - one-stop purchasing
- More than 450 assembly workers with 3+ years of experience
- 26+ R&D Engineers
- 16 sets of Germany imported Injection Machines and 10+ Cable Production Lines
- 30+ sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instruments; tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
- OEM branding available
- Worldwide exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, ICT, ISE, Fiberdays, AOTEC, etc.
- 24/7 after-sales service available
Quality Control
- Raw material incoming inspection before production
- Full inspection after every individual process
- Full inspection of production half-done
- Full inspection of finished products before packing
- Spot check before shipping
Delivery & Shipping
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
- Shipping: DHL, UPS, FEDEX, TNT, EMS (3-5 working days)
- Sea or air freight using your preferred forwarder or our partnered one
Payment Terms
T/T, PayPal, Western Union, and L/C accepted. Competitive pricing available for large quantity orders.
