LC Simplex 0.9mm Fiber Optic Pigtail APC SM G657A1
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | DF/OEM/Nuetral |
| 証明: | CE/ROHS/REACH/ISO9001/ISO14001 |
| モデル番号: | TK-SC/UPC 0.9mm |
お支払配送条件:
| 最小注文数量: | 交渉可能 |
|---|---|
| 価格: | negotiable denpend on QTY |
| パッケージの詳細: | ブリスターボックス+カートン |
| 受渡し時間: | 5~9 営業日 QTY に依存する |
| 支払条件: | ウェスタンユニオン,T/T,MoneyGram/Paypal |
| 供給の能力: | 1000pcs/日 |
|
詳細情報 |
|||
| 製品名: | LC シンプレックス 0.9mm 光ファイバー 豚尾 | インタークション損失: | ≤0.3dB |
|---|---|---|---|
| 返品損失: | APC SM≧60dB | ファイバーの種類: | SM G657A1 |
| 直径: | 0.9mm | コネクタタイプ: | LC/APC |
| ジャケット素材: | LSZH/PVC/PU | 色: | オレンジまたはカスタマイズ |
| 波長: | 1310nm,850nm | 長さ: | 30cmまたはカスタマイズされる |
| 動作温度: | -20℃〜70℃ | 繊維径: | 50/125 |
| 学年: | テレコムグレード | 証明書: | CE/ROHS/REACH |
| ハイライト: | 0.9mm simplex fiber optic pigtail,APC connector fiber optic pigtail,G657A1 single mode pigtail |
||
製品の説明

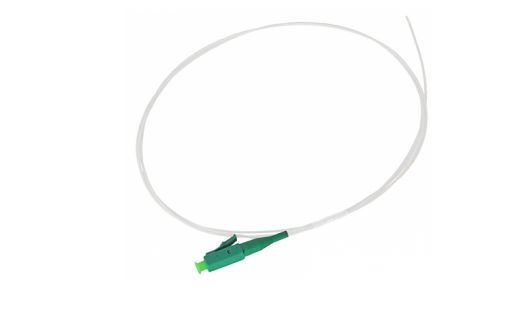

LC Simplex 0.9mm Fiber Optic Pigtail APC SM G657A1
Application
- CATV
- Telecommunication Networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
Specifications
| End face type | APC |
|---|---|
| Fiber type | SM G657A1 |
| Cable Diameter | 0.9mm |
| Insertion loss | ≤ 0.3 dB |
| Return loss | APC SM≥60dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | 0.9mm cable>5N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | Hytrel |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | 30cm or Customized |
| Packing | 12PCS 0.9mm color pigtails in one set |
Why choose TAKFLY - Advantages
Professional manufacturer
- With more than 25 years manufacturing experience in Fiber optic products
- More than 500 assembly workers with 5 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL & RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
