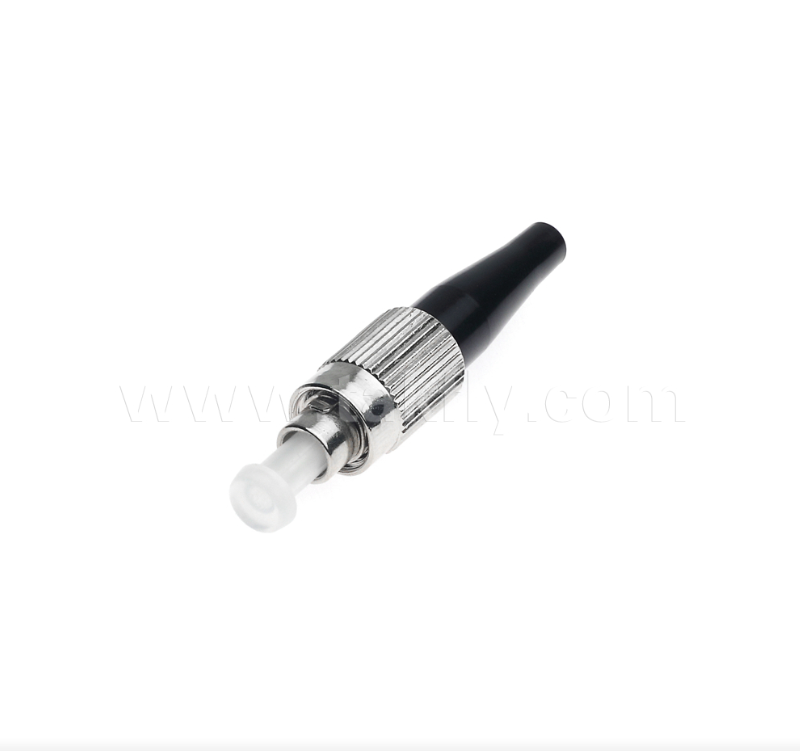

FC Fiber Optic Connector – Threaded Screw Lock, Low Insertion Loss, High Vibration Resistance
商品の詳細:
| 起源の場所: | 中国深センと中山 |
| ブランド名: | DF/OEM/Nuetral |
| 証明: | CE/ROHS/CPR EN50575/ISO9001 /ISO14001 |
| モデル番号: | FC |
お支払配送条件:
| 最小注文数量: | 1 |
|---|---|
| 価格: | Can be negotiation |
| パッケージの詳細: | カートン |
| 受渡し時間: | 5-9 作品は数量に応じて異なります |
| 支払条件: | T/T、ウェスタンユニオン、ペイパル |
| 供給の能力: | 4000pcs/week |
|
詳細情報 |
|||
| ハイライト: | FC fiber optic connector with threaded screw lock,low insertion loss fiber optic connector,high vibration resistance FC connector |
||
|---|---|---|---|
製品の説明

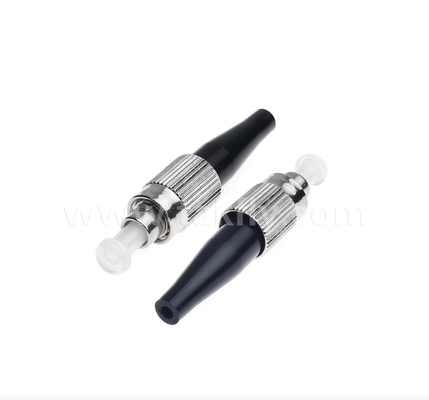

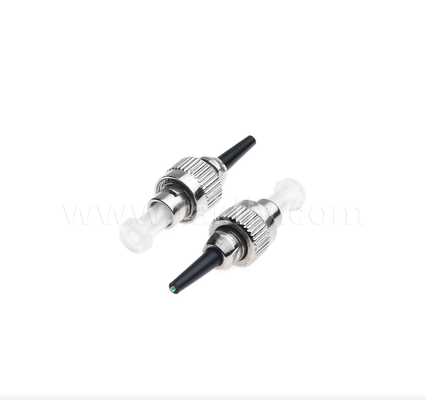

FC Fiber Optic Connector – Threaded Screw Lock
The FC fiber optic connector is a high-performance, detachable active connection device designed to establish precise physical contact between optical fibers. It accurately aligns the end faces of two fibers, maximizing optical energy coupling from the transmitting fiber to the receiving fiber while minimizing signal degradation.
Manufactured by TAKFLY, this connector features a metal threaded screw-on coupling mechanism that provides a secure, vibration-resistant connection - making it the preferred choice for telecom central offices, industrial networks, and test instruments where connection stability is critical. Unlike push-pull designs, the FC's screw-lock system ensures the connector remains firmly mated even under mechanical shock or cable strain.
The connector is available with either UPC (Ultra Physical Contact) or APC (Angled Physical Contact) polish options. The PC/UPC version delivers excellent return loss for standard applications, while the APC 8° angled polish effectively suppresses back reflection for high-bandwidth and analog transmission systems.

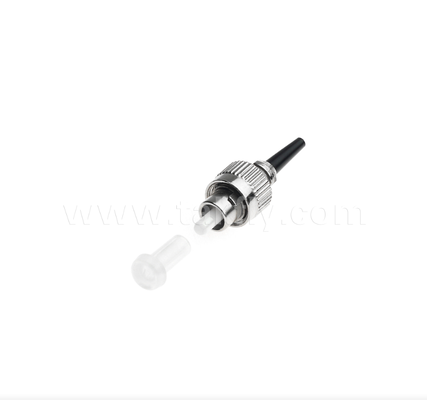

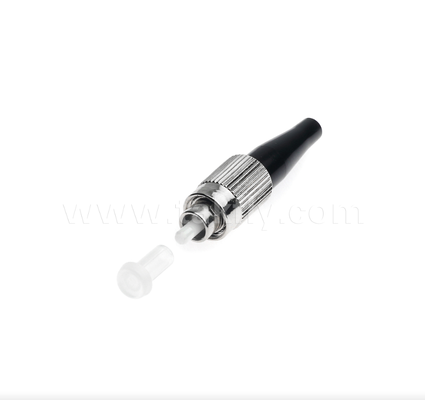

Anti-dust Function by Dust Cap
Each fiber optic connector includes a dust cap that protects the ferrule from dust and keeps it clean.
Selected High Quality Ferrule
Available with high quality ferrule and professional polishing technology, providing precise matching for optical endface to achieve stable transmission and efficient connection.
Key Features
- FC Simplex or Duplex configurations
- ANSI, IEC, TIA/EIA, NTT and JIS standard compatible
- UL-rated plastic housing and boot in variety of colors with 0.9mm, 2.0mm or 3.0mm options
- Precision mechanical dimensions
- Zirconia ferrule PC or 8 degree APC diameter 125~128 um high concentricity
- Single mode, Multimode and Angle PC options
- Multi-piece type or one-piece type available
- All parts compliant with ROHS standards
Applications
- Telecommunication systems
- CATV networks
- LAN & WAN infrastructure
- Network equipment
- Broadband systems
- FTTH deployments
Technical Parameters
Order Information
Why Choose TAKFLY?
26 Years of Manufacturing Experience in Fiber Optic Products
Experienced Assembly Team
More than 80 assembly workers with 6+ years of experience
Strong R&D Capability
More than 10 R&D engineers
Advanced Production Equipment
16 sets of German imported injection machines and 16 production lines
Comprehensive Testing Facilities
More than 30 sets of testing instruments including OTDR, ILD, VFL, RL, IL, tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
OEM Branding Accepted - Custom logo/branding available
Quality Control Process
- Incoming inspection: Spot check of raw materials before production
- In-process inspection: Full inspection at every individual process completion
- Pre-packaging inspection: Full inspection of finished products before packing
- Pre-shipping inspection: Spot check before shipping
Industry Participation
Active participation in major industry exhibitions including Source Electronics Exhibition, OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, and events in China.
Delivery Information
Samples
1-3 working days
Mass Production Orders
3-7 working days
Packaging
Plastic bag, carton, and pallet options available according to your requirements
