TK-413 Fiber Optical Talk | For CATV & Telecommunication & Data Networks
商品の詳細:
| 起源の場所: | 中国、深Shenzhen |
| ブランド名: | DF/OEM/Nuetral |
| 証明: | CE/ROHS/REACH/ISO9001/ISO14001 |
| モデル番号: | TK-413 光ファイバートーク |
お支払配送条件:
| 最小注文数量: | 交渉可能 |
|---|---|
| 価格: | negotiable denpend on QTY |
| パッケージの詳細: | ブリスターボックス+カートン |
| 受渡し時間: | 5~9 営業日 QTY に依存する |
| 支払条件: | ウェスタンユニオン,T/T,MoneyGram/Paypal |
| 供給の能力: | 1000個/日 |
|
詳細情報 |
|||
| 製品名: | TK-413 光ファイバートーク | CATV、通信、データネットワーク向け | 波長（nm）: | 1310/1550 |
|---|---|---|---|
| エミッタタイプ: | FP-LD | 伝送距離(km): | 80 |
| ダイナミックレンジ(dB): | ≥ 33 | 光コネクタ: | FC/PC |
| 動作温度 ((°C): | -10℃~60℃ | 寸法: | 198X102X50 |
| 重さ: | 310g | 製品名: | コーニング、YOFC、OFS、ドラカ |
| ハイライト: | Fiber optical talk for CATV networks,Fiber optic tool for telecommunication,Data network fiber optic talk |
||
製品の説明

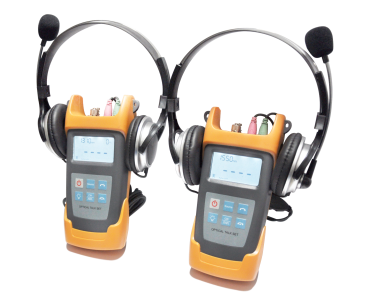

TK-413 Fiber Optical Talk Set
For CATV, Telecommunication & Data Networks
The TK-413 Fiber Optical Talk Set is an intelligent and efficient instrument that combines the functions of both a digital optical phone and a stabilized light source in one compact unit.
Product Overview
This versatile tool is widely used for installation, optical testing, maintenance, and fiber attenuation value testing in data networks, CATV, and telecommunication networks. The TK-413 Talk Set enables full-duplex communication with high-quality connection unaffected by distance.
Applications
- Maintenance in Telecom Networks
- CATV System Maintenance
- Fiber Optic Laboratory Testing
- Other Fiber Optic Measurement Applications
Key Features
- Full-duplex digital communication with high-quality conversation and low background noise
- Compatible with Optical Clip-on Coupler for online communications
- Combines digital optical phone and stabilized light source functions
- Large LCD display with backlight for clear visibility
- Low battery power indication for operational awareness
Technical Specifications
| Specification | Details |
|---|---|
| Type | TK-413 |
| Wavelength (nm) | 1310/1550 |
| Emitter Type | FP-LD |
| Transmission Distance (KM) | 80 |
| Dynamic Range (dB) | ≥ 33 |
| Output Power (dB) | -5~-7 |
| Modulation (Hz) | CW, 270, 1K, 2K |
| Output Stability (dB, 30min, 20°C) | ≤ 0.1 |
| Power Supply | 3 pcs 1.5V Alkaline Batteries / 8.4V Power Supply Adaptor |
| Battery Operating Time | 5 hours |
| Optical Connector | FC/PC |
| Operating Temperature (°C) | -10 ~ +60 |
| Storage Temperature (°C) | -25 ~ +70 |
| Dimension (mm) | 198 × 102 × 50 |
| Weight (g) | 310 |
| Additional Notes | Provides Fiber Optic Clip-on Coupler device according to customer needs |
Standard Package Contents
| Model | Includes |
|---|---|
| TK-413 | Optical Talk Set (pair), Headset, 3 pcs 1.5V Alkaline Batteries, 8.4V Power Supply Adaptor, User Manual, Cotton swabs and soft carrying case |
Why Choose TAKFLY?
- 26+ years manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany imported Injection Machines and 16 Production Lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, and more
Quality Control Process
- Raw material incoming inspection before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks to ensure quality
Delivery Information
Samples: 1-3 working days
Mass Production Order: 3-7 working days
Packaging: Plastic Bag, Carton and Pallet available per request
Frequently Asked Questions
How can I get your catalogue and price list?
Please provide your email or contact information through our website for catalogue and pricing.
Can I negotiate the prices?
Yes, we consider discounts for multiple container loads of mixed goods.
How much will the shipping charges be?
Shipping charges depend on shipment size and method. We provide quotes upon request.
Can I visit you?
Yes, our factory is in Shenzhen, China. Please contact us to schedule an appointment.
What if there is quality problem when we get the goods?
If quality issues arise, provide photos for our reference. Our QC department will investigate and provide solutions while implementing future quality improvements.
What is your terms of packing?
Standard packing includes blister box and cartons. Customized packing available per customer requirements.
What is your terms of payment?
T/T 30% deposit, 70% balance before delivery. We provide product and package photos before final payment.
What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU available.
How about your delivery time?
Generally 5-7 working days after receiving advance payment. Specific timing depends on items and order quantity.
Can you produce according to the samples?
Yes, we can produce based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
