16 Channel Video Digital Optical Converter: AHD/CVI/TVI to BNC to Fiber Optic Video Transmitter/Receiver
商品の詳細:
| 起源の場所: | 中国、深Shenzhen |
| ブランド名: | DF/OEM/Nuetral |
| 証明: | CE/ROHS/REACH/ISO9001/ISO14001 |
| モデル番号: | 16チャンネルビデオデジタル光コンバーター |
お支払配送条件:
| 最小注文数量: | 交渉可能 |
|---|---|
| 価格: | negotiable denpend on QTY |
| パッケージの詳細: | ブリスターボックス+カートン |
| 受渡し時間: | 5~9 営業日 QTY に依存する |
| 支払条件: | ウェスタンユニオン,T/T,MoneyGram/Paypal |
| 供給の能力: | 1000個/日 |
|
詳細情報 |
|||
| 製品名: | 16 チャンネル ビデオ デジタル光コンバータ: AHD/CVI/TVI から BNC への光ファイバー ビデオ トランスミッター/レシーバー | ビデオチャンネル: | 16 |
|---|---|---|---|
| ビデオ帯域幅: | 0～6.5MHz | サンプルレート: | 8ビット/10ビット |
| ノイズ比率へのシグナル: | ≧65dB | 信号システム: | PAL / NTSC / SECAM |
| データインターフェース: | RS485 | データレート: | DC-256Kbps |
| 製品名: | コーニング、YOFC、OFS、ドラカ | 伝達波長: | 1310nm/1550nm |
| 光インターフェース: | FC/PC | 光学ダイナミックレンジ: | 17dB |
| 動作温度:: | -10℃〜 +55℃ | ||
| ハイライト: | 16 channel AHD to fiber optic converter,CVI TVI BNC fiber optic transmitter,digital optical video receiver with warranty |
||
製品の説明
16 Channel Video Digital Optical Converter: AHD/CVI/TVI to BNC to Fiber Optic Video Transmitter/Receiver
This advanced digital optical converter series employs cutting-edge all-digital communication technology, capable of simultaneously transmitting 32 forward video channels and 1 reverse RS485/422 data channel over a single fiber optic cable. Utilizing non-compressed digital video encoding compatible with PAL, NTSC, and SECAM formats, it delivers broadcast-level image quality with exceptional clarity.
Featuring plug-and-play design for simplified installation without on-site commissioning, these converters operate reliably across diverse environments with prolonged stability. LED status indicators monitor power and operational parameters, while comprehensive lightning-proof design ensures equipment stability with no electromagnetic, radio frequency, or ground current interference.
The product combines high-quality digital transmission with long-distance capabilities and competitive pricing, making it an ideal solution for demanding fiber-optic video transmission applications.
Applications
- Security & Safe City building security monitoring
- Highway and railway transportation remote monitoring
- Urban public transport monitoring systems
- Security applications
- Operator unattended engine room monitoring
- Bank security monitoring
- Power system remote monitoring
- Industrial and mining production process monitoring
- Water flood control and reservoir site monitoring
- Airport security monitoring
- Radio and television image transmission
- School campus and examination room monitoring
- High-rise buildings and intelligent community security
- Customs barrier and warehouse video surveillance
- Petrochemical facility monitoring
- Prison video surveillance systems
- Government agency monitoring and alarm systems
- Security areas, command and control positions visualization
- Forest fire command systems
Key Features
- Fully-digital, non-compressed broadcast fiber optic transmission
- Ultra-optical dynamic range, no adjustment required during use
- Compatible with PAL, NTSC, SECAM and other video formats
- RS232/485/422 data communication
- Three-level lightning protection
- Industrial design with high reliability for harsh environments
- Automatic power adjustment, temperature compensation, and overload protection with auto-restoration
- Full Surface Mount Technology
- Use of standard 19" 1.2U Chassis for easy installation
Performance Specifications
Video Indicators
| Parameter | Specification |
|---|---|
| Video Channels | 16 |
| Video Bandwidth | 0 ~ 6.5 MHz |
| Sample Rate | 8bit/10bit |
| Signal to Noise Ratio | ≥ 65dB |
| Differential Gain | <1% (typical) |
| Differential Phase | <0.8° (typical) |
| Vertical Tilt | <0.5% (max) |
| Input/Output Impedance | 75Ω (unbalanced) |
| Input/Output Level | 1.0Vpp (typical) |
| Signal System | PAL/NTSC/SECAM |
Data Indicators
| Parameter | Specification |
|---|---|
| Data Interface | RS485/422 (optional) |
| Physical Interface | Five industrial terminal |
| Data Rate | DC-256Kbps |
| Bit Error Rate | <10E-12 |
Optical Indicators
| Parameter | Specification |
|---|---|
| Transmission Wavelength | 1310nm/1550nm |
| Optical Interface | FC/PC |
| Transmit Optical Power | -8dB |
| Receiver Sensitivity | -25dB |
| Optical Dynamic Range | 17dB |
| Maximum Optical Loss | 14dB |
| Transmission Distance | More than 20KM (single) |
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -10℃ ~ +55℃ |
| Humidity | 0 ~ 95% (no condensation) |
| Power Consumption | 2.5W @ DC5V |
| Dimensions | 483mm (length) x170mm (W) x55mm (H) |
| Weight | 6.0kg |

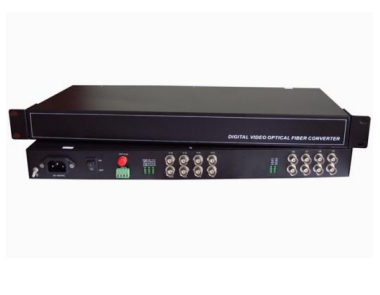

Product Images
Why Choose TAKFLY?
- More than 26+ years manufacturing experience in fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 sets of Germany imported Injection Machines and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instruments; tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
- OEM Brand acceptance
- Exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check raw material incoming inspection before production
- Full check after every individual process completion
- Full check of production half-done items
- Full check of finished products before packing
- Spot check before shipping
Delivery Information
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet available according to request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
A4: Certainly, our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
A5: If quality issues arise upon receipt, please provide photos for our reference. Our QC department will investigate and provide appropriate solutions, and we will implement improvements for future production.
Q6: What is your terms of packing?
A6: Generally, we pack goods in blister boxes and cartons, and can accommodate custom packaging requests.
Q7: What is your terms of payment?
A7: T/T 30% deposit, with 70% balance due before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, delivery takes 5-7 working days after receiving advance payment. Specific timing depends on items ordered and order quantity.
Q10: Can you produce according to the samples?
A10: Yes, we can manufacture according to your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
