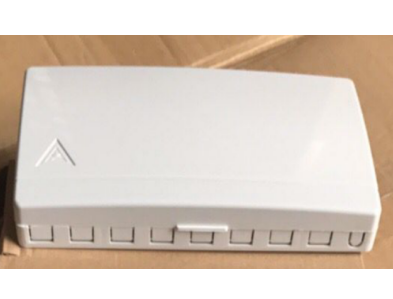

FTTH Desk Box 8 ports Desk Mounted For Network Telecommunication & LAN/WAN From China
商品の詳細:
| 起源の場所: | 中国、深Shenzhen |
| ブランド名: | DF/OEM/Nuetral |
| 証明: | CE/ROHS/REACH/ISO9001/ISO14001 |
| モデル番号: | TKS-1806-08C |
お支払配送条件:
| 最小注文数量: | 交渉可能 |
|---|---|
| 価格: | negotiable denpend on QTY |
| パッケージの詳細: | ブリスターボックス+カートン |
| 受渡し時間: | 5~9 営業日 QTY に依存する |
| 支払条件: | ウェスタンユニオン,T/T,MoneyGram/Paypal |
| 供給の能力: | 1000個/日 |
|
詳細情報 |
|||
| 製品名: | FTTH デスク ボックス 8 ポート デスク マウント ネットワーク通信 & LAN/WAN 中国から | モデル: | TKS-1806-08C |
|---|---|---|---|
| 外形寸法(mm)): | 205*110*28 | アダプタ: | 8 SC |
| 材料: | ABS | 色: | 白 |
| 繊維の貯蔵: | G.657/G652 | 製品名: | コーニング、YOFC、OFS、ドラカ |
| ハイライト: | FTTH desk box 8 ports,desk mounted fiber optic box,LAN/WAN termination box with warranty |
||
製品の説明
Professional fiber termination box designed for FTTx communication network systems, serving as a critical connection point between feeder cables and drop cables.
TKS-1806-08C is a desk mounted or wall mounted termination box for end user, indoor use, capable to handle fiber fusion, fiber cables and pigtails.
- Telecommunication subscriber loop systems
- Fiber to the Home (FTTH) installations
- LAN/WAN network infrastructure
- Support termination, splicing and storage for fiber optic cable systems
- Compatible with G.657 fiber standards
- Compact structure and perfect fiber management
- Engineered fiber routing protects bend radius to ensure signal integrity
| Parameter | Value | Remark |
|---|---|---|
| Model | TKS-1806-08C | |
| Outside Dimension (mm) | 205*110*28 | |
| Material | ABS | |
| Color | White | |
| Storage of fibers | G.657/G652 | |
| Splice capacity | 8 single fiber | |
| Splice Method | Fusion Splice | 45mm sleeve |
| Adapter Port | 8SC | Adapter type and count |
| Input cable (mm) | Max 5.0 | From side or bottom |
- 26+ years of specialized fiber optic manufacturing experience
- 450+ skilled assembly workers with 3+ years average experience
- 10+ dedicated R&D engineers for continuous product improvement
- 16 sets of German injection machines with 16 production lines
- 30+ advanced testing machines including OTDR, 3D, VFL, IL & RL test instruments
- Tension strength testers and crush resistance testers
- Power meter testers and comprehensive light checking equipment
- OEM branding services available
- Active participation in major international exhibitions: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
- Raw material inspection before production begins
- Full inspection after each manufacturing process
- Comprehensive half-done production quality checks
- Complete finished product inspection before packaging
- Final spot check verification before shipping
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging options: Plastic bag, carton, and pallet available according to customer requirements
Please provide your email or contact information through our website to receive our comprehensive catalogue and current price list.
Yes, we offer competitive pricing and may consider discounts for multiple container loads of mixed goods.
Shipping charges depend on your shipment size and preferred shipping method. We provide detailed cost breakdowns upon request.
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment for a facility tour.
If you encounter quality issues upon unpacking, please document with photos for our reference. Our QC department will investigate thoroughly and provide optimal solutions, implementing improvements for future production.
Standard packaging includes blister boxes and cartons. We accommodate custom packaging requests to meet specific customer requirements.
Standard terms: T/T 30% deposit, 70% balance before delivery. We provide product and packaging photos before final payment.
We support EXW, FOB, CFR, CIF, and DDU delivery terms to accommodate global shipping requirements.
Standard delivery: 5-7 working days after receiving advance payment. Specific timing depends on product items and order quantity.
Yes, we specialize in manufacturing products based on customer samples or technical drawings with precision and quality.
If you're interested in our fiber optic products or have any technical questions, our engineering team is available to assist you at any time!
