ADSS-100M All-Dielectric Self-Supporting Aerial Cable – 4 to 96 Fibers, 100m Span
商品の詳細:
| 起源の場所: | 広東省、シンセン |
| ブランド名: | TAKFLY |
| 証明: | CE,ROHS,REACH,ISO9001,ISO14001 |
| モデル番号: | DX装甲型T1771 |
お支払配送条件:
| 最小注文数量: | 1個 |
|---|---|
| 価格: | US$0.01 ~ US$1200/PC |
| パッケージの詳細: | スポン + 箱 + カートン |
| 受渡し時間: | 3～7営業日 |
| 支払条件: | L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム |
|
詳細情報 |
|||
| 曲げ半径: | 20D/15D | インストール: | 空中 |
|---|---|---|---|
| シース: | LSZH | コネトコー: | SC/PCからSC/PCへ |
| 直径: | 8.5~16mm | ケーブルの種類: | シングルモード |
| 動作温度: | -40℃～+70℃ | 許可された引張強度: | 100N <1000N |
| 長さ: | 2000m/ロールまたはカスタマイズ | 繊維の数: | 2コア/4コア |
| 輸送パッケージ: | 木製のドラム | パッキング: | 木製ダルム |
| ジャケット: | PVC | 設置方法: | 屋内/屋外 |
| コネクタの種類: | LC/UPC | 繊維数: | 12 |
| 外着の素材: | PE | コア: | 12選択可能 |
| 保証期間: | 20年 | クラッシュ抵抗: | ≥1000N/100mm |
| ケーブル構造: | 弓型 緊密なバッファ | 製品コード: | GJYXCH-1B |
| アウターシース材料: | MDPE | 抗張力: | ≥100N |
| 最大張力強度: | 1000n | モデル: | SC/APC~SC/APC |
| 挿入損失: | 0.2dB | 外径: | 4.5mm または顧客の要求に応じて |
| 表地: | 金属ワイヤ | 標準: | IEC60794 |
| 強度メンバー: | OEM | 繊維数: | 12コア |
| 製造年: | 2010年 | 外装シース色: | 、灰色黒い、白い |
| 波長をテストします: | 1310nm~1550nm | ケーブル モデル: | GJPFJV |
| 振動: | ≤0.2dB | パッケージ: | 木のRam |
| 強化: | 鉄,KFRP,FRP | アウターシース: | PE |
| ファイバーコア: | 2~144コア | データレート: | 4*10G |
| ファイバーオプション: | G652D,G657A,Om1,Om2,Om3,Om4 | わずかな重量: | 83 |
| ケーブルの遮断波長: | λcc≤1260um | 方法を取付けなさい: | 塵/直接埋められた取付け |
| チューブ: | 緩い管の設計 | 材料: | PE/LSZH |
| ポート: | 寧波 | 色: | 黄色またはカスタマイズ |
| ジャケット素材: | PVC | コア数: | あなたの要求 |
| 配送: | TNT,DHL,UPS,FEDEX または EMS | 屋内または屋外: | 屋内 |
| ドラムサイズ: | 300×300×300 | 繊維長: | 1Mまたはカスタマイズ |
| ファイバーモード: | シングルモード G652D G657A | キーワード: | ADSSケーブル |
| ネットワーク: | 4g、3G | OEM: | いらっしゃいませ |
| 運転手番号: | ≥10 | ||
| ハイライト: | ADSS fiber optic cable 100m span,All-dielectric aerial cable 96 fibers,Self-supporting fiber optic cable 4 fibers |
||
製品の説明

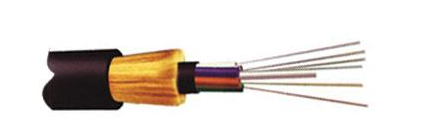

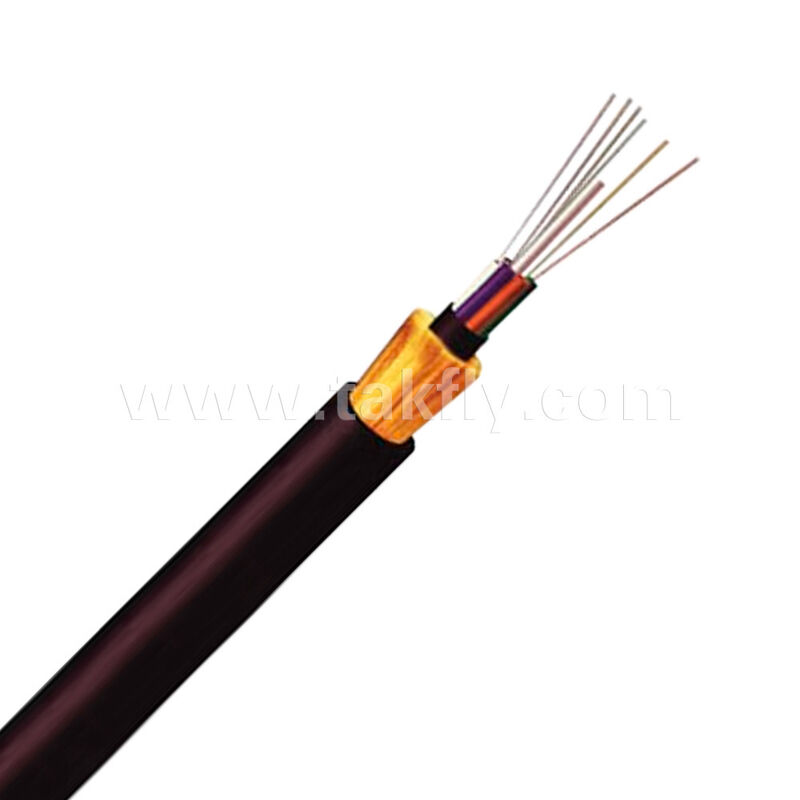

ADSS-100M All-Dielectric Self-Supporting Aerial Cable – 4 to 96 Fibers, 100m Span
This non-metallic, fully dielectric overhead cable is designed for a standard span of 100 meters. Available fiber counts: 4, 6, 12, 24, 48, 96 (G.652D single‑mode). The cable can be installed directly on poles or towers without a steel messenger. Suitable for power transmission lines (10kV-220kV) and telecommunication networks.
Fiber Optical & Geometrical Data (G.652D)
Attenuation, Dispersion & PMD Parameters
| Parameter | Unit | Before Cabling | After Cabling |
|---|---|---|---|
| Attenuation @1310 nm | dB/km | ≤0.34 | ≤0.38 |
| Attenuation @1550 nm | dB/km | ≤0.21 | ≤0.28 |
| Zero dispersion wavelength | nm | 1300-1324 | - |
| Zero dispersion slope | ps/(nm²*km) | ≤0.092 | - |
| Cable cut‑off wavelength λcc | nm | ≤1260 | - |
| Dispersion coefficient @1550 nm | ps/(nm*km) | ≤18 | - |
| Dispersion coefficient @1625 nm | ps/(nm*km) | ≤22 | - |
| PMD (max. individual fiber) | ps/√km | ≤0.1 | - |
| PMD (link design, M=20, Q=0.01%) | ps/√km | ≤0.06 | - |
| PMD (typical) | ps/√km | 0.04 | - |
| Group index (typ.) @1310 nm | - | 1.466 | - |
| Group index (typ.) @1550 nm | - | 1.467 | - |
| Macro‑bend loss (1 turn, 16mm radius) @1550 nm | dB | ≤0.05 | - |
| Macro‑bend loss (100 turns, 25mm radius) @1550 nm | dB | ≤0.05 | - |
| Macro‑bend loss (100 turns, 30mm radius) @1550 nm | dB | ≤0.05 | - |
Fiber Geometry Specifications
| Parameter | Unit | Value |
|---|---|---|
| Cladding diameter | µm | 125 ± 0.7 |
| Cladding non‑circularity | % | ≤1.0 |
| Coating diameter | µm | 235-250 |
| Coating/cladding concentricity error | µm | ≤12.0 |
| Coating non‑circularity | % | ≤6.0 |
| Core/cladding concentricity error | µm | ≤0.6 |
| Mode field diameter (MFD) @1310 nm | µm | 8.7-9.5 |
| Mode field diameter (MFD) @1550 nm | µm | 9.8-10.8 |

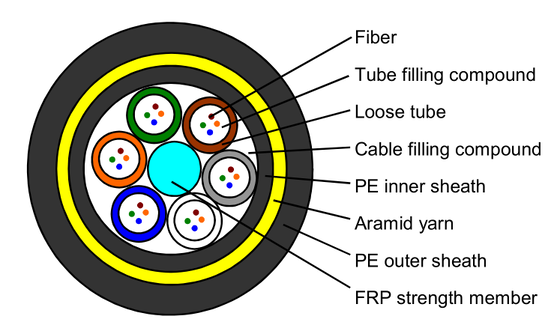

Cable Construction & Mechanical Specifications
The table below details loose tube stranded design for 24, 48 and 96 fibers. Configurations for 4, 6 and 12 fibers are available on request.
| Parameter | 24‑Fiber | 48‑Fiber | 96‑Fiber |
|---|---|---|---|
| Structure type | 1+6 | 1+6 | 1+8 |
| Central strength member (FRP) diameter | 2.0 mm | 2.0 mm | 2.0 / 3.7 mm |
| Loose tube material | PBT | PBT | PBT |
| Loose tube diameter | 2.0 mm | 2.0 mm | 2.0 mm |
| Number of loose tubes | 4 | 4 | 8 |
| Fibers per tube | 6 | 12 | 12 |
| Number of fillers | 2 | 0 | 0 |
| Water‑blocking | yarns + tape | yarns + tape | yarns + tape |
| Ripcords | 2 pieces | 2 pieces | 2 pieces |
| Peripheral strength member | Aramid yarns | Aramid yarns | Aramid yarns |
| Outer sheath material | MDPE (black) | MDPE (black) | MDPE (black) |
| Sheath nominal thickness | 1.7 mm | 1.7 mm | 1.7 mm |
| Cable diameter (±0.5 mm) | 9.5 mm | 10.0 mm | 11.8 mm |
| Cable weight (±10%, kg/km) | 70 kg/km | 75 kg/km | 110 kg/km |
| Maximum allowed tensile (MAT) | 2700 N | 2700 N | 2700 N |
| Span length | 100 m | 100 m | 100 m |
| Crush resistance - short term | 2200 N/100mm | 2200 N/100mm | 2200 N/100mm |
| Bending radius - operation | 15 × OD | 15 × OD | 15 × OD |
| Bending radius - installation | 25 × OD | 25 × OD | 25 × OD |
| Temperature - operation | -40℃ ~ +70℃ | -40℃ ~ +70℃ | -40℃ ~ +70℃ |
| Temperature - installation | -20℃ ~ +60℃ | -20℃ ~ +60℃ | -20℃ ~ +60℃ |
| Temperature - storage/shipping | -40℃ ~ +70℃ | -40℃ ~ +70℃ | -40℃ ~ +70℃ |
OD = Cable outer diameter
Packing, Drum & Cable Marking
| Item | Specification |
|---|---|
| Standard reel length | 2.0 - 4.0 km per wooden composite drum (export type) |
| Fumigation | Report and stamp provided upon request |
| Cable marking | Inkjet printed every meter: year, cable type, fiber count, length. Custom marking available. |
Applicable Standards
- DL/T 788‑2016 / YD/T 980‑2002
- IEC 60794‑4 / IEEE 1222
- Telcordia GR‑20
Ordering Options
| Model | Fiber Count | Span | Sheath Color |
|---|---|---|---|
| ADSS‑100M‑4X | 4 | 100 m | Black |
| ADSS‑100M‑6X | 6 | 100 m | Black |
| ADSS‑100M‑12X | 12 | 100 m | Black |
| ADSS‑100M‑24X | 24 | 100 m | Black |
| ADSS‑100M‑48X | 48 | 100 m | Black |
| ADSS‑100M‑96X | 96 | 100 m | Black |
For detailed construction drawings of 4/6/12‑fiber variants, please contact us.
