10G Fiber Media Converter with 17-slot multifunctional management Factory Direct Sales Reliable Network Connection
商品の詳細:
| 起源の場所: | 中国、深Shenzhen |
| ブランド名: | DF/OEM/Nuetral |
| 証明: | CE/ROHS/REACH/ISO9001/ISO14001 |
| モデル番号: | 17 スロットの多機能管理を備えた 10G ファイバー メディア コンバーター |
お支払配送条件:
| 最小注文数量: | 交渉可能 |
|---|---|
| 価格: | negotiable denpend on QTY |
| パッケージの詳細: | ブリスターボックス+カートン |
| 受渡し時間: | 5~9 営業日 QTY に依存する |
| 支払条件: | ウェスタンユニオン,T/T,MoneyGram/Paypal |
| 供給の能力: | 1000個/日 |
|
詳細情報 |
|||
| 製品名: | 17 スロットの多機能管理を備えた 10G ファイバー メディア コンバーター | アクセス方法: | 1X10G RJ45 1X10G ベース-FX |
|---|---|---|---|
| 消費電力: | <8W | 動作温度: | 0～50℃ |
| 湿度: | 5％〜90％ | 店の温度: | -40~70 °C |
| 寸法: | 112.8mm(W)×77.2mm(D)×23mm(H)(カード) | 保証: | 1〜5歳 |
| 製品名: | コーニング、YOFC、OFS、ドラカ | ||
| ハイライト: | 10G fiber media converter,17-slot fiber optic converter,multifunctional fiber media converter |
||
製品の説明

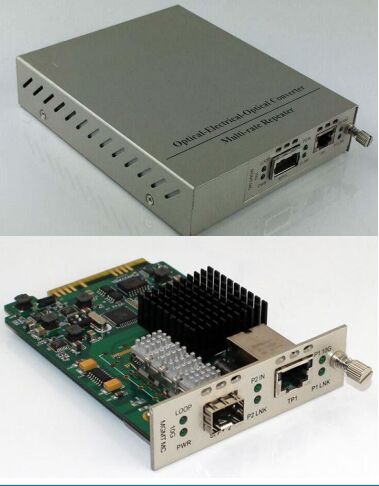

10G Fiber Media Converter with 17-Slot Multifunctional Management
Factory direct sales providing reliable network connection solutions.
Product Overview
The 17-slot multifunctional management system is an advanced Ethernet and SDH transmission equipment platform. It supports multiple services including managed media converter cards, OEO converter cards, 1+1 protection switching cards, and CWDM/DWDM MUX/DEMUX cards. With support for SNMP, WEB, CONSOLE, and TELNET protocols, this system offers robust management functionality and easy operation to meet diverse customer requirements.
Key Features
- Support 10G full duplex autosensing and auto-MDI/MDIX
- 10Gbase-T to 10Gbase-SR/LR/ER/ZR conversion capability
- 3R function for stable data transmission with minimal delay
- Support for Jumbo frames and transmission length optimization
- DMI (Diagnostic Monitoring Interface) function for optical transceivers
- Support for 850nm, 1310nm, 1550nm and DWDM/CWDM wavelengths per ITU-T standards
- Loopback functionality for precise failure location and link testing
- Economical bandwidth management with powerful network management (Web, SNMP, Console)
- Hot plug capability and easy installation with comprehensive LED indicators
- Compatible with 2U chassis (17 slots) and standalone use
Technical Parameters
| Interface Type | Specifications |
|---|---|
| Access Method | 1X10G RJ45 1X10G base-FX |
| Power Dissipation | <8W |
| Operating Temperature | 0 ~ 50 ℃ |
| Humidity | 5%~90% |
| Storage Temperature | -40~ 70 ℃ |
| Dimension | 112.8mm (W)×77.2mm(D)×23 mm(H) (Card) |
Why Choose TAKFLY
- 26+ years of fiber optic manufacturing experience
- 450+ assembly workers with 3+ years experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany-imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment for quality assurance
- OEM branding accepted
- Global exhibition participation
Quality Control
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
Q6: What is your terms of packing?
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
Q7: What is your terms of payment?
T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to the samples?
Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
