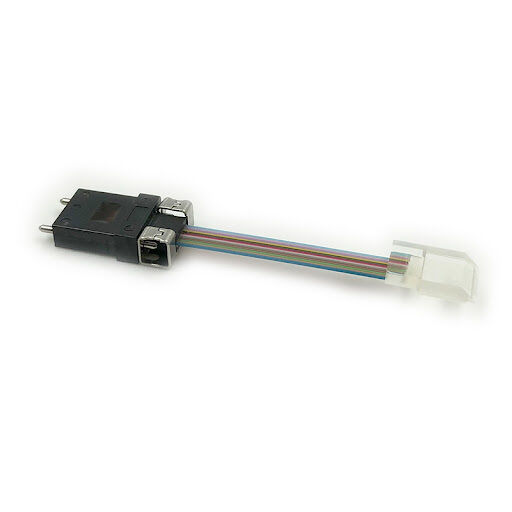

12F MT Male -FA Array ribbon fiber optic SM G657A1 fiber for CPO

12F MT Male -FA Array ribbon fiber optic SM G657A1 fiber for CPO

As 100G Ethernet emerges as the definitive trend in high-speed networking, the use of 100G optical modules has grown exponentially, cementing its status as the most widely adopted and fastest-expanding Ethernet connection type. The pervasive deployment of 100G links in data centers and network backbones is also fueling the rapid rise in demand for 400G solutions.

To drive down the cost of 100G implementations, optical module and component suppliers are actively sourcing and developing competitive 100G optical modules and components, while simultaneously expanding their capabilities to address the next-generation 400G and 800G speed segments.

Would you like me to refine one of these versions further to match a specific tone (e.g., more technical for engineering docs, or more sales-oriented for marketing materials)?

The demand for higher density and higher speed connections places more stringent demands on the internal space requirements of optical modules. MT ferrules and fiber optic assemblies, as high-performance, high-density connection components, are widely used in high-speed optical module connections.

Utilizing the small size and multi-channel nature of MT ferrules to achieve parallel transmission of multiple optical paths makes them very easy to use as external optical interfaces in high-speed optical modules.

Key Features of FA-MT Fiber Jumper

• Ultra-low Insertion Loss & High Return LossBoasts exceptionally low insertion loss (typically IL≤0.35 dB) and exceptional return loss (RL≥55 dB), ensuring minimal signal attenuation and superior optical performance for high-speed transmission systems.

• High Precision & CustomizationFeatures a precise core pitch of 250±0.5 μm with customizable parameters including fiber MFD (Mode Field Diameter), polishing angles (e.g., 42.5∘ for FA, 8∘ for MT), and length tolerance controlled within ±0.15 mm. Supports flexible configuration for diverse application needs.

• High-Density Multi-channel TransmissionIntegrates 8F/12F/24F fiber channels in a compact design, enabling high-density parallel optical transmission. Ideal for 40G/100G/400G/800G high-speed network interconnects, significantly improving space utilization in data centers and telecom equipment

• Wide Operating Wavelength & CompatibilityCovers critical operating wavelengths of 1310nm/1550nm for standard optical communication systems, with AR coating (1260nm-1650nm, R<0.25%) ensuring stable performance across broad spectrum ranges.

• Reliable Environmental AdaptabilityOperates stably in a wide temperature range (-40°C to +85°C) and meets industry standards (e.g., GR-1435, GR-1221, RoHS). Withstands rigorous testing, including durability, temperature cycling, and bending resistance, for long-term reliable operation

• Compact & Space-Saving DesignMiniaturized form factor with precise mechanical alignment (via guide pins) enables seamless integration into tight-space devices like QSFP/QSFP28 optical transceivers, AOC (Active Optical Cables), and switching equipment.

Parameter
