MT-2 Mini MT Patchcord with Low Insertion Loss and Precision Length Tolerance for QSFP Modules
商品の詳細:
| 起源の場所: | 深セン、中国 |
| ブランド名: | OEM |
| 証明: | CE/ROHS/REACH/ISO9001/ISO14001 |
| モデル番号: | MPO MTP |
お支払配送条件:
| 最小注文数量: | 1 |
|---|---|
| 価格: | 5.99~19.99US$/PC |
| パッケージの詳細: | カートン箱を使って |
| 受渡し時間: | 3～7営業日 |
| 支払条件: | T/T、ウェスタンユニオン、ペイパル |
| 供給の能力: | 週に5万個 |
|
詳細情報 |
|||
| 製品名: | MT-2 ミニ MT パッチコード、SMG657A、OM3、OM4 (QSFP、QSFP+、QSFP28、100G PSM4 用) | ファイバーコア: | 2F/4F/8F/12F/24F |
|---|---|---|---|
| ファイバーモード: | OM2、OM3、OM4、OM5; OS1、OS2 | 研磨タイプ: | APCまたはPC |
| 性別: | 男性、女性 | 損失: | 低損失または標準損失 |
| 繊維長: | 20mmから50mm | 繊維の形状: | リボンのタイプ |
| 長さの許容差: | +0.3/-0mm～+0.5/-0mm | ||
| ハイライト: | Low Insertion Loss MT-2 Mini MT Patchcord,Precision Length Tolerance MTP Patchcord,QSFP Compatibility Fiber Optic Patchcord |
||
製品の説明

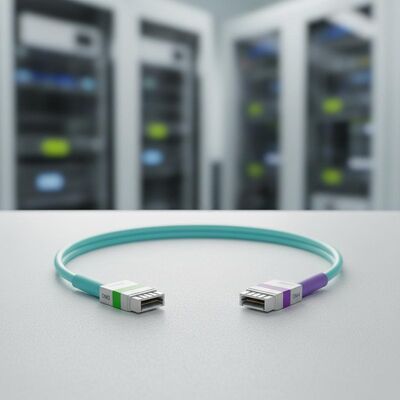

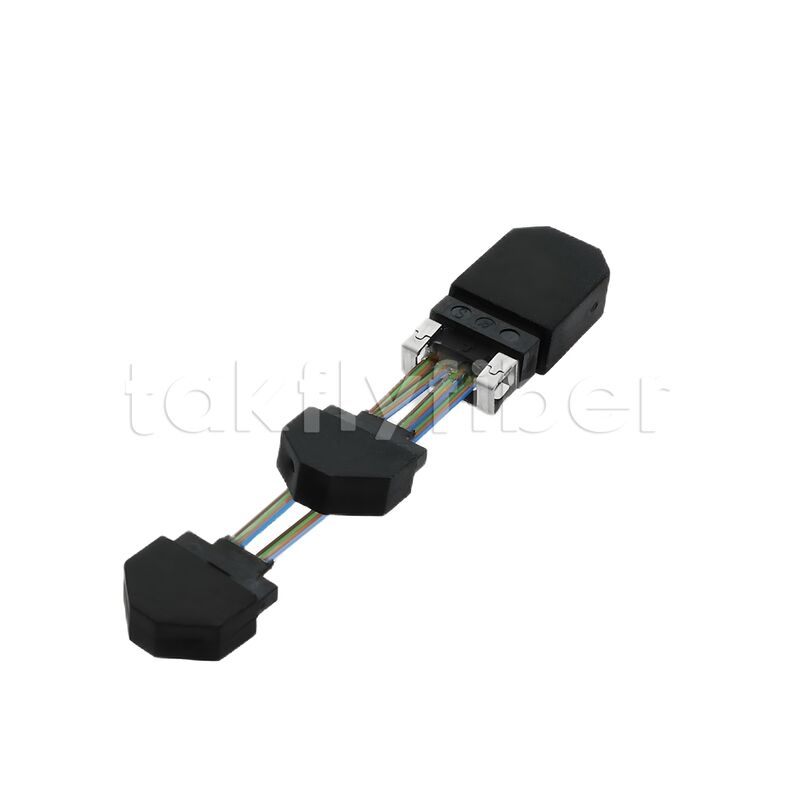

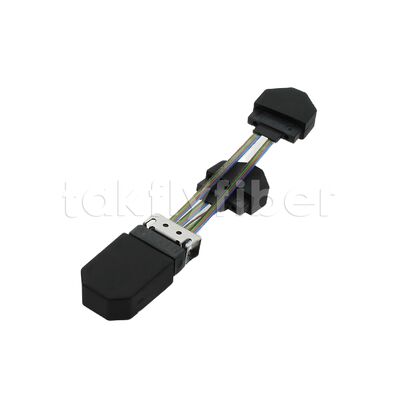

MT-2 Mini MT Patchcord, SMG657A, OM3, OM4 for QSFP, QSFP+, QSFP28, 100G PSM4
Takfly's MT-2 Mini MT Patchcord is engineered for parallel optics technology, specifically designed to seamlessly integrate optical modules (QSFP) with external ports. This patchcord ensures efficient signal transmission within various optical modules including QSFP, QSFP+, QSFP28, 100G PSM4, QSFP-DD, Micro QSFP, OSFP, CXP, CFP, CDFP, and other parallel optics modules, enhancing overall network performance.
Key Features
- Superior Performance: Low insertion loss less than 0.35dB with high stability ensures reliable signal transmission and enhanced network efficiency
- Precise Fit: Precision-engineered with tight length tolerance of L+/-0.15mm for secure, exact connections every time
- Customization Flexibility: Extensive MT patchcord series fully customizable to meet unique network requirements
- Standards Compliance: Adheres to highest industry standards including GR-1209, GR-1221, and RoHS for guaranteed reliability
Applications
Compatible with QSFP, QSFP+, QSFP28, 100G PSM4, QSFP-DD, Micro, OSFP, CXP, CFP, CDFP and other parallel transmission optical transceiver modules. Supports OEM/ODM matching for internal micro connection applications of various optical modules above 200G.
Technical Specifications
| Item | Specification |
|---|---|
| Connector A | MT insert with guide pin |
| Connector B | MT pin |
| Fiber shape | Ribbon / loose fiber |
| Number of cores | 8F/12F/16F/24F |
| Optical fiber model | OM2, OM3, OM4, OM5; OS1, OS2 |
| Length | 20~50mm Optional |
| Length tolerance | +0.3/-0mm~+0.5/-0mm |
Quality Assurance: 100% testing for insertion loss, return loss, end face test, 3D test and polarity test before shipping.
Why Choose Takfly
- More than 25 years manufacturing experience in fiber optic products
- More than 450 assembly workers with 6+ years experience
- More than 10 R&D Engineers
- 16 sets of Germany imported injection machines and 16 production lines
- More than 30 sets of testing machines: OTDR, 3D, VFL, IL&RL test instruments; tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
- OEM branding accepted
- Regular exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
- Main Cooperated partners: Nvidia, Google, Vodafone, Telefonica, Orange, Movistar, etc.
Quality Control Process
- Spot check raw material incoming inspection before production
- Full inspection after every individual process completion
- Full inspection of production half-done stages
- Full inspection of finished products before packing
- Spot check before shipping
Delivery Information
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging: Plastic bag, carton and pallet options available according to your requirements
With over 10 years of professional experience in fiber optic products at Takfly, our team is ready to assist with your specific requirements. Contact us today to discuss your fiber optic product needs.
