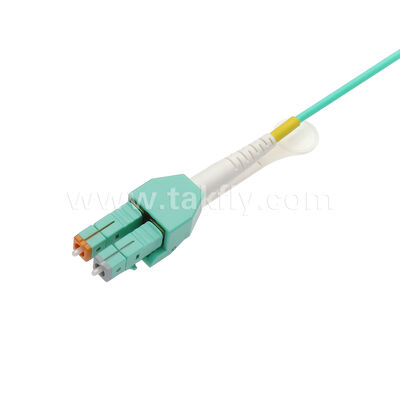

LC UPC to LC UPC Uniboot Duplex BIF Fiber Optic Patch Cable Patchcord OM3 Multimode LSZH 2.0mm
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | DF/OEM/Nuetral |
| 証明: | CE/ROHS/REACH/ISO9001/ISO14001 |
| モデル番号: | TK-UPC-2.0-1M-LCP-LCP-SM-OM3-XXX |
お支払配送条件:
| 最小注文数量: | 100個 |
|---|---|
| 価格: | US$0.01~3.99/PC |
| パッケージの詳細: | 輸出標準梱包 |
| 受渡し時間: | 5~9 営業日 QTY に依存する |
| 支払条件: | ウェスタンユニオン,T/T,MoneyGram/Paypal |
| 供給の能力: | 10000個/日 |
|
詳細情報 |
|||
| 製品名: | LC UPC から LC UPC Uniboot デュプレックス BIF 光ファイバーパッチケーブルパッチコード OM3 マルチモード LSZH 2.0mm | インタークション損失: | ≤0.2dB |
|---|---|---|---|
| リターンロス: | PC MM ≧ 30dB | ファイバーの種類: | OM3 |
| 直径: | 2.0mm | コネクタの種類: | パソコン |
| ジャケット素材: | LSZH/PVC/OFNR/OFNP | 色: | アクア、またはカスタマイズされた |
| 波長: | 850/1310nm | 長さ: | 1Mまたはカスタマイズ |
| 納期: | -20℃～70℃ | 繊維径: | 9/125 |
| 学年: | テレコムグレード | 証明書: | CE/ROHS/REACH |
| 生産能力: | 10000個/日 | ||
製品の説明
LC UPC to LC UPC Uniboot Duplex BIF Fiber Optic Patch Cable Patchcord OM3 Multimode LSZH 2.0mm
LC UPC to LC UPC Uniboot Duplex BIF Fiber Optic Patch Cable Patchcord Description:
Takfly uniboot design meet the high-density space requirements. Uniboot assemblies provide a single boot design integrated into the connector and clip design. The uniboot design allows one cable to carry two fibers, reducing cable congestion during routing, and combines modularity, flexibility, and ease of insertion and removal from connectivity. The bend insensitive fibre features ultrabendable performance, which can greatly reduce outages and degradations in systems caused by severe bending problems.
LC UPC to LC UPC Uniboot Duplex BIF Fiber Optic Patch Cable Patchcord Patchcord Specifications:
|
Connector Type |
Standard Clip LC to LC |
Polish Type |
UPC to UPC |
|
Fiber Count |
2 Fibers |
Fiber Grade |
Bend Insensitive Fiber |
|
Fiber Mode |
OM3 50/125μm |
Wavelength |
850/1300nm |
|
Flame Rating |
Riser (OFNR) |
Cable Outside Diametre (OD) |
2.0mm |
|
Polarity |
A (Tx) to B (Rx) |
Tensile Strength |
60/100N (Long/Short Term) |
|
Min. Bend Radius (Optical Fiber) |
7.5mm |
Min. Bend Radius (Fiber Cable) |
20/10D (Dynamic/Static) |
|
Insertion Loss |
≤0.2dB |
Return Loss |
≥30dB |
|
Attenuation at 850nm |
≤3.5dB/km |
Attenuation at 1300nm |
≤1.5dB/km |
|
Operating Temperature |
-10 to 70°C (14 to 158℉) |
Storage Temperature |
-20 to 70℃ (-4 to 158℉) |
LC UPC to LC UPC Uniboot Duplex BIF Fiber Optic Patch Cable Patchcord Applications:
- CATV
- Telecommunication networks
- Active device termination
- Local area networks(LANS)
- Data processing networks
- Test equipment
- Wide area networks(WANS)
LC UPC to LC UPC Uniboot Duplex BIF Fiber Optic Patch Cable Patchcord Features:
• Uniboot with a Single Housing
• High back reflection loss
• Stable capability and high reliability
• Excellent mechanical capability
• PVC jacket as default
• An ideal solution for high-speed data transmission
• 100% inspected for optical characteristics before shipment

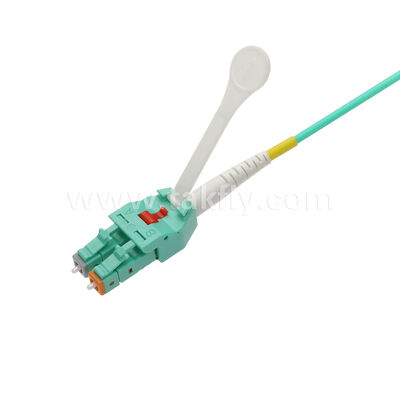

Fiber Optic Patchcord Picture
- How to order Optical fiber patch cord
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
With more than 10 years of sales experience and shipping experience in optical fiber products, I have helped more than 127 customers to expand their business and increase sales, and believe we can provide you with professional guidance, help you save time and money, increase your sales.
