Elite Low IL MPO MTP Fiber Connector with Pull Tab Fiber Optical Breakout Cable Fiber Optic Patchcord/Optical Fiber Patch Cable/Optical Fiber Trunk Cable/Optic Fiber Fanout Cable for High Density
商品の詳細:
| 起源の場所: | 深セン、中国 |
| ブランド名: | OEM |
| 証明: | CE/ROHS/CPR/REACH/ISO9001/ISO14001 |
| モデル番号: | MPO MTP |
お支払配送条件:
| 最小注文数量: | 1 |
|---|---|
| 価格: | USD10.00-100.00/Piece |
| パッケージの詳細: | カートン箱を使って |
| 支払条件: | T/T、ウェスタンユニオン、ペイパル |
|
詳細情報 |
|||
| ファイバーコネクタ: | MPO、MTP、MT、SC、LC、FC、STなど | ファイバーコア: | シングル、デュプレックス、4、8、12、24 心など |
|---|---|---|---|
| ファイバーモード: | SM(G655,G652,G657)、MM(OM1,OM2,OM3,OM4,OM5) | 研磨タイプ: | PC、UPC、APC |
| 性別: | 男性、女性 | ケーブル直径: | 250um、0.9mm、2.0mm、3.0mmまたはカスタマイズされた |
| ジャケット素材: | PVC、LSZH、OFNR、OFNPなど | ケーブル長: | 0.5M、1M、3M、5Mまたはカスタマイズされた |
| ケーブルの偏性: | タイプ A、タイプ B、タイプ C またはカスタマイズ | ケーブルの色: | イエロー、アクア、バイオレット、ライムまたはカスタマイズされた |
| ハイライト: | Low IL MPO MTP fiber connector,MPO MTP fiber optic breakout cable,high density fiber optic patchcord |
||
製品の説明

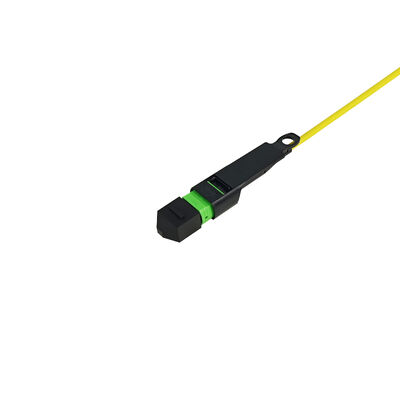

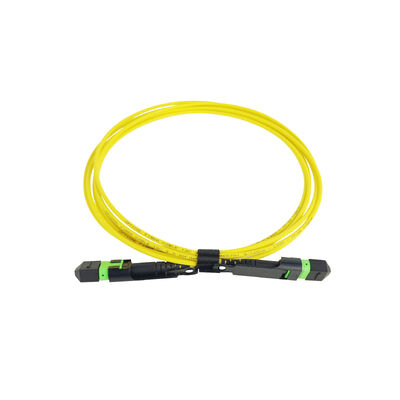

Elite Low IL MPO MTP Fiber Connector with Pull Tab Fiber Optical Breakout Cable
High-density connectivity solution featuring MPO/MTP to LC/SC/FC/ST fiber optic patch cords, breakout cables, trunk cables, and fanout cables. Designed for demanding applications requiring reliable optical performance.
Technical Specifications
| Parameter | Standard SM | Low Loss (Elite) SM | Standard MM | Low Loss MM |
|---|---|---|---|---|
| Insertion Loss (Typical) | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Insertion Loss (Maximum) | 0.75dB | 0.35dB | 0.60dB | 0.35dB |
| Return Loss | ≥60 for APC (8° Angle Polish) ≥20 for PC |
≥50 for PC | -- | -- |
| Male/Female | Male: With Pins, Female: Without Pins | |||
| Tensile Strength | ≤0.3 (Max 66N) | |||
| Vibration | ≤0.3 (10 ~ 55Hz) | |||
| Thermal Cycle | ≤0.3 (-40 ~ 75℃, 21 Cycles) | |||
Our Services
- Order Inquiry: Always online to guarantee prompt reply to clients
- Order Production: Close coordination with production department to ensure accurate delivery times
- Pre-Shipment Quality Control: Double-check order quantity, packaging, and carton strength to prevent damage
- Post-Shipment Tracking: Continuous monitoring of shipping status with regular client updates
- Shipping Options: DHL, UPS, FEDEX, TNT, EMS, SEA, AIR, and more
Have questions? Please send an inquiry NOW! Welcome & Just Do It!
