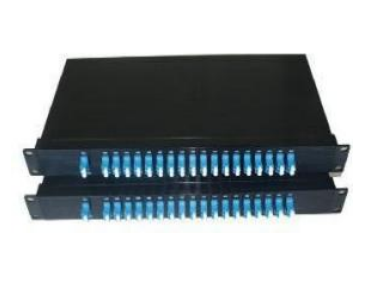

100GHz Dense Wavelength Division Multiplexer
商品の詳細:
| 起源の場所: | 中国、深Shenzhen |
| ブランド名: | DF/OEM/Nuetral |
| 証明: | CE/ROHS/REACH/ISO9001/ISO14001 |
| モデル番号: | 100GHz密度の波長分割マルチプレクサー |
お支払配送条件:
| 最小注文数量: | 交渉可能 |
|---|---|
| 価格: | negotiable denpend on QTY |
| パッケージの詳細: | ブリスターボックス+カートン |
| 受渡し時間: | 5~9 営業日 QTY に依存する |
| 支払条件: | ウェスタンユニオン,T/T,MoneyGram/Paypal |
| 供給の能力: | 1000pcs/日 |
|
詳細情報 |
|||
| 製品名: | 100GHz密度の波長分割マルチプレクサー | 動作波長（nm）: | ITU 100 GHzグリッド |
|---|---|---|---|
| 中心波長精度(nm): | ±0.05 | チャネル間隔 (GHz) GHz): | 100 |
| 損失を挿入します: | ≤1.6 ≤2.5 ≤3.5 | 分離（dB）: | >30 |
| リターン・ロス（dB）: | >45 | 指向性(dB): | >50 |
| 動作温度: | -5～+75 | 最大許容電力(mW): | 500 |
| パッケージの寸法 (mm): | L140xW100xH15(9CH～18CHモジュール)、19 1Uラック | 保証: | 1年間、永久保守 |
| ファイバーブランド: | コーニング,YOFC,OFS,ドラカ | ||
| ハイライト: | 100GHz DWDM fiber optic multiplexer,dense wavelength division multiplexer with warranty,fiber optic patchcord DWDM module |
||
製品の説明
100GHz Dense Wavelength Division Multiplexer
Applications
- Channel Add/Drop
- DWDM Network
- Fiber Optical Amplifier
Key Features
- Low Insertion Loss
- Wide Pass Band
- High Channel Isolation
- High Stability and Reliability
Technical Specifications
| Parameter | 4 Channel | 8 Channel | 16 Channel |
|---|---|---|---|
| Channel Wavelength(nm) | ITU 100 GHz Grid | ||
| Center wavelength Accuracy(nm) | ±0.05 | ||
| Channel Spacing (GHz) | 100 | ||
| Channel Passband (@-0.5dB bandwidth) (nm) | ≥0.22 | ||
| Insertion Loss | ≤1.6 | ≤2.5 | ≤3.5 |
| Channel Uniformity | ≤0.6 | ≤1.0 | ≤1.5 |
| Channel Ripple | 0.3 | 0.3 | 0.3 |
| Isolation - Adjacent | N/A | >30 | >30 |
| Isolation - Non-adjacent | N/A | >40 | >40 |
| Insertion Loss Temperature Sensitivity (dB/℃) | ≤0.005 | ||
| Wavelength Temperature Shifting(℃) | <0.002 | ||
| Polarization Dependent Loss(dB) | <0.1 | ||
| Polarization Mode Dispersion(PS) | <0.1 | ||
| Directivity(dB) | >50 | ||
| Return Loss(dB) | >45 | ||
| Maximum Power Handling(mW) | 500 | ||
| Operating Temperature(℃) | -5~+75 | ||
| Storage Temperature(℃) | -40~85 | ||
Above specifications are for device without connector.
Product Information
| Configuration | Channel No. | Channel | Pigtail Type | Fiber length | Dimension (mm) | Connector |
|---|---|---|---|---|---|---|
| M=Mux D=Demux | 04=4 Channel 08=8 Channel 16=16 Channel N=N Channel |
C20=1561.42nm C21=1560.61nm |
0=250um 1=900um 2=2.0mm 3=3.0mm |
1=1m 2=1.5m 3=others |
1=L100xW80xH10 2=L140xW100xH15 3=19 1U Rack |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=others |
