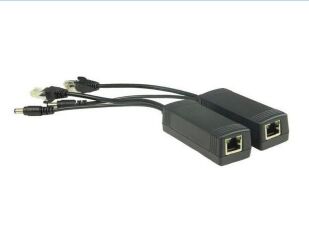

DF-PS-G 10/100/1000M PoE Splitter Cable (13W)
商品の詳細:
| 起源の場所: | 中国、深Shenzhen |
| ブランド名: | DF/OEM/Nuetral |
| 証明: | CE/ROHS/REACH/ISO9001/ISO14001 |
| モデル番号: | DF-PS-G 10/100/1000M PoE スプリッター ケーブル (13W) |
お支払配送条件:
| 最小注文数量: | 交渉可能 |
|---|---|
| 価格: | negotiable denpend on QTY |
| パッケージの詳細: | ブリスターボックス+カートン |
| 受渡し時間: | 5~9 営業日 QTY に依存する |
| 支払条件: | ウェスタンユニオン,T/T,MoneyGram/Paypal |
| 供給の能力: | 1000pcs/日 |
|
詳細情報 |
|||
| 製品名: | DF-PS-G 10/100/1000M PoE スプリッター ケーブル (13W) | ネットワーク媒体: | UTP Cat.5以上(≤100メートル) 伝送帯域幅: 10/100/1000M |
|---|---|---|---|
| ネットワークプロトコル: | MDI 経由の IEEE 802.3af DTE 電源 | コネクタ: | 1* PoE RJ45 入力ポート、1* RJ45 出力ポート、1* DC 電源入力ポート (5.5x2.1mm) |
| 出力電流: | 1.1A | 出力電力: | 13W |
| 入力電圧: | 37-57V/DC | 使用温度: | -20~+55℃; |
| 保管温度: | -20~+75℃; | ストレージ湿度: | 10% ～ 95%、結露なきこと。 |
| 保証: | 1年間、永久保守 | ファイバーブランド: | コーニング,YOFC,OFS,ドラカ |
| ハイライト: | PoE splitter cable 13W,Gigabit PoE splitter 10/100/1000M,Ethernet PoE splitter with warranty |
||
製品の説明
The DF-PS-G 10/100/1000M PoE Splitter Cable is a cost-effective and highly reliable remote PoE PD device based on the standard IEEE802.3af. It splits power and data transmitted through Ethernet cable, providing both power and data connectivity to devices without built-in PoE functionality when connected to a PoE Switch or PSE Injector.
With an output voltage of 12V and when equipped with PoE power supply devices, it flexibly expands security surveillance and wireless network capabilities without the limitations of power line layout constraints.
The transformer isolated design for both input and output stages of the DF-PS-G power circuit enhances anti-jamming capability and circuit protection. It effectively reduces PoE Switch abnormal power supply issues caused by common ground problems.
Meeting IEEE802.3af standards, it's compatible with both End-span (1,2+ 3,6-) and Mid-span (4,5+ 7,8-) power supply methods. Features include 13W output power, low ripple, over 82% high efficiency, 1500V port isolation protection, and protection against short circuits, over-current, and over-temperature conditions. The 1-to-2 design works with devices supporting external PoE and effectively simplifies project wiring and maintenance.
- 1× 8-Pin RJ45 female input port + 1× RJ45 male output port + 1× DC (5.5×2.1mm) male output port
- 1× 10/100/1000Mbps RJ45 port
- Support for IEEE802.3af standard
- PoE Input Voltage: 44-57V
- Output voltage: 12V (Default)
- Output power: 13W
- Circuit protection for connected devices
- Top-quality design for stable and reliable performance
- 25+ years of manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years of experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany-imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
