SC/APC Side Shutter Adapter with Flange LSZH/PVC 2M
商品の詳細:
| 起源の場所: | 中国、深Shenzhen |
| ブランド名: | DF/OEM/Nuetral |
| 証明: | CE/ROHS/REACH/ISO9001/ISO14001 |
| モデル番号: | TK-PC-48F-SC-OS2-50M |
お支払配送条件:
| 最小注文数量: | 交渉可能 |
|---|---|
| 価格: | negotiable denpend on QTY |
| パッケージの詳細: | ブリスターボックス+カートン |
| 受渡し時間: | 5~9 営業日 QTY に依存する |
| 支払条件: | ウェスタンユニオン,T/T,MoneyGram/Paypal |
| 供給の能力: | 1000pcs/日 |
|
詳細情報 |
|||
| 製品名: | フランジ付きSC/APCサイドシャッターアダプター | モード: | SM/mm |
|---|---|---|---|
| インタークション損失: | SM≤0.2dB; MM≤0.2dB | 交尾耐久性 (500タイマー): | 追加損失≤0.1dB |
| 温度～安定性: | 追加損失≤0.2dB | 抗張力: | 0.9mm >5N |
| 動作温度: | -40℃〜+85℃ | 保管温度: | -40℃〜+85℃ |
| ファイバーブランド: | コーニング,YOFC,OFS,ドラカ | ||
| ハイライト: | SC/APC fiber optic adapter with flange,LSZH side shutter fiber adapter,2M PVC SC/APC adapter |
||
製品の説明

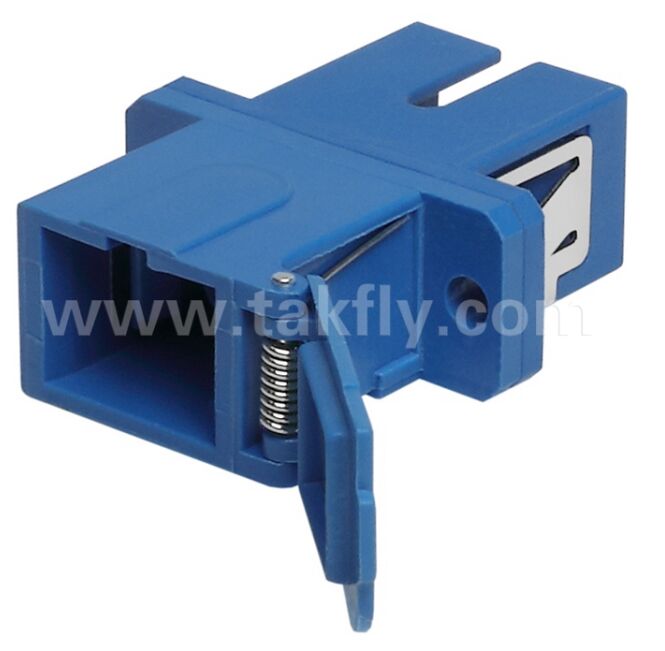

SC/APC Side Shutter Adapter with Flange LSZH/PVC 2M
Fiber optic adapter is the component applicable for the connection between fiber optic connectors, which can help couple the output power from the transmitting fiber into the receiving fiber at the maximum. Moreover, it's also mainly used for the connection between the cables or the cables and the equipment as well. SC adapters from TAKFLY are featured with easy installation, low insertion loss, good interchangeability and high & low temperature resistance etc.
Adapter Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
- Broadband
- FTTH
Adapter Features
- Single mode and Multimode
- Zirconia sleeves or Phosphor bronze sleeves
- Available without flanges or with flange for duplex, saving panel space
- NTT standard compatible
- SC2 8Port high density for patch panel mount applications
- Meet JIS5974 and bellcore GR-326 standard
- Compliant with IEC874-14 & IEC874-19
- All parts compliant with ROHS
Adapter Specifications
| Product | SC Adapter |
|---|---|
| Mode | SM | MM |
| Insertion Loss | ≤0.2dB | ≤0.2dB |
| Mating Durability(500 timer) | Additional Loss≤0.1dB |
| Temperature Stability | Additional Loss≤0.2dB |
| Operating Temperature | -40℃~+85℃ |
| Storage Temperature | -40℃~+85℃ |
Product Picture
Why Choose TAKFLY
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
FAQ
Q1: How can I get your catalogue and price list?
A1: Please let us know your email or contacts from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quality problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Furthermore we will also take action to improve the quality in future
Q6: What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
Q7: What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10: Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
If you're interested in our products or have any doubt, feel free to contact me at any time!
