EC-EC Duplex Fiber Optic Patch cord UPC SM PVC/LSZH/TPU
商品の詳細:
| 起源の場所: | 中国、深Shenzhen |
| ブランド名: | DF/OEM/Nuetral |
| 証明: | CE/ROHS/REACH/ISO9001/ISO14001 |
| モデル番号: | TK-SC/UPC 0.9mm |
お支払配送条件:
| 最小注文数量: | 交渉可能 |
|---|---|
| 価格: | negotiable denpend on QTY |
| パッケージの詳細: | ブリスターボックス+カートン |
| 受渡し時間: | 5~9 営業日 QTY に依存する |
| 支払条件: | ウェスタンユニオン,T/T,MoneyGram/Paypal |
| 供給の能力: | 1000pcs/日 |
|
詳細情報 |
|||
| 製品名: | EC-EC パッチコード | インタークション損失: | ≤0.3dB |
|---|---|---|---|
| 返品損失: | UPC SM ≥50dB、APC SM ≥ 60dB、UPC MM ≥ 35dB | ケーブルの直径: | 2.0、3.0 またはカスタマイズされた (Simplex/duplex) |
| ファイバーの種類: | SM (G652、G655、G657) MM (OM1-OM5) | ジャケット素材: | PVC、LSZH、TPU |
| 色: | 青または他 | ケーブル材料: | ステンレスチューブ、PVC/LSZH |
| 半径を曲げます: | 10D/20D | 動作温度: | -20℃〜70℃ |
| 繊維径: | 50/125 | 抗張力: | >70N |
| 学年: | テレコムグレード | 証明書: | CE/ROHS/REACH |
製品の説明

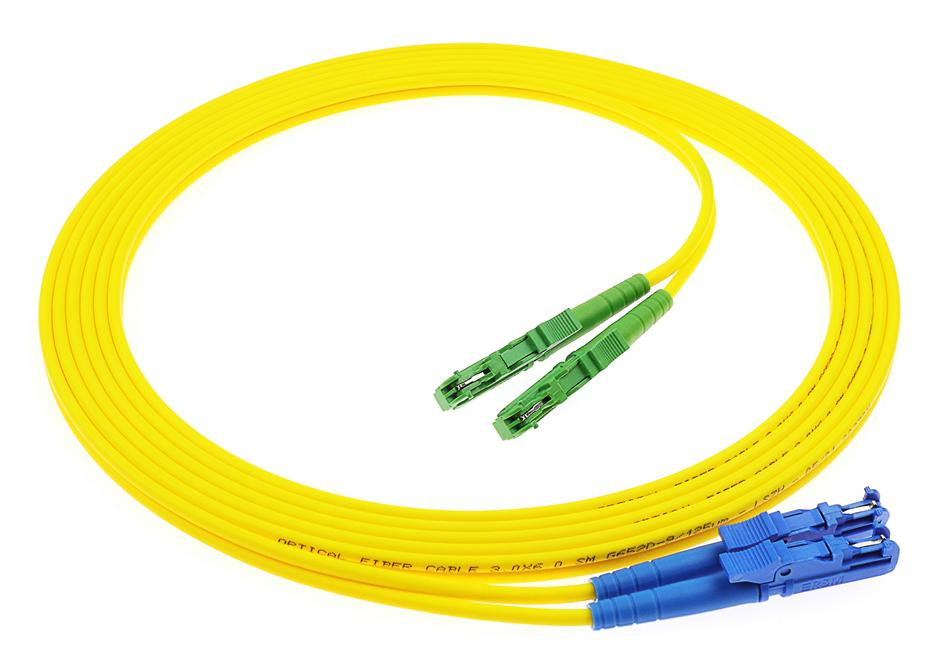

EC-EC Duplex Fiber Optic Patch cord UPC SM PVC/LSZH/TPU
Describe:
Fiber optic patch cord is the cable with both ends terminated with fiber optic connectors, which realizes the connection between optic networking equipment and equipment, and equipment and patch cords. Easy operation and convenience make it indispensable as one of the passive products for optic networking construction.
Application:
- CATV
- Telecommunication networks
- Active device termination
- Local area networks(LANS)
- Data processing networks
- Test equipment
- Wide area networks(WANS)
Features:
- Connector type SC, LC, FC, ST, E2000 etc. is optional
-
Good exchange ability
-
Good durability
-
High temperature stability
-
Standard:Telcordia GR-326-CORE
Parameter:
Why choose TAKFLY - Advantages as follows:
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products;
- More than 500 assembly workers with 5 years experienced;
- More than 10 R & D Engineers;
- 16 Sets Germany imported Injection Machine and 16 Production Lines;
- More than 30 sets of Testing Machines: OTDR, 3D, VFL, IL & RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable.
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control:
- Spot check the raw material incoming inspection before production;
- Fully check after every individual process finished;
- Fully check production half done;
- Fully check the finished products before packing;
- Spot check before shipping;
Delivery:
- Samples: 1-3 working days.
- Mass Production Order: 3-7 working days.
- Packaging: Plastic Bag, Carton and Pallet are available according to your request.
If you're interested in our products or have any doubt, feel free to contact me at any time!
